M23 Hybrid Contacts | Crimp Socket | Crimp Pin

Part NumberimageType of Contact
Crimp Range
S7.010.940.801Hybrid Crimp pin signal 0.8 mm turned0.08 – 0.34mm²
S7.010.941.001M23 Power Connector Pin Contact | S7.010.941.001Crimp Pin 1 mm Machined0.14 - 1 mm2 AWG 26 - AWG 17
S7.010.941.002M23 Power Connector Socket Contact | S7.010.941.002Crimp Socket 1 mm Machined0.14 - 1 mm2 AWG 26 - AWG 17
S7.010.941.021M23 Power Connector Pin Contact | S7.010.941.021Crimp Pin 1 mm Machined0.75 - 1.5 mm2 AWG 18 - AWG 16
S7.010.941.022M23 Power Connector Socket Contact | S7.010.941.022Crimp Socket 1 mm Machined0.75 - 1.5 mm2 AWG 18 - AWG 16
S7.010.942.001M23 Power Connector Pin Contact | S7.010.942.001Crimp pin 2mm, machined0.75 - 2.5 mm2 AWG 18 - AWG 14
S7.010.942.002M23 Power Connector Socket Contact | S7.010.942.002Crimp Socket 2 mm Machined0.75 - 2.5 mm2 AWG 18 - AWG 14
S7.010.942.011M23 Power Connector Pin Contact | S7.010.942.011Crimp Pin 2 mm Machined2.5 - 4 mm2 AWG 14 - AWG 12
S7.010.942.012M23 Power Connector Socket Contact | S7.010.942.012Crimp Socket 2 mm Machined2.5 mm2- 4.0 mm2AWG 14 - AWG 12
S7.010.942.021Hybrid Crimp pin signal 2 mm turned0.75 – 2.5mm²

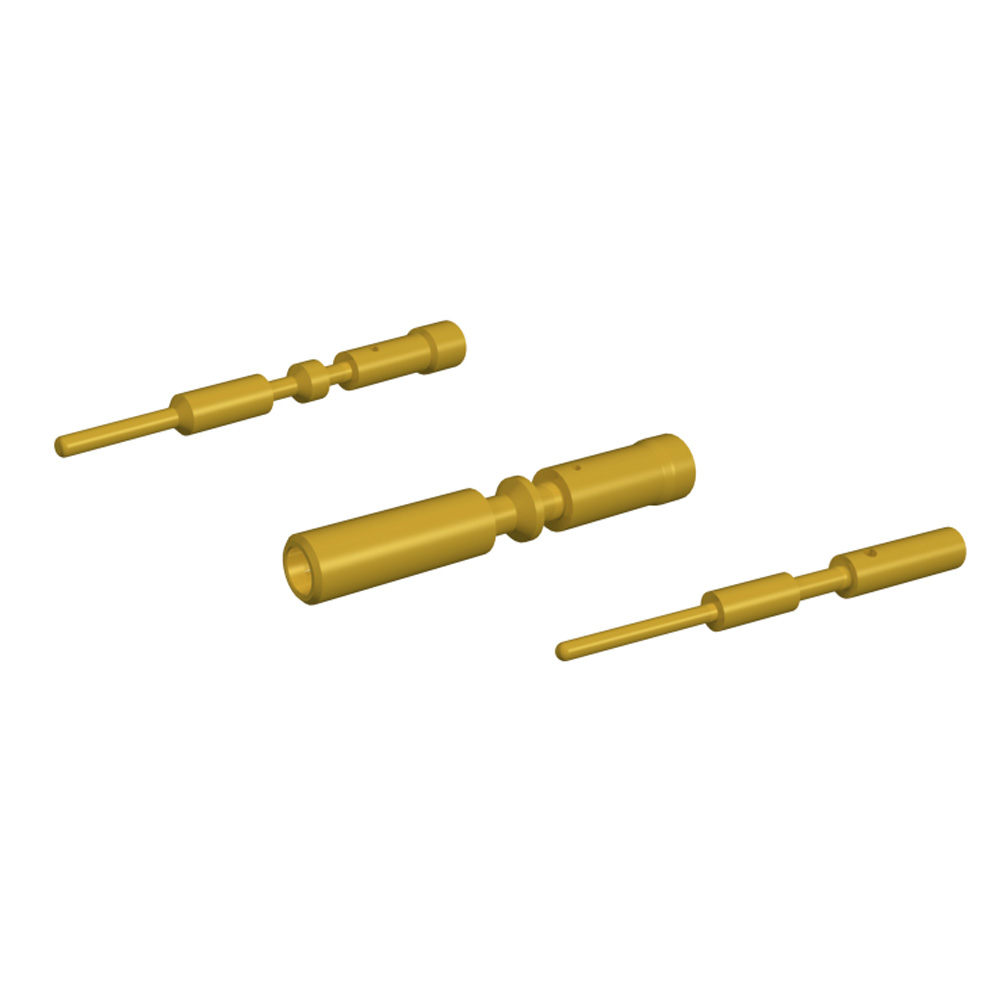

S7.010.942.022Hybrid Crimp Socket Power 2 mm Turned0.75 – 2.5mm²
S7.010.942.023Hybrid Crimp Pin Power 2 mm Turned2.5 – 4mm²
S7.010.942.024Hybrid Crimp Socket Power 2 mm Turned2.5 – 4mm²
S7.010.960.611M40 Hybrid Crimp Data Pin 0.6 mmHybrid Crimp Data Pin 0.6 mm, machined0.05 - 0.34 mm2 (AWG 30 - 22)
S7.010.960.612M40 Hybrid Crimp Data Socket 0.6 mmHybrid Crimp Data Socket 0.6 mm, machined0.05 - 0.34 mm2 (AWG 30 - 22)
S7.010.980.602Insert 20-pole (4 x 2) + 12 Socket Contact | S7.010.980.602Crimp Socket 0.6 mm Machined0.08 mm2- 0.34 mm2
S7.010.980.643M23 Power Connector Pin Contact | S7.010.980.643Crimp Pin 1 mm Machined0.14 - 1 mm2 AWG 26 - AWG 17
S7.010.980.812Insert 8-pole (4+3+PE 630V) Socket Contact | S7.010.980.812Crimp Socket 0.8 mm Machined0.08 mm2 - 0.34 mm2 AWG 28 - AWG 22
S7.015.961.001M40 Hybrid Crimp Data / Signal Pin 1 mmHybrid Crimp Data / Signal Pin 1 mm, machined0.14 - 1 mm2 (AWG 26 - 17)
S7.015.961.002M40 Hybrid Crimp Data / Signal Socket 1 mmHybrid Crimp Data / Signal Socket 1 mm, machined0.14 - 1 mm2 (AWG 26 - 17)
