Sealcon #: S3120055963PGU
Size: L9.84" x W6.88" x D5.90" (250 x 175 x 150mm)
Material: Polycarbonate
Ensto Enclosures: Cubo S Enclosure
Ensto #: SPCK182515G.U

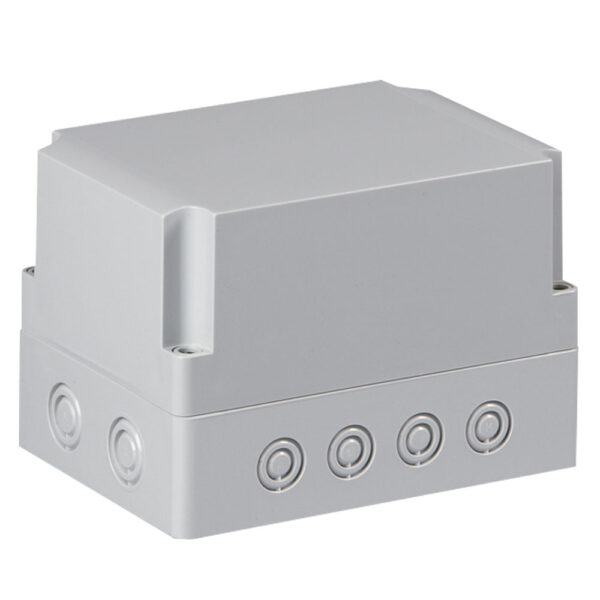

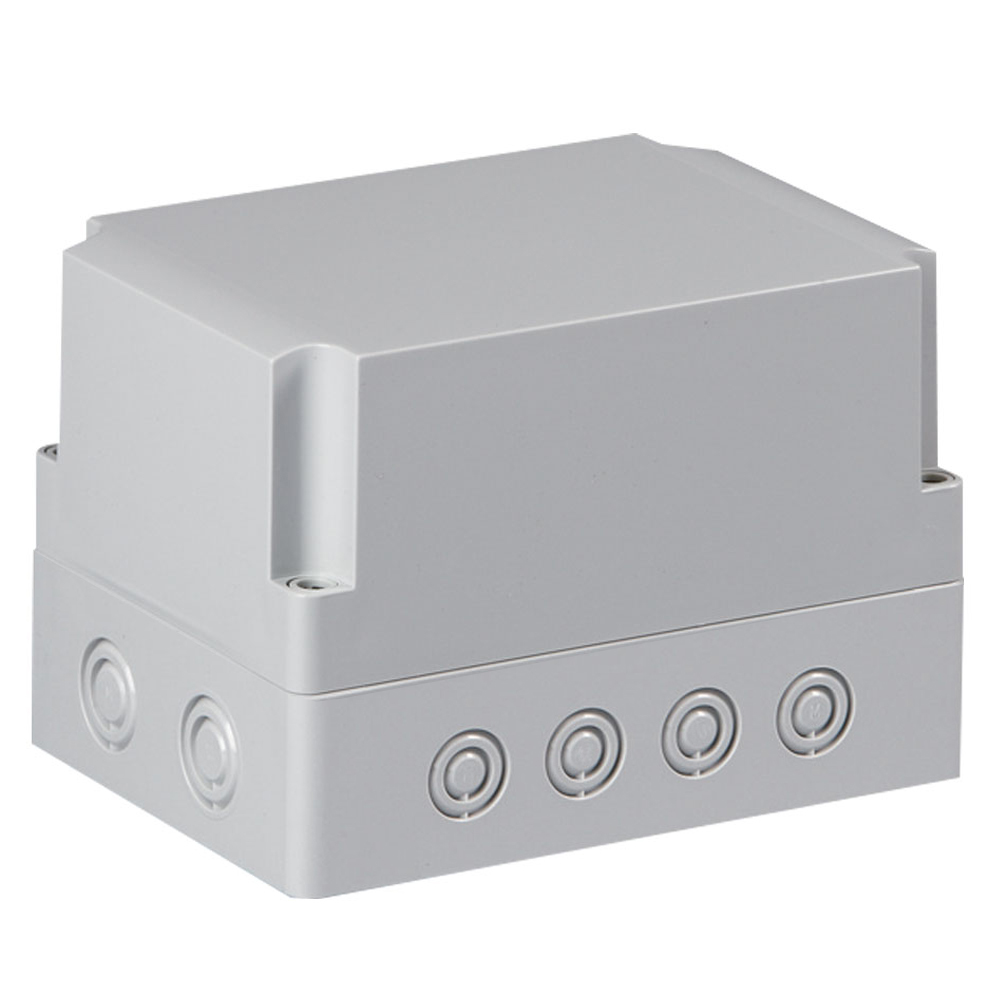

Polycarbonate Enclosure with PG Knockouts and Gray Cover.
Knockouts A: 6 x PG 9 / PG 13.5
Knockouts B: 2 x PG 16 / PG 21 + 2 x PG 9 / PG 16
Assembly and machining services of your enclosures are available on request.
Drawings with additional dimensions can be furnished on request.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Features
Series S Enclosure in brief:
- Available with plain sides or knockouts
- Available in 36 sizes, two base depths (25 and 50 mm) and 5 different cover heights
- Cover and cover screws equipped with sealing holes
- Slots in the base for printed circuit boards
Contents of the product package:
- Enclosure base
- Cover
- Cover screws
- Mounting screws
-
UL File no:
E189312
UL category:
NITW, NITW7
Environmental type (UL):
4, 4x, 12, 13, 6
Environmental type (cUL):
4, 4x, 12, 6
Outdoor suitability:
UL 746C (f1) rated material
Insulation:
Class ||Impact
IK08 (-25°C...+35°C)Operating TemperatureFire Resistance
-40C° to 80C° (-40°F to 176°F)
UL746C 5V
CE approval CE (Certified European Approval)
Restriction of Hazardous Substances in Electrical and Electronic Equipment
UL approval UL (Listed Underwriters Laboratories)
cULus
German Lloyd
