M23 Signal Inserts | S7.001.907.104

Sealcon #: S7.001.907.104
Insert 7-pole
Hummel: M 23 Signal Insert, 7-pole
Hummel #: 7.001.907.104

Insert – with Solder Contacts

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page
  • INSERTS

    Part NumberImageAdd to QuoteNumber of PolesRequired ContactsElectrical Data
    S7.001.907.103

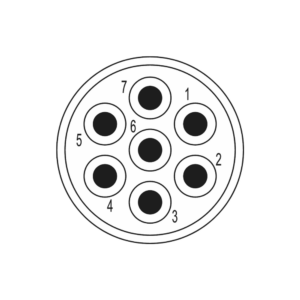

    Insert 7-pole7 x 2 mmNumber of Positions: 7
    Number of Contacts: 7
    Contact-Ø (mm): 2
    Nominal Current1) [A]: 20
    Nominal Voltage2) [V~] degree of protection 33): 300
    Test Voltage (Breakdown Voltage) 4) [V~]: 2500
    Insulation Resistance [MΩ]: > 1010
    Max. Contact Resistance [mΩ]: 3
    S7.001.907.104
    Insert 7-pole7 x 2 mmContact-Ø[mm] 2
    Nominal current ¹)[A] 20
    Nominal voltage ²)[V˜] 630
    Nominal voltage ²)[V˜] 300
    Test voltage (Breakdown voltage) [V˜] 2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.907.107
    Insert 7-pole7 x 2 mmContact-Ø[mm] 2
    Nominal current ¹)[A] 20
    Nominal voltage ²)[V˜] 630
    Nominal voltage ²)[V˜] 300
    Test voltage (Breakdown voltage) [V˜] 2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.907.108
    Insert 7-pole7 x 2 mmContact-Ø[mm] 2
    Nominal current ¹)[A] 20
    Nominal voltage ²)[V˜] 630
    Nominal voltage ²)[V˜] 300
    Test voltage (Breakdown voltage) [V˜] 2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.907.118
    Insert 7-pole7 x 2 mmContact-Ø[mm] 2
    Nominal current ¹)[A] 20
    Nominal voltage ²)[V˜] 630
    Nominal voltage ²)[V˜] 300
    Test voltage (Breakdown voltage) [V˜] 2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.907.127
    Insert 7-pole7 x 2 mmContact-Ø[mm] 2
    Nominal current ¹)[A] 20
    Nominal voltage ²)[V˜] 630
    Nominal voltage ²)[V˜] 300
    Test voltage (Breakdown voltage) [V˜] 2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.907.137
    Insert 7-pole7 x 2 mmConnection type PCB assembly
    number of poles 7
    Pole picture 7
    Direction of rotation default
    Solder length 17mm
    Mission Pen
    Color contact insert white
    Material insulating body PA6,
    PBT
    Number of contacts signal 7
    Contact Ø signal 2mm
    Rated current signal 20A
    Rated voltage at pollution level 3 signal 300V~
    Test voltage signal 840V~
    Insulation resistance signal > 10^8 Ω
    max. contact resistance signal 3 mOhm
    Temperature range -40°C to +125°C
    Pollution level 3
    Flammability V-0 (UL 94)
    S7.003.907.101
    Insert 7-pole7 x 2 mmConnection type Crimping
    number of poles 7
    Pole picture 7
    Direction of rotation default
    Mission Pen
    Color contact insert white
    Material insulating body PA6,
    PBT
    Number of contacts signal 7
    Contact Ø signal 2mm
    Rated current signal 20A
    Rated voltage at pollution level 3 signal 300V~
    Test voltage signal 840V~
    Insulation resistance signal > 10^8 Ω
    max. contact resistance signal 3 mOhm
    Temperature range -40°C to +125°C
    Pollution level 3
    Flammability V-0 (UL 94)
    suitable signal contacts 7010902001
    S7.003.907.102
    Insert 7-pole7 x 2 mmConnection type Crimping
    number of poles 7
    Pole picture 7
    Direction of rotation default
    Mission Rifle
    Color contact insert white
    Material insulating body PA6,
    PBT
    Number of contacts signal 7
    Contact Ø signal 2mm
    Rated current signal 20A
    Rated voltage at pollution level 3 signal 300V~
    Test voltage signal 840V~
    Insulation resistance signal > 10^8 Ω
    max. contact resistance signal 3 mOhm
    Temperature range -40°C to +125°C
    Pollution level 3
    Flammability V-0 (UL 94)
    suitable signal contacts 7010902002
