Sealcon #: S7.003.926.102

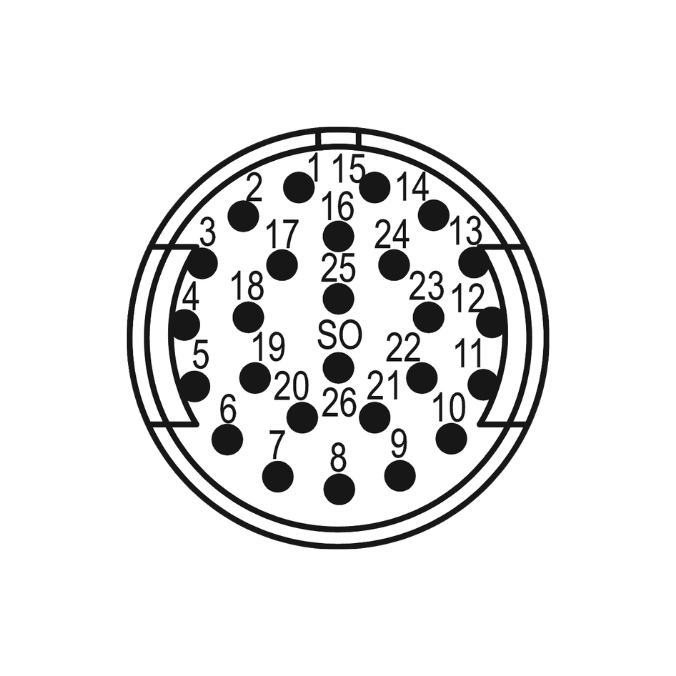

Insert 26-pole
Hummel #: 7.003.926.102
Insert – without Contacts
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog PageINSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data S7.001.926.103
Insert 26-pole 26 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 74V~
Test voltage signal 840V~
Insulation resistance signal 10^8 Ω
max. contact resistance signal 3 mOhmS7.001.926.104
Insert 26-pole 26 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 74V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.001.926.127
Insert 26-pole 26 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 74V~
Test voltage signal 840V~
Insulation resistance signal 10^8 Ω
max. contact resistance signal 3 mOhmS7.003.926.101
Insert 26-pole 26 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 74V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.003.926.102
Insert 26-pole 26 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 74V~
Test voltage signal 840V~
Insulation resistance signal 10^8 Ω
max. contact resistance signal 3 mOhm
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
