Sealcon #: S7.084.909.101

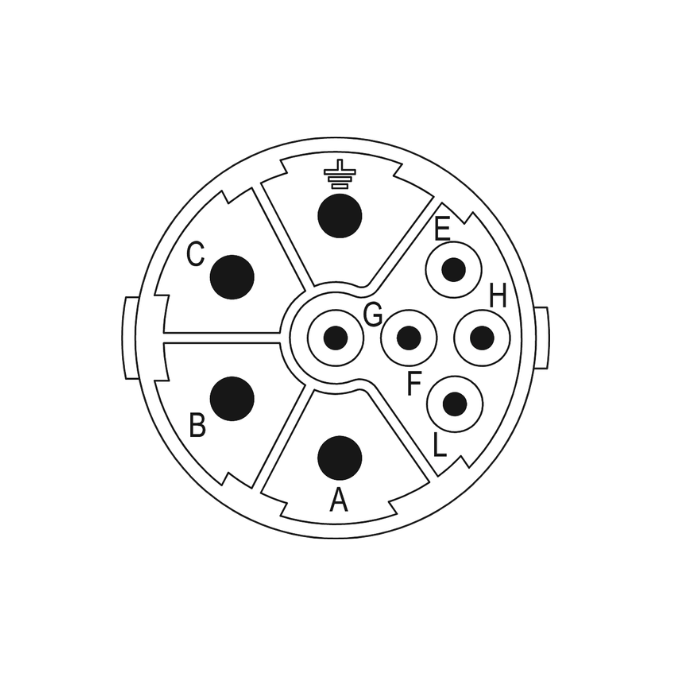

M23 Power Connector Insert Configurations
Hummel #: 7.084.909.101
Twilock-S mating to Intercontec’s/TE SpeedTec compatible.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Features
Twilock-S mating to Intercontec’s/TE SpeedTec compatible.
Twilock-S mating to Intercontec’s/TE SpeedTec compatible.
-
Twilock-S mating to Intercontec's/TE SpeedTec compatible.
• Number of Positions: 5 + 4
• Number of Contacts: 5 | 4
• Contact-Ø (mm): 1 | 2
• Nominal Current1) [A]: 10 | 28
• Nominal Voltage2) [V~] degree of protection 33): 250 | 630
•Test Voltage (Breakdown Voltage) 4) [V~]: 2500 4000
• Operating-Temperature: -40 – 257 °F | -40 – 125 °C
• Mating cycles: > 1000
• Protection: IP 67 / IP 69 K per EN 60 629 (connected)
