M27 Signal Connector – Straight, Female Thread | S7.110.500.000

Sealcon #: S7.110.500.000
(housing only)

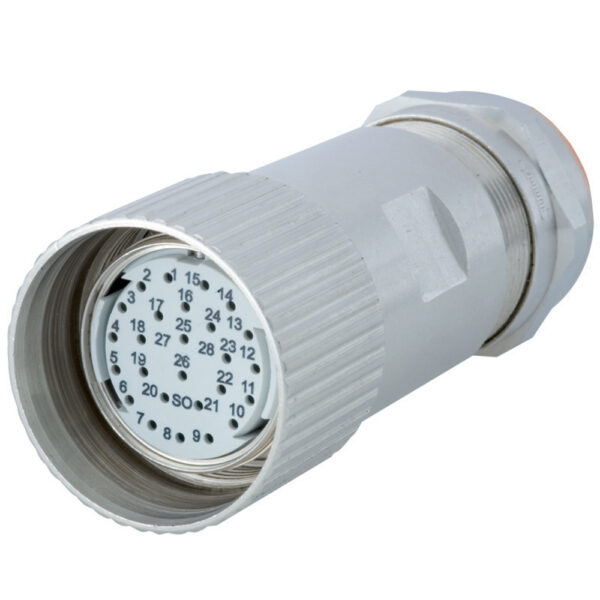

M27 Signal Straight Connector
Cable Range: .28" - .47" (7 - 12 mm)
Hummel: M27 Straight Connector, Female Thread
Hummel #: 7.110.500.000
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
  • Features

    • Three circuits in one connector
    • Ideal for sensors and gauges


  • INSERTS

    Part NumberImageAdd to QuoteNumber of PolesRequired ContactsElectrical Data
    S7.001.926.103
    Insert 26-pole26 x 1 mmContact Ø signal 1 mm
    Rated current signal 8 A
    Rated voltage at pollution level 3 signal 74V~
    Test voltage signal 840V~
    Insulation resistance signal 10^8 Ω
    max. contact resistance signal 3 mOhm
    S7.001.928.103
    Insert 28-pole28 x 1 mmContact Ø signal 1 mm
    Rated current signal 8 A
    Rated voltage at pollution level 3 signal 74V~
    Test voltage signal 840V~
    Insulation resistance signal > 10^8 Ω
    max. contact resistance signal 3 mOhm
  • CONTACTS

    Part NumberImageAdd to QuoteType of ContactCrimp Range
    S7.010.971.001
    Crimp Pin 1 mm Machined0.14 mm2 - 1 mm2AWG 26 - AWG 17
    S7.010.971.002
    Crimp Socket 1 mm Machined0.14 mm2 - 1 mm2AWG 26 - AWG 17
