M27 Signal Connector - Straight, Female Thread | S7.110.600.000

Sealcon #: S7.110.600.000

(housing only)

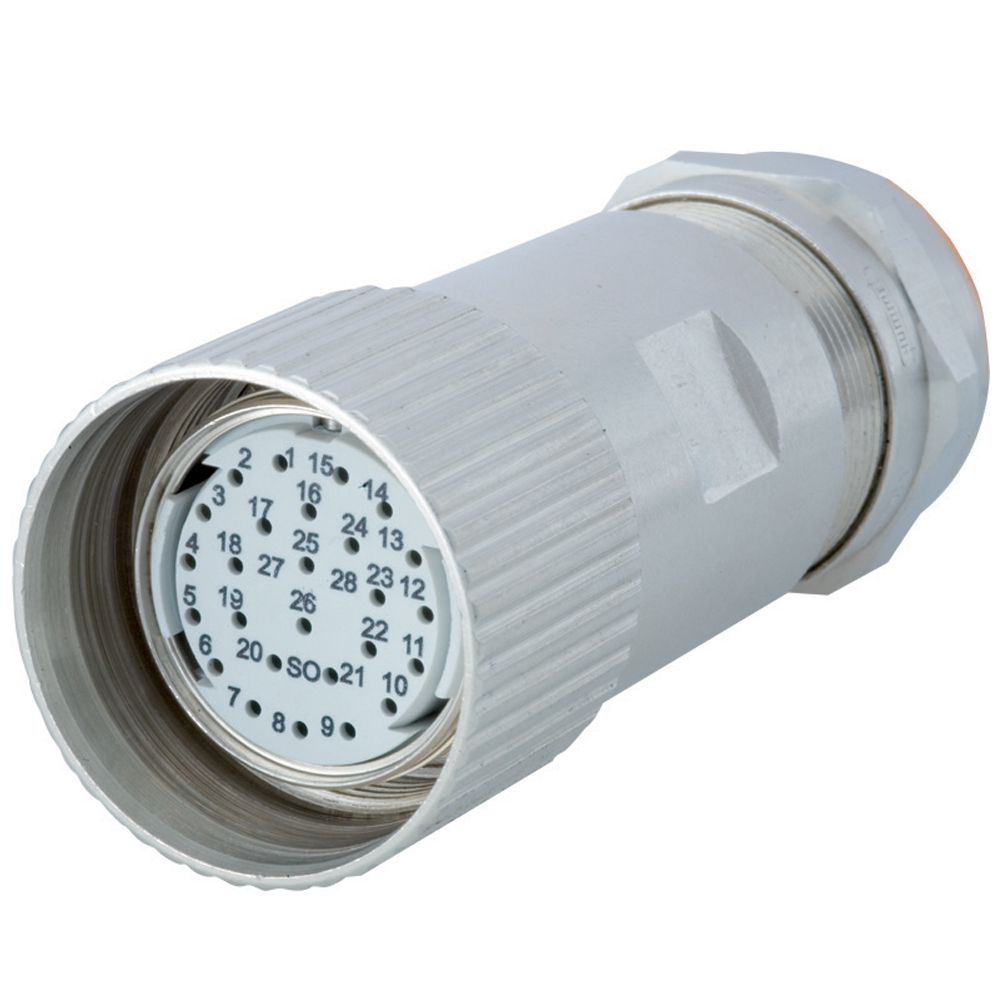

M27 Signal Straight Connector

Cable Range: .43" - .67" (11 - 17 mm)

Hummel: M27 Straight Connector, Female Thread

Hummel #: 7.110.600.000

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

PDF DOWNLOADS

Part Number	Image	Add to Quote	Number of Poles	Required Contacts	Electrical Data

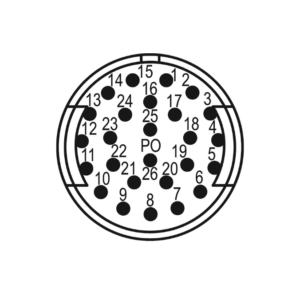

S7.001.926.103		Add to Quote This product is already in your quote request list. View Quote Request	Insert 26-pole	26 x 1 mm	Contact Ø signal 1 mm Rated current signal 8 A Rated voltage at pollution level 3 signal 74V~ Test voltage signal 840V~ Insulation resistance signal 10^8 Ω max. contact resistance signal 3 mOhm

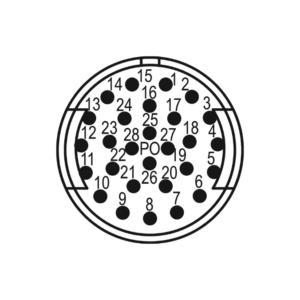

S7.001.928.103		Add to Quote This product is already in your quote request list. View Quote Request	Insert 28-pole	28 x 1 mm	Contact Ø signal 1 mm Rated current signal 8 A Rated voltage at pollution level 3 signal 74V~ Test voltage signal 840V~ Insulation resistance signal > 10^8 Ω max. contact resistance signal 3 mOhm

Part Number	Image	Add to Quote	Type of Contact	Crimp Range
S7.010.971.001		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 1 mm Machined	0.14 mm² - 1 mm²AWG 26 - AWG 17
S7.010.971.002		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 1 mm Machined	0.14 mm² - 1 mm²AWG 26 - AWG 17
