Features

• Quick connecting style
• High protection rate
• Easy connection/disconnection even under tight space conditions
• This unique connector features a panel-mounted Dual Function Connector suitable for threaded and push-pull (quick disconnect) connection
• Initially the connector can be specified with the more economical threaded connector and later converted to the more user-friendly push-pull style

These Circular Connectors feature Quick Connect with Patented Polygon Lock, easy handling and exceptional functionality.

INSERTS

Part Number	Image	Add to Quote	Number of Poles	Required Contacts	Electrical Data
S7.001.906.103		Add to Quote This product is already in your quote request list. View Quote Request	Insert 6-pole	6 x 2 mm	Number of Positions: 6 Number of Contacts: 6 Contact-Ø (mm): 2 Nominal Current1) [A]: 20 Nominal Voltage2) [V~] degree of protection 33): 300 Test Voltage (Breakdown Voltage) 4) [V~]: 2500 Insulation Resistance [MΩ]: > 1010 Max. Contact Resistance [mΩ]: 3

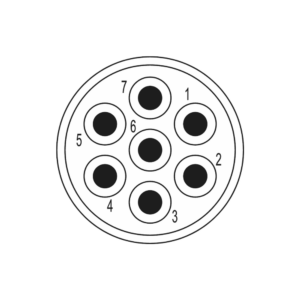

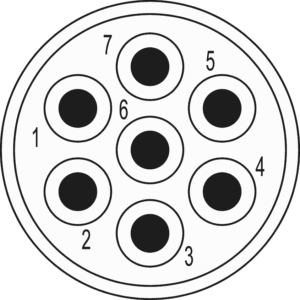

S7.001.907.103		Add to Quote This product is already in your quote request list. View Quote Request	Insert 7-pole	7 x 2 mm	Number of Positions: 7 Number of Contacts: 7 Contact-Ø (mm): 2 Nominal Current1) [A]: 20 Nominal Voltage2) [V~] degree of protection 33): 300 Test Voltage (Breakdown Voltage) 4) [V~]: 2500 Insulation Resistance [MΩ]: > 1010 Max. Contact Resistance [mΩ]: 3
S7.001.912.103		Add to Quote This product is already in your quote request list. View Quote Request	Insert 12-pole	12 x 1 mm	Number of Positions: 12 Number of Contacts: 12 Contact-Ø (mm): 1 Nominal Current1) [A]: 8 Nominal Voltage2) [V~] degree of protection 33): 200 Test Voltage (Breakdown Voltage) 4) [V~]: 2500 Insulation Resistance [MΩ]: > 1010 Max. Contact Resistance [mΩ]: 3
S7.001.917.103		Add to Quote This product is already in your quote request list. View Quote Request	Insert 17-pole	17 x 1 mm	Contact Ø signal 1 mm Rated current signal 8 A Rated voltage at pollution level 3 signal 160V~ Test voltage signal 500V~ Insulation resistance signal > 10^8 Ω max. contact resistance signal 3 mOhm
S7.001.919.103		Add to Quote This product is already in your quote request list. View Quote Request	Insert 19-pole (16 + 3)	16 x 1 mm 3 x 1.5 mm	Number of Positions: 19 | (16 + 3) Number of Contacts: 16 | 3 Contact Ø (mm): 1 | 1.5 Nominal Current [A]: 8 | 10 Nominal Voltage [V~]: 100 Test Voltage (Breakdown Voltage) [V~]: 1500 Insulation Resistance [MΩ]: > 106 Max. Contact Resistance [mΩ]: 3
S7.001.981.103		Add to Quote This product is already in your quote request list. View Quote Request	Insert 9-pole (8 + 1)	8 x 1 mm 1 x 2 mm	Number of Positions: 9 (8 + 1) Number of Contacts: 8 | 1 Contact-Ø (mm): 1 | 2 Nominal Current1) [A]: 8 | 20 Nominal Voltage2) [V~] degree of protection 33): 200 Test Voltage (Breakdown Voltage) 4) [V~]: 2500 Insulation Resistance [MΩ]: > 1010 Max. Contact Resistance [mΩ]: 3

CONTACTS

Part Number	Image	Add to Quote	Type of Contact	Crimp Range
S7.010.901.001		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 1 mm Machined	0.14 mm2 - 1.0 mm2 AWG 26 - AWG 17
S7.010.901.002		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 1 mm Machined	0.34 mm2 - 1 mm2 AWG 22 - AWG 17
S7.010.901.012		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 1 mm Machined	0.08mm2 - 0.56 mm2 AWG 28 - AWG 20
S7.010.901.021		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 1 mm Machined	0.75 - 1.5 mm2AWG 18 - AWG 16
S7.010.901.022		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 1 mm Machined	0.75 - 1.5 mm2AWG 18 - AWG 16
S7.010.901.031		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 1mm Machined Contact	0.08 mm² - 0.56 mm² AWG 28 - AWG 20
S7.010.901.501		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 1.5 mm Machined	0.14 mm2- 1 mm2 AWG 26 - AWG 17
S7.010.901.502		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 1.5 mm Machined	0.56 - 1mm 2- 1 mm2 (AWG 20 - 17)
S7.010.901.512		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 1.5 mm Machined	0.14 mm2- 0.56 mm2 AWG 26 - AWG 20
S7.010.902.001		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 2 mm Machined	0.75 mm2- 2.5 mm2 AWG 18 - AWG 14
S7.010.902.002		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 2 mm Machined	0.75 mm2- 2.5 mm2 AWG 18 - AWG 14

APPROVALS

• UR (Recognized Underwriters Laboratories)
• UL approval UL (Listed Underwriters Laboratories)
