Sealcon #: S7.744.023.000
(housing only)
M40 Power Panel Connector

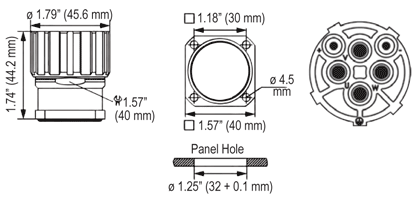

Cable Range: Flange: 4 holes .18" (4.5 mm)
Hummel: M40 Panel Connector, with knurled nut, 2+3+PE
Hummel #: 7.744.023.000
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Features
- Rugged design
- For up to 55 A applications
-
Mechanical Data:Housing Copper-Zinc Die CastingHousing Pressure Rating: Approvals:UL CSARoHS & Deca BDEIP 67 / IP 69 K per EN 60 529 (connected), Type NEMA 4x Mechanical Data:Housing Die Casting (Zinc)Housing Surface: Nickel PlatedContacts: Gold-plated Brass AlloyType of Contacts: CrimpNumber of Contacts: 6 & 8Amp Rating: 28 - 55 AVoltage Rating: 300 - 800 VCable OD: .51" - 1.10" (13 - 28 mm)Wire Gauge: 20 - 6 AWG Operating Temperature:- 40°C to 125°C (- 40°F to 257°F)
CONTACTS
Part Number Image Add to Quote Type of Contact Crimp Range S7.015.952.001
Crimp Pin 2 mm Machined 1.0 mm2 - 4.0 mm2 (AWG 17 - AWG 12) S7.015.952.002
Crimp Socket 2 mm Machined 1.0 mm2 - 4.0 mm2 (AWG 17 - AWG 12) S7.015.953.601
Crimp Pin 3.6mm Machined 1.5 mm2 - 4.0 mm2 (AWG 16 - AWG 12) S7.015.953.602
Crimp Socket 3.6mm Machined 1.5 mm2 - 4.0 mm2 (AWG 16 - AWG 12) S7.015.953.611
Crimp Pin 3.6mm Stamped 6.0 mm2 (AWG 10) S7.015.953.612
Crimp Socket 3.6mm Machined 6.0 mm2 (AWG 10) S7.015.953.621
Crimp Pin 3.6mm Machined 10.0 mm2 ( AWG 8) S7.015.953.622
Crimp Socket 3.6mm Machined ( AWG 8) S7.015.953.631
Crimp Pin 3.6mm Machined 16.0 mm2 ( AWG 6) S7.015.953.632
Crimp Socket 3.6mm Machined 16.0 mm2 ( AWG 6)
UR (Recognized Underwriters Laboratories)
UL approval UL (Listed Underwriters Laboratories)
