Sealcon #: S7.811.500.000
(housing only)

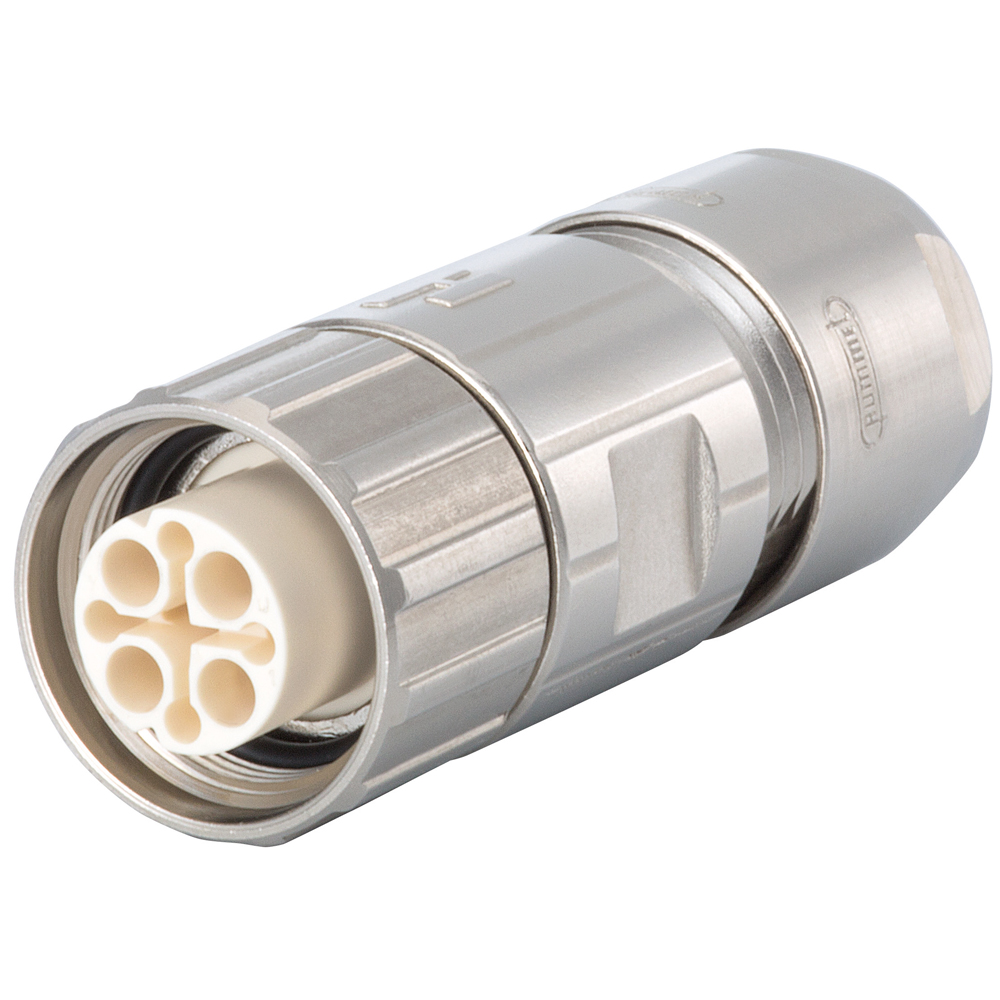

M16 Signal Connector
Cable Range: .31" - .43" (8 - 11 mm)
Hummel #: 7.811.500.000
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Features
- Fewer parts makes assembly simpler and more cost effective
- No tools required to insert and extract contacts
- Patented Euro-Lock secures contacts in place
- One step cable assembly with optional EMI shielding
- SLS (Spring Loaded Sockets) for vibrating environments
INSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data S7.001.903.108
Insert 3-pole (3 x 1 mm) 3 x 1 mm Number of Positions: 3 (3 x 1 mm)
Number of Contacts: 3
Contact-Ø (mm): 1
AWG [mm2]: 0,14 - 1
Nominal Current1) [A]: 8
Nominal Voltage2) [V~] degree of protection 34): 400
Test Voltage (Breakdown Voltage) 3) [V~]: 2500
Insulation Resistance [MΩ]: >1010
Max. Contact Resistance [mΩ]: 3S7.001.908.108
Insert 8-pole (4+3+PE 630V) 4 x 0.8 mm / 4 x 1.25 mm •Number of Positions: 4 + 3 +PE / 630V•Number of Contacts: 4 | 4•Contact-Ø (mm): 0.8 | 1.25•AWG [mm2]: 0.08 - 0.34 | 0.34 - 1.5•Nominal Current1) [A]: 5 | 16•Nominal Voltage2) [V~] degree of protection 34): 300 | 630•Test Voltage (Breakdown Voltage) 3) [V~]: 1500 | 2500•Insulation Resistance [MΩ]: >1010•Max. Contact Resistance [mΩ]: 3 | 3 S7.001.910.108
Insert 10-pole 10 x 1 mm Number of Positions: 10
Number of Contacts: 10
Contact-Ø (mm): 1
AWG [mm2]: 0.14 - 0.75
Nominal Current1) [A]: 8
Nominal Voltage2) [V~] degree of protection 34): 160
Test Voltage (Breakdown Voltage) 3) [V~]: 1500
Insulation Resistance [MΩ]: >106
Max. Contact Resistance [mΩ]: 3S7.001.943.108
Insert 8-pole (4+3+PE) 4 x 0.8 mm / 4 x 1.6 mm Number of Positions: 4 + 3 +PE / 320V
Number of Contacts: 4 | 4
Contact-Ø (mm): 0.8 | 1.6
AWG [mm2]: 0.08 - 0.34 | 0.34 - 1.5
Nominal Current1) [A]: 5 | 16
Nominal Voltage2) [V~] degree of protection 34): 160 | 320
Test Voltage (Breakdown Voltage) 3) [V~]: 1500 | 2500
Insulation Resistance [MΩ]: >1010
Max. Contact Resistance [mΩ]: 3S7.001.961.108
Insert 6+PE 7 x 1.25 mm Number of Positions: 3 (3 x 1 mm)
Number of Contacts: 3
Contact-Ø (mm): 1
AWG [mm2]: 0,14 - 1
Nominal Current1) [A]: 8
Nominal Voltage2) [V~] degree of protection 34): 400
Test Voltage (Breakdown Voltage) 3) [V~]: 2500
Insulation Resistance [MΩ]: >1010
Max. Contact Resistance [mΩ]: 3S7.001.983.108
Insert 3-pole (3 x 2 mm) 3 x 2 mm Number of Positions: 3 (3 x 2 mm)
Number of Contacts: 3
Contact-Ø (mm): 2
AWG [mm2]: 0.5 - 2.5
Nominal Current1) [A]: 20
Nominal Voltage2) [V~] degree of protection 34): 400
Test Voltage (Breakdown Voltage) 3) [V~]: 2500
Insulation Resistance [MΩ]: >1010
Max. Contact Resistance [mΩ]: 3S7.001.985.118
Insert 15-Pole (12+3) 12 x 0.8 mm/3 x 1.25 mm Number of Positions: 12 + 3
Number of Contacts: 12 | 3
Contact-Ø (mm): 0.8 | 1.25
AWG [mm2]: 0.08 - 0.34 | 0.34 - 1.5
Nominal Current1) [A]: 3 | 10
Nominal Voltage2) [V~] degree of protection 34): 24 | 60
Test Voltage (Breakdown Voltage) 3) [V~]: 1500 | 2500
Insulation Resistance [MΩ]: >1010
Max. Contact Resistance [mΩ]: 3 |3S7.001.988.108
Insert 18-Pole 18 x 0.8 mm Number of Positions: 18
Number of Contacts: 18
Contact-Ø (mm): 0.8
AWG [mm2]: 0.08 - 0.34
Nominal Current1) [A]: 3
Nominal Voltage2) [V~] degree of protection 34): 24
Test Voltage (Breakdown Voltage) 3) [V~]: 1500
Insulation Resistance [MΩ]: >1010
Max. Contact Resistance [mΩ]: 3CONTACTS
Part Number Image Add to Quote Type of Contact Crimp Range S7.010.901.001
Crimp Pin 1 mm Machined 0.14 mm2 - 1.0 mm2 AWG 26 - AWG 17 S7.010.901.002
Crimp Socket 1 mm Machined 0.34 mm2 - 1 mm2 AWG 22 - AWG 17 S7.010.901.012
Crimp Socket 1 mm Machined 0.08mm2 - 0.56 mm2 AWG 28 - AWG 20 S7.010.980.801
Crimp Pin 0.8 mm Machined 0.08 mm2 - 0.34 mm2 AWG 28 - AWG 22 S7.010.980.802
Crimp Socket 0.8 mm Machined 0.08 mm2 - 0.34 mm2 AWG 28 - AWG 22 S7.010.980.811
Crimp Pin 0.8 mm Machined 0.08 mm2 - 0.34 mm2 AWG 28 - AWG 22 S7.010.980.812
Crimp Socket 0.8 mm Machined 0.08 mm2 - 0.34 mm2 AWG 28 - AWG 22 S7.010.981.001
Crimp Pin 1 mm Machined 0.08 mm2 - 0.75 mm2AWG 28 - AWG 18 S7.010.981.002
Crimp Socket 1 mm Machined 0.08 mm2 - 0.75 mm2AWG 28 - AWG 18 S7.010.981.201
Crimp Pin 1.25 mm Machined 0.5 mm2 - 1.5 mm2 AWG 20 - AWG 16 S7.010.981.202
Crimp Socket 1.25 mm Machined 0.5 mm2 - 1.5 mm2 AWG 26 - AWG 16 S7.010.981.211
Crimp Pin 1.25 mm Machined 0.34mm2 - 1.5 mm2 AWG 22 - AWG 16 S7.010.981.212
Crimp Socket 1.25 mm Machined 0.34mm2 - 1.5 mm2 AWG 22 - AWG 16 S7.010.981.601
Crimp Pin 1.6mm, Machined 0.34 mm2 - 1.5 mm2 AWG 22 - AWG 16 S7.010.981.602
Crimp Socket 1.6 mm Machined 0.34 mm2 - 1.5 mm2 AWG 22 - AWG 16 S7.010.982.001
Crimp Pin 2 mm Machined 1 mm2 - 2.5 mm2 AWG 17 - AWG 14 S7.010.982.002
Crimp Socket 2 mm Machined 1 mm2 - 2.5 mm2 AWG 17 - AWG 14
UR (Recognized Underwriters Laboratories)
UL approval UL (Listed Underwriters Laboratories)
