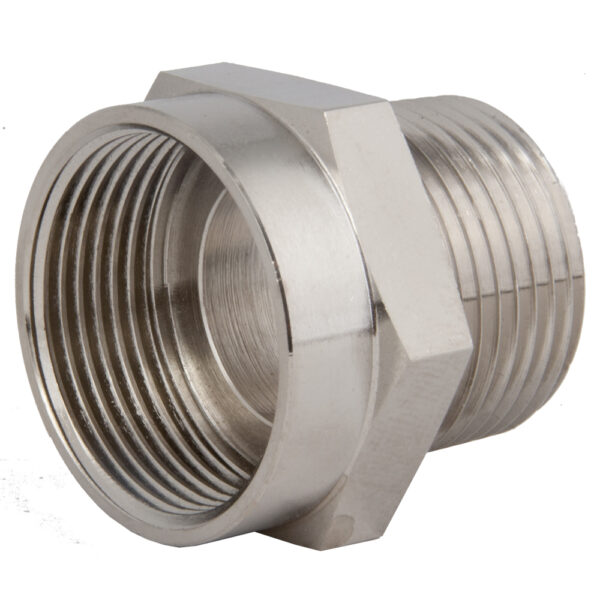

Sealcon #: AN-1213-BR
Cable Range: NIckel Plated Brass
Material: Nickel Plated Brass
Without-O-Ring. Optional Buna-N, FKM or Silicone O-Ring
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Thread Type Male (A) | 1/2" NPT |
|---|---|
| Female (B) | PG13 / PG13.5 |
| Height (H) | 0.05" (1.18" (30 mm) mm) |
| Thread Length (T) | 0.03" (.79" (20 mm) mm) |
| Wrench Flat (F1) | 0.98" (25 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
-
Features
Dealing with foreign products?
Is connecting a challenge?
Adapters will allow you to switch between PG, NPT & Metric threads to fit your application needs. -
Operating Temperature
-40C° to 125C° (-40°F to 257°F)Operating Temperature will vary based off selected O-Ring and the material of the product it is applied to.
