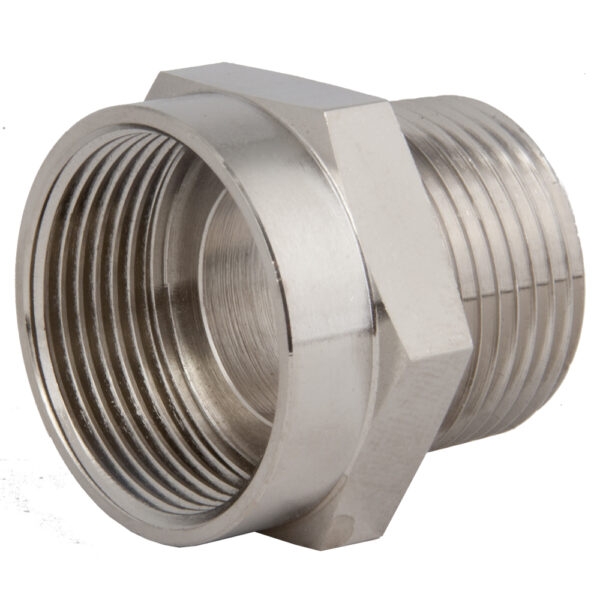

Sealcon #: AN-1407-BR
Cable Range: Nickel Plated Brass
Material: Nickel Plated Brass
Without-O-Ring. Optional Buna-N, FKM or Silicone O-Ring
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Thread Type Male (A) | 1/4" NPT |
|---|---|
| Female (B) | PG 7 |
| Height (H) | 0.04" (.98" (25 mm) mm) |
| Thread Length (T) | 0.02" (.59" (15 mm) mm) |
| Wrench Flat (F1) | 0.75" (19 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
-
Features
Dealing with foreign products?
Is connecting a challenge?
Adapters will allow you to switch between PG, NPT & Metric threads to fit your application needs. -
Operating Temperature
-40C° to 125C° (-40°F to 257°F)Operating Temperature will vary based off selected O-Ring and the material of the product it is applied to.
