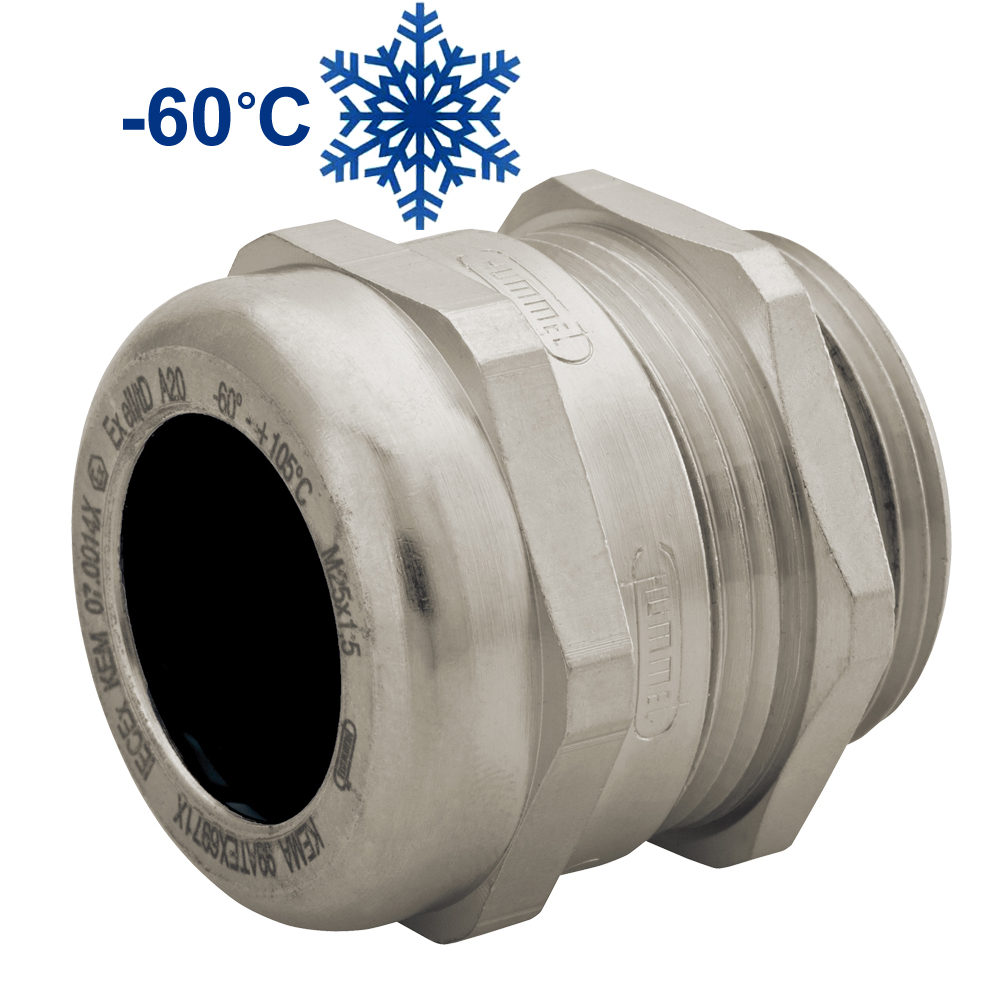

Ex-e M20 x 1.5 Nickel Plated Brass EMI / RFI Braided Nylon Spline Reduced Dome Cable Gland | Cord Grip | Strain Relief CC22MR-EX

Sealcon #: CC22MR-EX

Cable Range: 0.28" - 0.47" (7 to 12 mm)

Color: Nickel

Material: Nickel Plated Brass

Hummel #: 1.646.2000.51

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

Hole Diameter (A)	0.79" (20 mm)
Body Length (B)	0.91" (23 mm)
Thread Length (D)	0.24" (6 mm)
Wrench Flat (F1)	0.94" (24 mm)

Suggested Clearance Hole for Non-Threaded Mounting

PDF DOWNLOADS

Pressure Rating
150 PSIG (10 BAR) Type NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K
Materials
- Fittings: Nickel Plated Brass
- Optional ORing: Buna-N, Silicone
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
Operating Temperature
-60C° to 95C° (-76°F to 203°F)

Nylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant. UL F1 UV Stable Rating for outdoor applications (Black Nylon Version Only)
APPROVALS

RELATED ACCESSORIES

Nickel Plated Brass Locking Nut M20 X 1.5 | NM-20-BR
