Features

• Liquid Tight – Submersible to 300 ft. – NEMA 4x & 6 (IP68 / IP 69 K)
• Highest Pressure Rating – Patented form seal guarantees 150 psig
  (10 bar)
• Flame protected – V0 Rated according to UL 94Halogen- and Phosphorous free materials
• Safety – Ratchet to prevent Dome from coming loose under vibration
• Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
• Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
• Durable – Rugged Construction
• Environmentally compliant – RoHS & Deca BDE

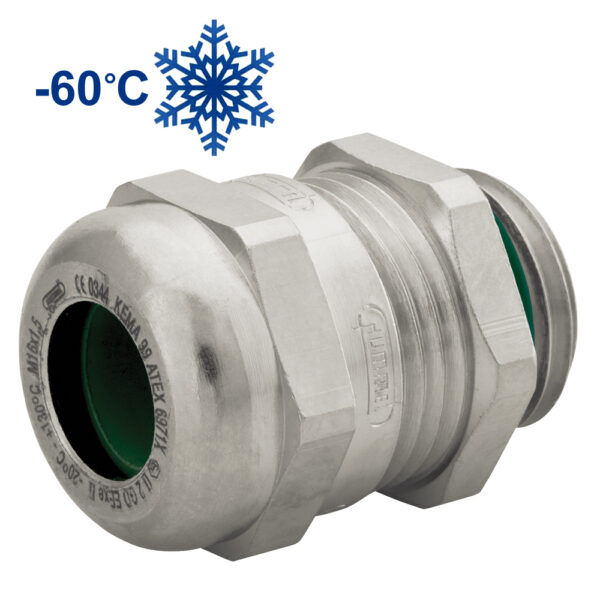

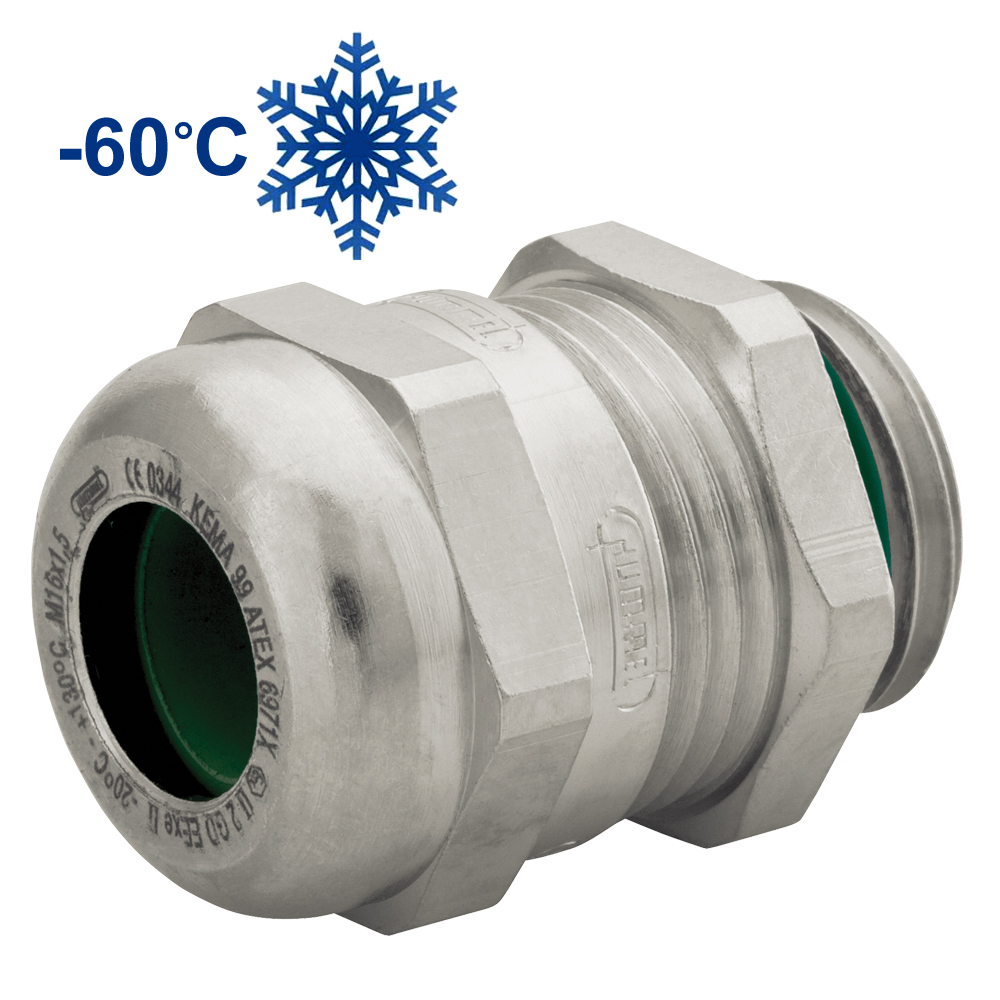

These Stainless Steel Strain Relief Fittings with PG 29 Thread have many applications, where the environment dictates a corrosion proof solution. Typical applications include: Off-Shore rigs, ships, chemical plants, food processing, wherever a rugged liquid tight strain relief fitting is required!

This Fitting will provide your application with a product made of exceptional quality.

• Fittings: 303 Stainless Steel
• Form Seal: Buna-N
• Optional ORing: FPM or Silicone

APPROVALS

• Restriction of Hazardous Substances in Electrical and Electronic Equipment
• ATEX - ATmosphere Explosible
• CE approval CE (Certified European Approval)
• CSA approval CSA (Canadian Standard Association)
• German Lloyd
• IECEx
• PCT Approval
• UL approval UL (Listed Underwriters Laboratories)
• UR (Recognized Underwriters Laboratories)
• VDE approval VDE (Association of German Electrical Engineers)
