Sealcon #: CD07CA-RX
Cable Range: 0.12" - 0.26" (3 to 6.5 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel: HSK-M-PVDF-Ex
Hummel #: 1.660.0700.60

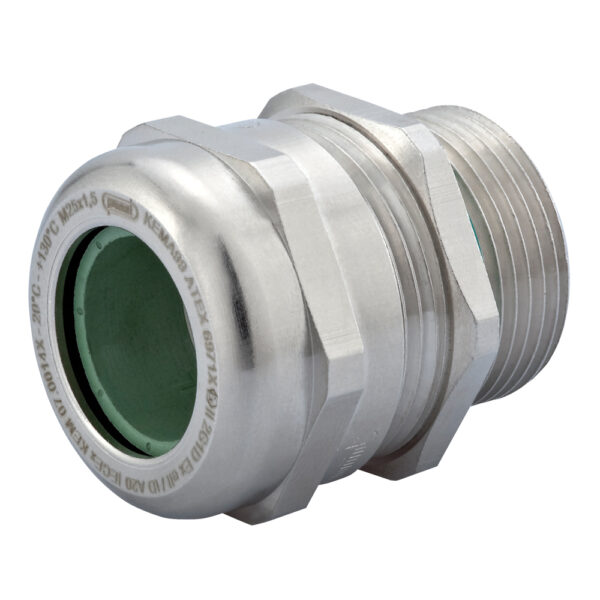

Cable gland made of nickel plated brass for chemical and high temperature applications.
Locking Nut Sold Separately.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A) | 0.49" (12.5 mm) |
---|---|
Body Length (B) | 0.75" (19 mm) |
Thread Length (D) | 0.39" (10 mm) |
Wrench Flat (F1) | 0.55" (14 mm) |
Wrench Flat (F) | 0.55" (14 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page-
Materials
- Form Seal: FPM
Operating Temperature
-20C° to 130C° (-4°F to 266°F) APPROVALS
- ATEX - ATmosphere Explosible
- CE approval CE (Certified European Approval)
- CSA approval CSA (Canadian Standard Association)
- German Lloyd
- IECEx
- PCT Approval
- UL approval UL (Listed Underwriters Laboratories)
- UR (Recognized Underwriters Laboratories)
- VDE approval VDE (Association of German Electrical Engineers)
