Sealcon #: CD07CR-RX
Cable Range: 0.08" - 0.2" (2 to 5 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel: HSK-M-PVDF-Ex
Hummel #: 1.660.0700.61

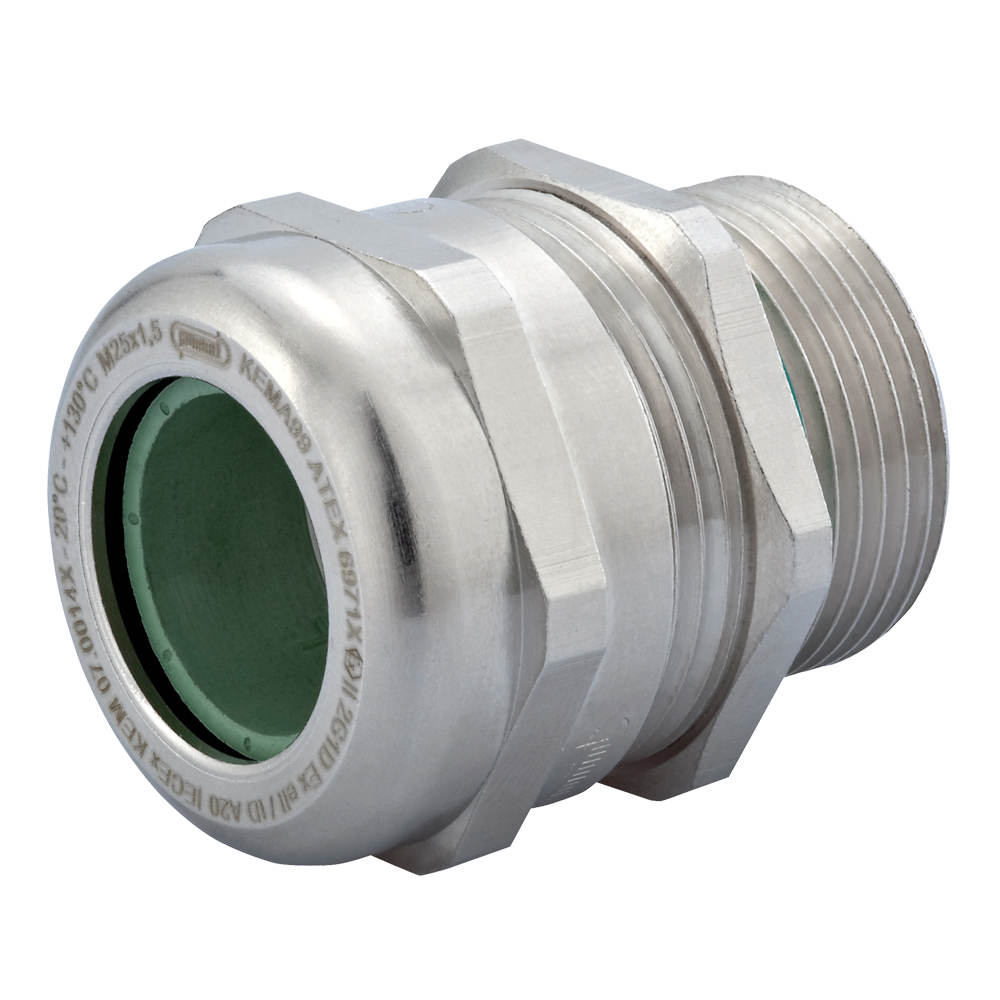

Cable gland made of nickel plated brass for chemical and high temperature applications.
Locking Nut Sold Separately.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 0.49" (12.5 mm) |
|---|---|
| Body Length (B) | 0.75" (19 mm) |
| Thread Length (D) | 0.39" (10 mm) |
| Wrench Flat (F1) | 0.55" (14 mm) |
| Wrench Flat (F) | 0.55" (14 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page-
MaterialsOperating Temperature
-20C° to 130C° (-4°F to 266°F)
