Sealcon #: CD08MW-RV
Cable Range: 0.12" - 0.2" (3 to 5 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel: HSK-MINI
Hummel #: 1.106.0800.55
Locking Nut Sold Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 0.31" (8 mm) |
|---|---|
| Body Length (B) | 0.51" (13 mm) |
| Thread Length (D) | 0.24" (6 mm) |
| Wrench Flat (F1) | 0.43" (11 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page-
Features
- Flame protected – V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE
Also Available in Elongated and EMI

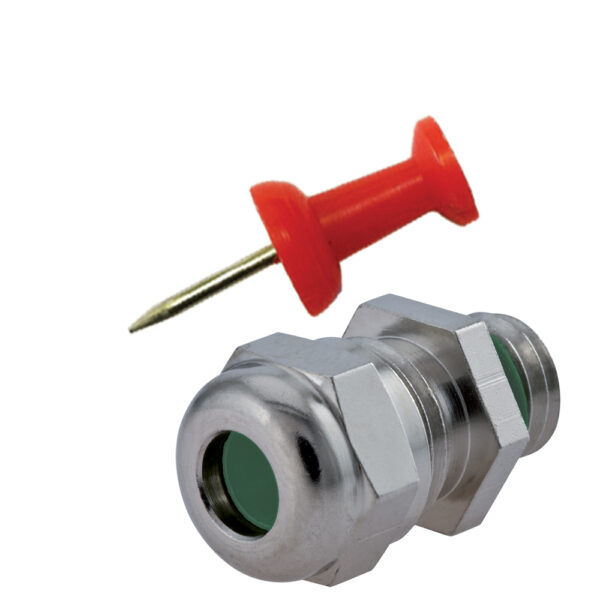

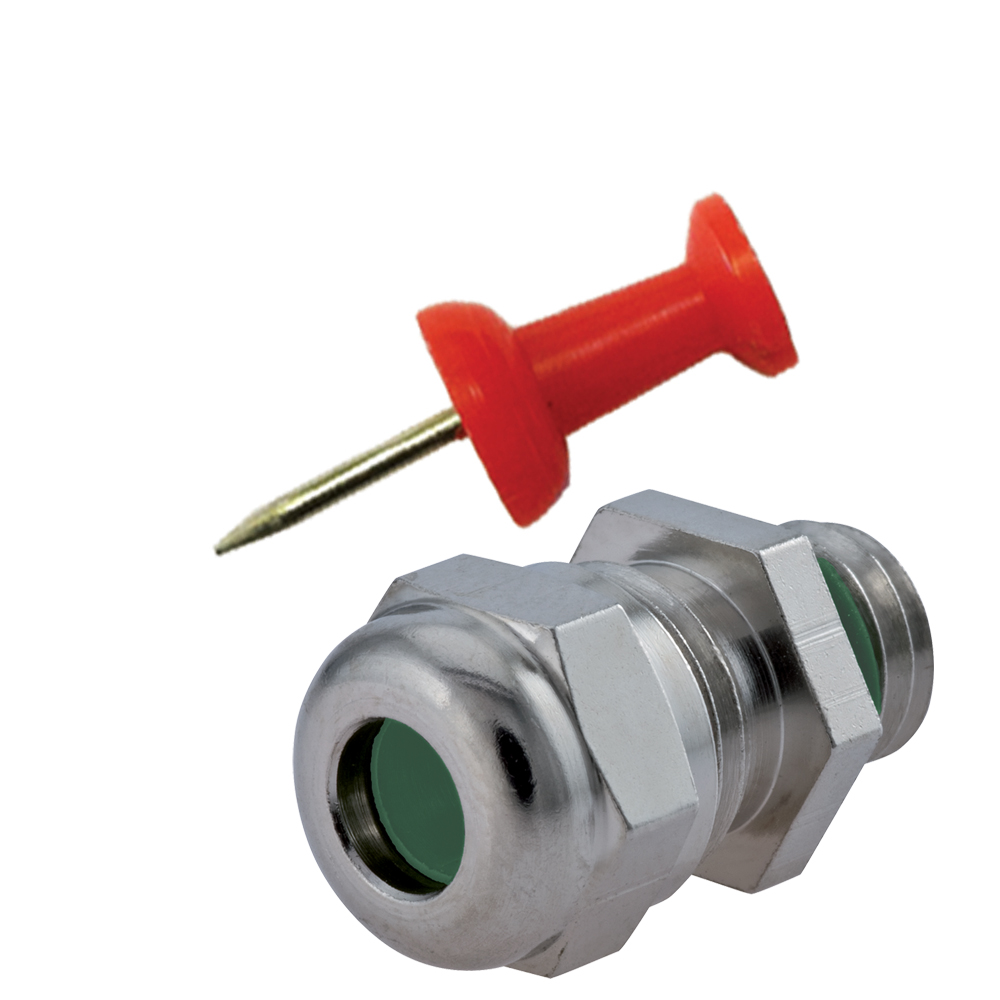

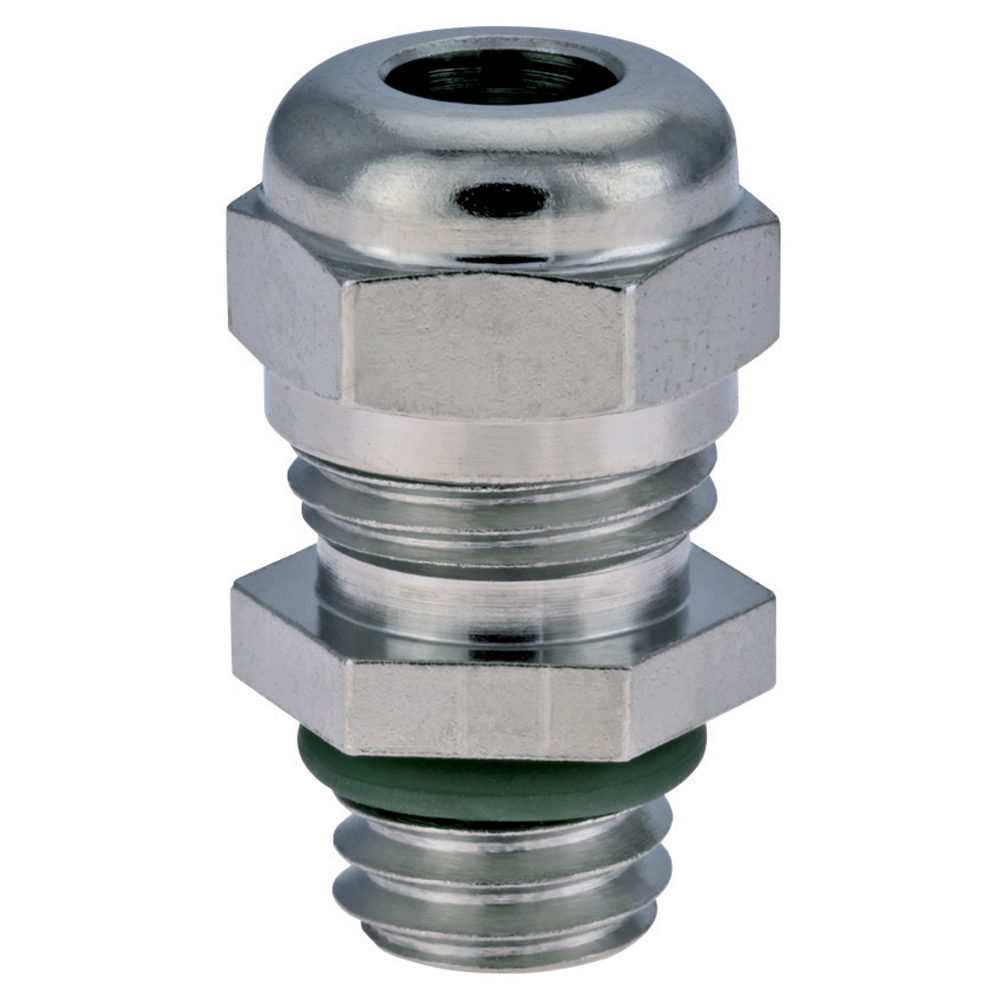

This Miniature Nickel Plated Brass Strain Relief with M8 x 1.25 Thread will provide your application with a product made of exceptional quality.
-
Pressure RatingMaterials
70 psig (5 bar) Type Nema 4x - IP 68- Fittings: Nickel Plated Brass
- Form Seal: Thermoplastic Elastomer (TPE)
- Optional ORing: FKM or Silicone
Operating Temperature
-25C° to 200C° (-13°F to 392°F)
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
EAC
