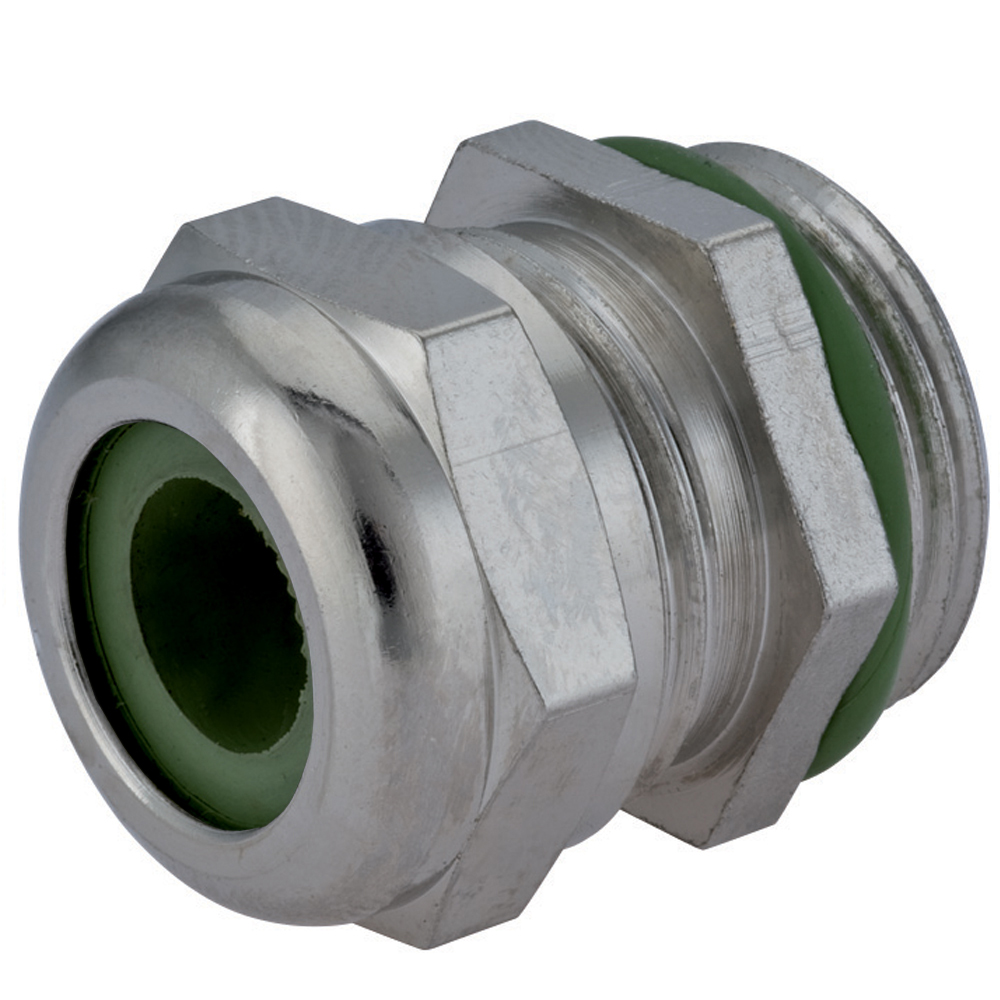

PG 9 Nickel Plated Brass PVDF Clamping Spline FKM Insert Reduced Dome Cable Gland | Cord Grip | Strain Relief CD09AR-RV

Sealcon #: CD09AR-RV
Cable Range: 0.08" - 0.24" (2 to 6 mm)
Color: Nickel Plated Brass
Material: Nickel Plated Brass
Hummel: HSK-M-PVDF
Hummel #: 1.699.0900.15

Locking Nut Sold Separately

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A)0.6" (15.2 mm)
Body Length (B)0.83" (21 mm)
Thread Length (D)0.24" (6 mm)
Wrench Flat (F1)0.67" (17 mm)
Suggested Clearance Hole for Non-Threaded Mounting
