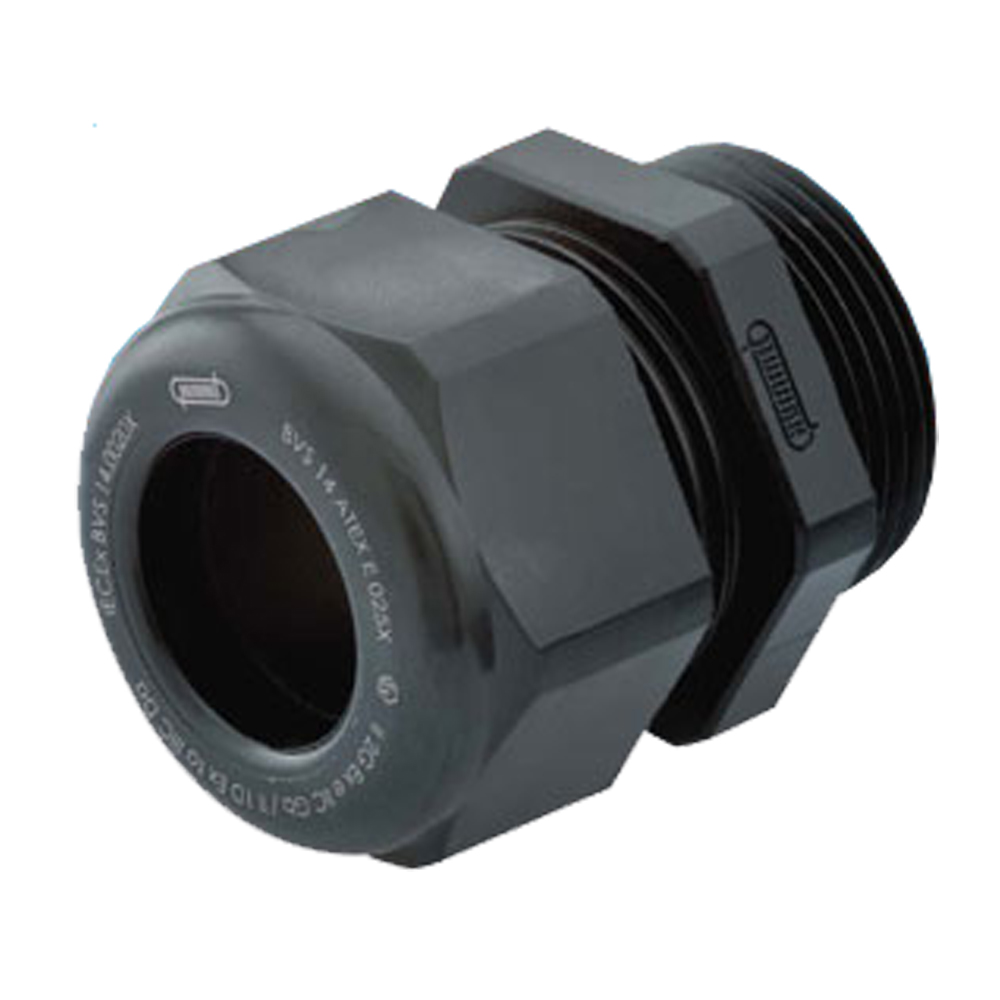

3/8″ NPT Black Nylon High Impact / DIV Rated Fiber Reinforced Standard Cable Gland | Cord Grip | Strain Relief CD09NA-BXA

3/8" NPT Black Nylon High Impact / DIV Rated Fiber Reinforced Standard Cable Gland | Cord Grip | Strain Relief CD09NA-BXA

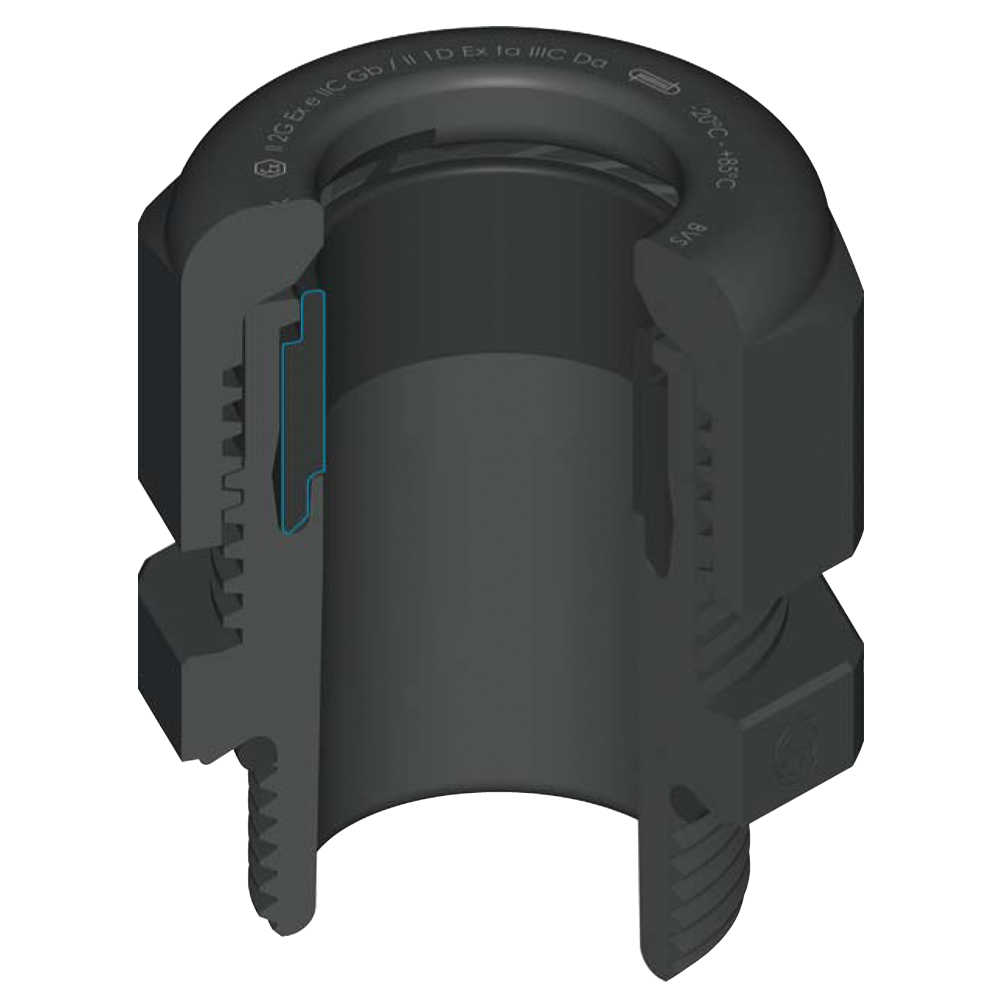

CD09NA-BXA cable gland exploded view
3D CAD VIEWER
Sealcon #: CD09NA-BXA
Cable Range: 0.16" - 0.31" (4 to 8 mm)
Color: Black
Material: Fiber Reinforced Nylon
Hummel: HSK-K-Ex-Active
Hummel #: 1.292.3801.70

Locking Nut Sold Separately

Add to Quote
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A)0.68" (17.2 mm)
Body Length (B)0.87" (22 mm)
Thread Length (D)0.59" (15 mm)
Wrench Flat (F1)0.87" (22 mm)
Wrench Flat (F)0.75" (19 mm)
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Data SheetAssembly Instructions

  • Features

    The HSK-K-Ex-Active has been developed to meet the stringent requirements of EN 60079-0 : 2012. IECEx Certificate of Conformity: IECEx BVS 14.0020X. This non-metallic solution for non-armored cables is designed for applications in electrical equipment and potentially explosive atmospheres.

    Machine, apparatus and plant equipment

    Measuring control and feedback systems

    Potentially Explosive Atmospheres

    Electrical Equipment

    Industrial installations

    and in all installations where excellent performance, fire resistance and no twisting or torquing of the cable are critical.



  • Materials
      Operating Temperature
      -20C° to 85C° (-4°F to 185°F)
      Pressure Rating: 150 PSIG (10 BAR) Type Nema 6 - IP 68
      Materials: Fittings: Fibreglass reinforced polyamide V0 according to UL 94
      Seal/O-Ring: NBR * Sizes: M12 to M63 and NPT 3/8 to NPT 1-1/2 Available Colors: Black
      RoHS & Deca BDE Compliant

    • APPROVALS
