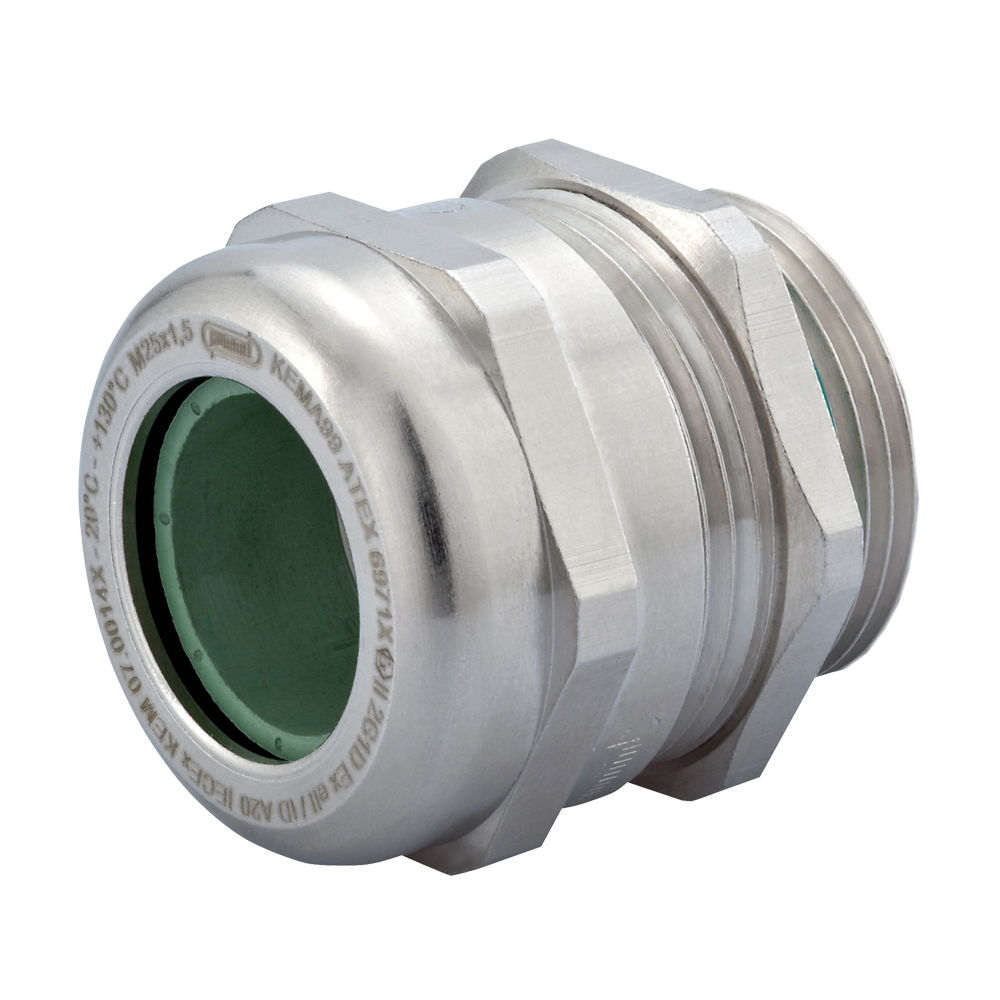

Ex-e 3/8″ NPT Nickel Plated Brass EMI / RFI Extreme Temp FKM Insert Reduced Dome Cable Gland | Cord Grip | Strain Relief CD09NR-RX

Ex-e 3/8" NPT Nickel Plated Brass EMI / RFI Extreme Temp FKM Insert Reduced Dome Cable Gland | Cord Grip | Strain Relief CD09NR-RX
3D CAD VIEWER
Sealcon #: CD09NR-RX
Cable Range: 0.08" - 0.24" (2 to 6 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel: HSK-M-PVDF-Ex
Hummel #: 1.660.3800.71

Cable gland made of nickel plated brass for chemical and high temperature applications.

Locking Nut Sold Separately.

Add to Quote
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A)0.68" (17.2 mm)
Body Length (B)0.83" (21 mm)
Thread Length (D)0.59" (15 mm)
Wrench Flat (F1)0.75" (19 mm)
Wrench Flat (F)0.67" (17 mm)
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page

  • Features

    • Flame protected – V0 Rated according to UL 94
    • Halogen- and Phosphorous free materials
    • Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
    • Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
    • Durable – Rugged Construction
    • Environmentally compliant – RoHS & Deca BDE

    This Nickel Plated Brass Liquid Tight Strain Relief Fitting with Multi-Hole Insert will provide your application with a product made of exceptional quality.

    The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.

    Kinking and chafing of the cable is eliminated with use of the Flex Nut.



  • Pressure Rating
    IP 65 / IP 68 10 bar possible with ideal fit
    Materials
    • Fittings: Nickel Plated Brass
