Features

• Liquid Tight – Submersible to 300 ft. – Type Nema 4x & 6 (IP68 / IP 69 K)
• Highest Pressure Rating – Patented form seal guarantees 150 psig (10 bar)
• Flame protected – V0 Rated according to UL 94
• Halogen- and Phosphorous free materials
• Safety – Ratchet to prevent Dome from coming loose under vibration
• Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
• Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
• Durable – Rugged Construction
• Environmentally compliant – RoHS & Deca BDE

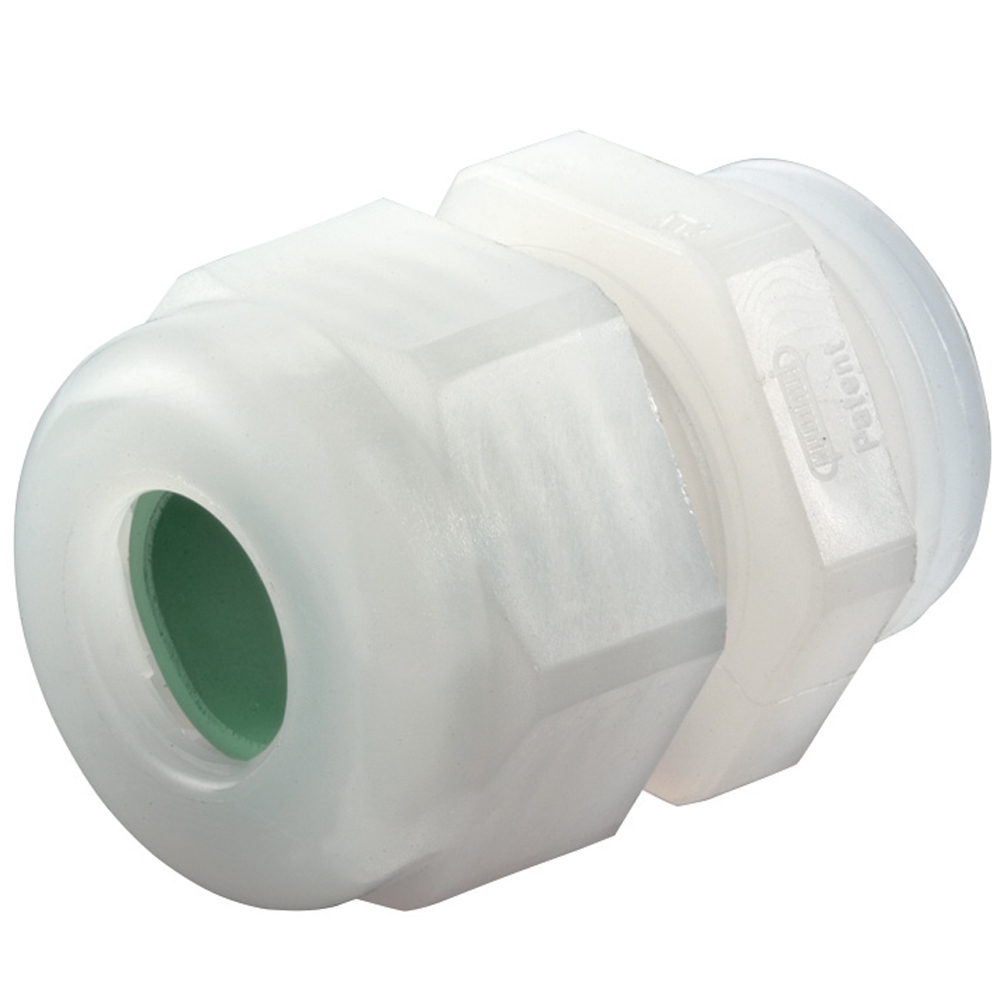

These Fittings have outstanding chemical resistance and can tolerate high and low temperatures. Use Nickel Plated Brass Locking Nuts. This Fitting will provide your application with a product made of exceptional quality.

Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.

The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.

Kinking and chafing of the cable is eliminated with use of the Flex Nut.

• Fittings: PVDF
• Form Seal: FPM
• Optional ORing: FPM
• Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic

APPROVALS

• Restriction of Hazardous Substances in Electrical and Electronic Equipment
• Deca-Bromo-Diphenyl-Ether Compliance
• Registration, Evaluation, Authorization and Restriction of Chemicals
• Waste Electrical and Electronic Equipment Directive
• cULus
• UL approval UL (Listed Underwriters Laboratories)
• CSA approval CSA (Canadian Standard Association)
• EAC
• UR (Recognized Underwriters Laboratories)
• CE approval CE (Certified European Approval)
• German Lloyd
• VDE approval VDE (Association of German Electrical Engineers)
