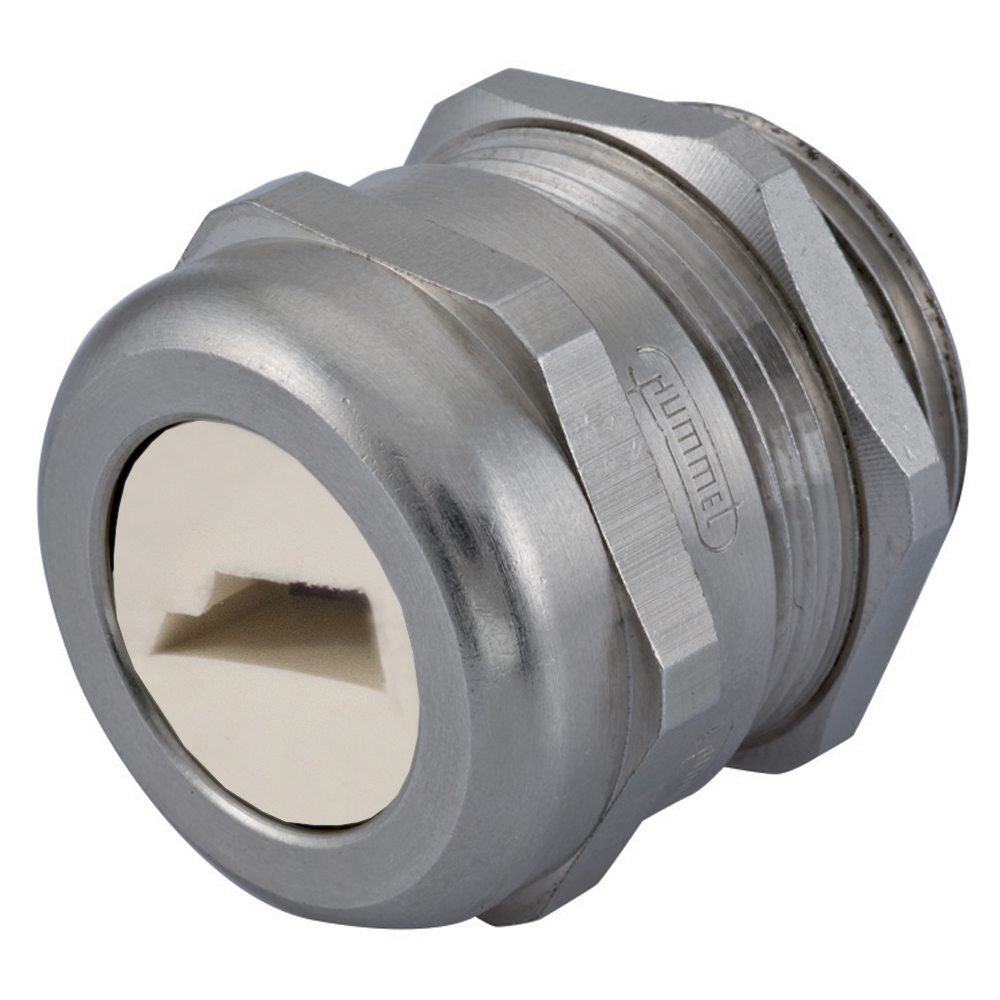

PG 13/13.5 Nickel Plated Brass ASI-BUS Flat Cable Dome Cable Gland | Cord Grip | Strain Relief CD13AS-B1

Sealcon #: CD13AS-B1
Color: Nickel
Material: Nickel Plated Brass

Slot Size: .17 x .41 (4.2 x 10.4)

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Body Length (B)0.94" (24 mm)
Thread Length (D)0.26" (6.5 mm)
Wrench Flat (F1)0.87" (22 mm)
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page
  • Features

    • Liquid Tight – Submersible to 300 ft. – Type Nema 4x & 6 (IP68 / IP 69 K)
    • Highest Pressure Rating – Patented form seal guarantees 150 psig (10 bar)
    • Flame protected – V0 Rated according to UL 94
    • Halogen- and Phosphorous free materials
    • Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
    • Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
    • Durable – Rugged Construction
    • Environmentally compliant – RoHS & Deca BDE

    This Nickel Plated Brass Strain Relief will provide your application with a product made of exceptional quality.

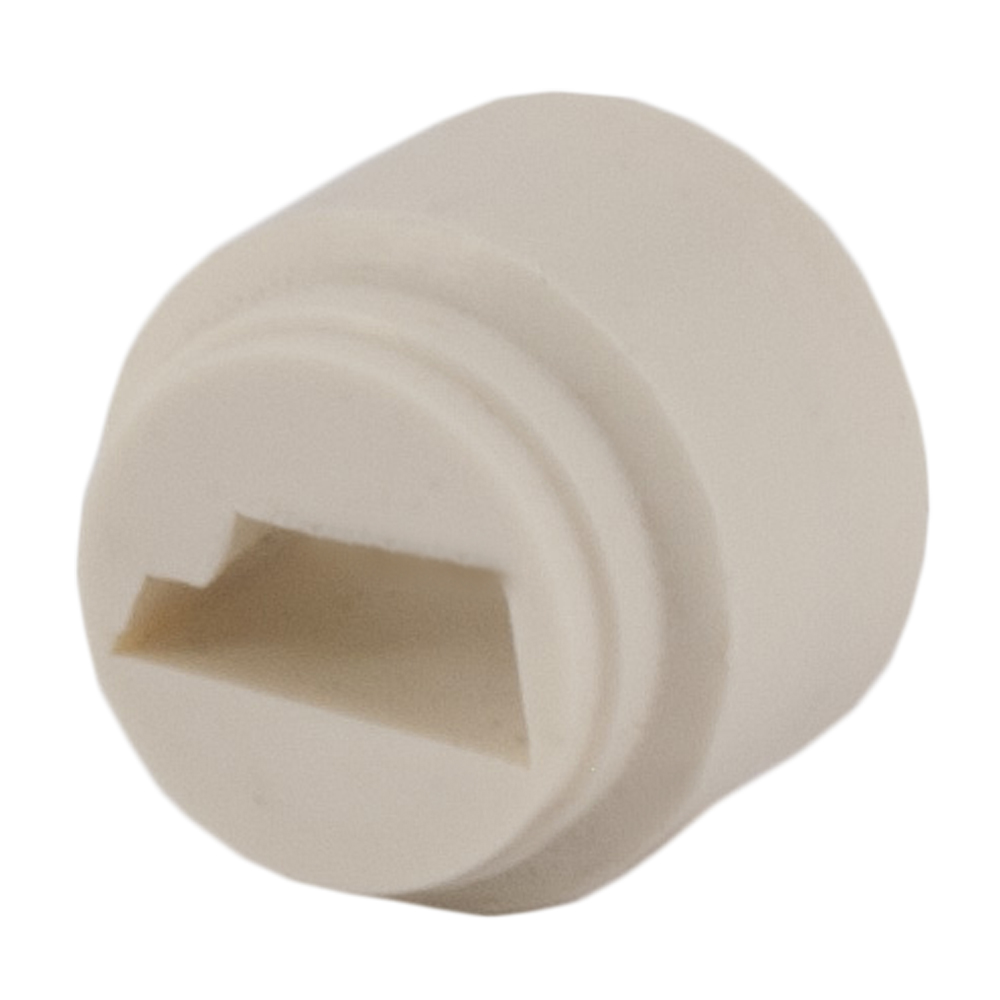

    Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.



  • Pressure Rating
    150 PSIG (10 BAR) Type Nema 4x & 6 (Submersible) - IP 68 / IP 69 K
    Materials
    • Fittings: Nickel Plated Brass
    • Optional ORing: Buna-N
    Operating Temperature
    -40C° to 100C° (-40°F to 212°F)
    • Stainless Steel available upon request
    • Elongated threads available upon request
    • The shown inserts are samples, more inserts upon request


    *Sizes 3/8" NPT, M12, M16, PG7, PG9, and PG11 and all Multi-Hole Fittings in Nylon and Nickel Plated Brass have UR (ONLY)
