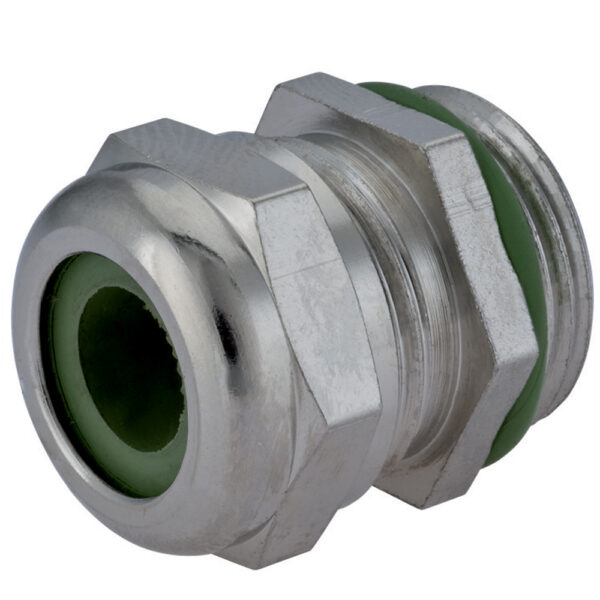

Sealcon #: CD16AR-RV
Cable Range: 0.28" - 0.47" (7 to 12 mm)
Color: Nickel Plated Brass
Material: Nickel Plated Brass
Hummel: HSK-M-PVDF
Hummel #: 1.699.1600.15
Locking Nut Sold Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A) | 0.89" (22.5 mm) |
---|---|
Body Length (B) | 0.91" (23 mm) |
Thread Length (D) | 0.24" (6,5 mm) |
Wrench Flat (F1) | 0.94" (24 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
-
Features
- Liquid Tight – Submersible to 300 ft. – NEMA 4x & 6 (IP68 / IP 69 K)
- Highest Pressure Rating – Patented form seal guarantees 150 psig (10 bar)
- Flame protected – V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE
These Fittings have outstanding chemical resistance and can tolerate high and low temperatures. Use Nickel Plated Brass Locking Nuts. This Fitting will provide your application with a product made of exceptional quality.
Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.
-
Pressure RatingMaterials
150 PSIG (10 BAR) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K- Fittings: Nickel Plated Brass PVDF
- Form Seal: FKM
- Optional ORing: FKM
- Optional Seal Ring: FKM
Operating Temperature
-35C° to 150C° (-31°F to 302°F) APPROVALS
- Restriction of Hazardous Substances in Electrical and Electronic Equipment
- Deca-Bromo-Diphenyl-Ether Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals
- Waste Electrical and Electronic Equipment Directive
- cULus
- UL approval UL (Listed Underwriters Laboratories)
- CSA approval CSA (Canadian Standard Association)
- EAC
- UR (Recognized Underwriters Laboratories)
- CE approval CE (Certified European Approval)
- German Lloyd
