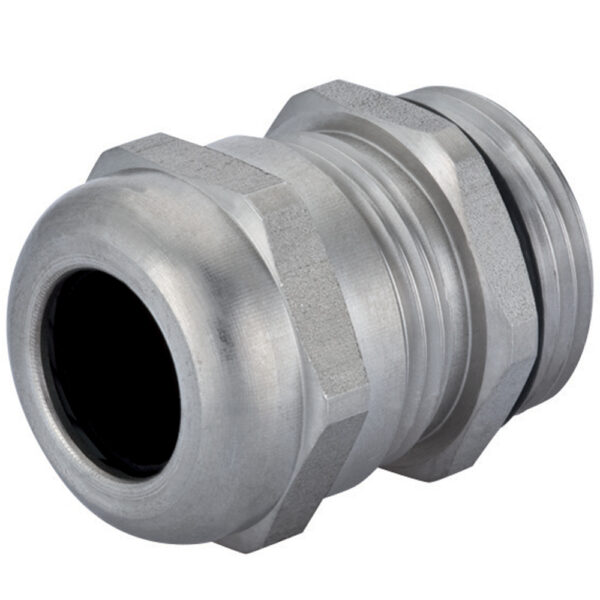

Sealcon #: CD16MA-SS
Cable Range: 0.2" - 0.39" (5 to 10 mm)
Material: 303 INOX 1.4305 Stainless Steel
Hummel: HSK-INOX (1.4305)
Hummel #: 1.695.1600.50
Locking Nut Sold Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A) | 0.63" (16 mm) |
---|---|
Body Length (B) | 0.87" (22 mm) |
Thread Length (D) | 0.24" (6 mm) |
Wrench Flat (F1) | 0.87" (22 mm) |
![](https://www.sealconusa.com/images/techdrawings/srf/clearance-hole.gif)
![](https://www.sealconusa.com/images/techdrawings/srf/nc-standard-dome.gif)
-
Features
- Liquid Tight – Submersible to 300 ft. – Type Nema 4x & 6 (IP68 / IP 69 K)
- Highest Pressure Rating – Patented form seal guarantees 150 psig
(10 bar) - Flame protected – V0 Rated according to UL 94Halogen- and Phosphorous free materials
- Safety – Ratchet to prevent Dome from coming loose under vibration
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE
These Stainless Steel Strain Relief Fittings with M16 x 1.5 Thread have many applications, where the environment dictates a corrosion proof solution. Typical applications include: Off-Shore rigs, ships, chemical plants, food processing, wherever a rugged liquid tight strain relief fitting is required!
This Fitting will provide your application with a product made of exceptional quality.
-
Pressure RatingMaterials
150 PSIG (10 BAR) Type Nema 4x & 6 (Submersible) - IP 68 / IP 69 K- Fittings: 303 INOX 1.4305 Stainless Stee
- Form Seal: Buna-N or FPM
- Optional ORing: Buna-N, FPM or Silicone
- Optional Seal Ring: Buna-N or FPM
Operating Temperature*CE and CSA Apply to Standard Fitting (ONLY)
-40C° to 100C° (-40°F to 212°F)
*Sizes 3/8” NPT, M12, M16, PG7, PG9, and PG11 and all Multi-Hole Fittings in Nylon and Nickel Plated Brass have UR (ONLY) APPROVALS
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
cULus
UL approval UL (Listed Underwriters Laboratories)
CSA approval CSA (Canadian Standard Association)
EAC
UR (Recognized Underwriters Laboratories)
CE approval CE (Certified European Approval)
German Lloyd
VDE approval VDE (Association of German Electrical Engineers)
