Sealcon #: CD16N8-MX
Color: Nickel
Material: Nickel Plated Brass
Number of Holes: 6
Diameter of Holes: 0.12" (3 mm)
Insert Part Number: 1.089.1607.19
Hummel: HSK-M-MULTI-Ex
Hummel #: 1.687.1223.70
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Body Length (B) | 1.46" (37 mm) |
|---|---|
| Thread Length (D) | 0.51" (13 mm) |
| Wrench Flat (F1) | 0.94" (24 mm) |
PDF DOWNLOADS
Catalog Page-
Features
- Flame protected – V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE

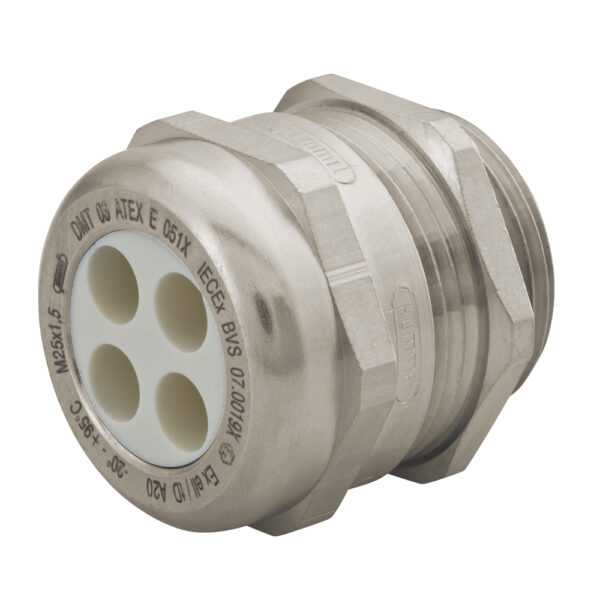

This Nickel Plated Brass Liquid Tight Strain Relief Fitting with Multi-Hole Insert will provide your application with a product made of exceptional quality.
-
Pressure RatingMaterials
IP 65 / IP 68 10 bar possible with ideal fit- Fittings: Nickel Plated Brass
- Form Seal: Elastomer
- Optional ORing: Buna-N, FPM or Silicone
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
Operating Temperature
-20C° to 95C° (-4°F to 203°F) APPROVALS
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
CSA approval CSA (Canadian Standard Association)
CE approval CE (Certified European Approval)
UR (Recognized Underwriters Laboratories)
German Lloyd
PCT Approval
