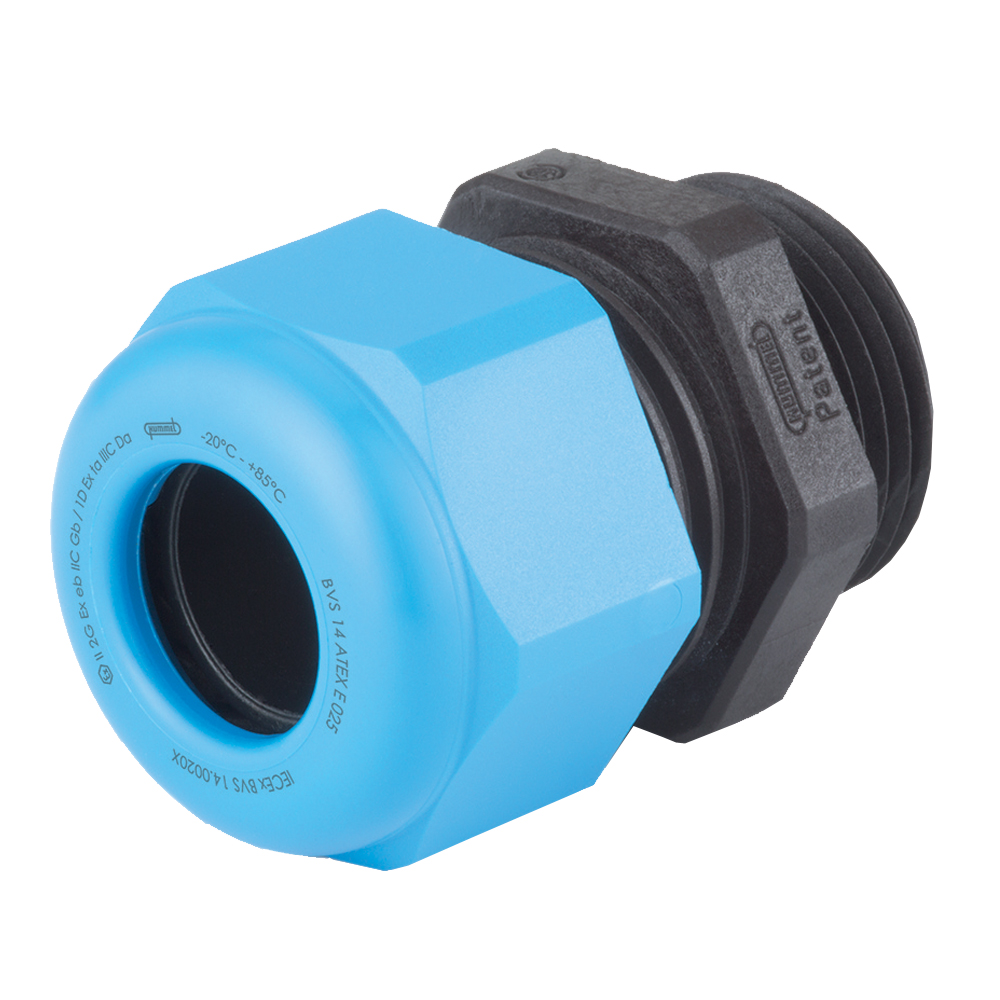

Sealcon #: CD16NA-BXI
Cable Range: 0.39" - 0.55" (10 to 14 mm)
Color: Blue
Material: Fiber Reinforced Nylon
Hummel: HSK-K-Ex-Active
Hummel #: 1.292.1217.70
Locking Nut Sold Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 0.83" (21.1 mm) |
|---|---|
| Body Length (B) | 1.1" (28 mm) |
| Thread Length (D) | 0.51" (13 mm) |
| Wrench Flat (F1) | 1.06" (27 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
-
Features

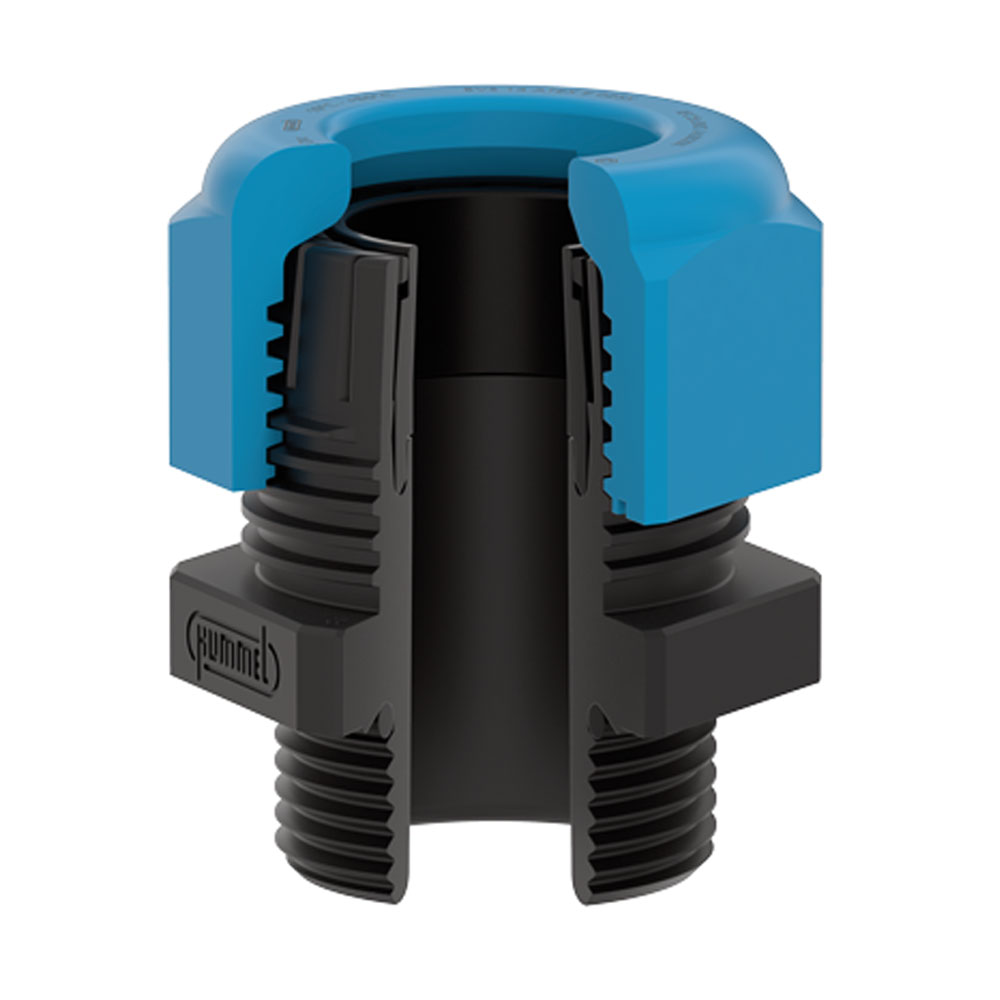

The HSK-K-Ex-Active has been developed to meet the stringent requirements of EN 60079-0 : 2012. IECEx Certificate of Conformity: IECEx BVS 14.0020X. This non-metallic solution for non-armored cables is designed for applications in electrical equipment and potentially explosive atmospheres.
Machine, apparatus and plant equipment
Measuring control and feedback systems
Potentially Explosive Atmospheres
Electrical Equipment
Industrial installationsand in all installations where excellent performance, fire resistance and no twisting or torquing of the cable are critical.
-
MaterialsOperating TemperaturePressure Rating: 150 PSIG (10 BAR) Type Nema 6 - IP 68
-20C° to 85C° (-4°F to 185°F)
Materials: Fittings: Fibreglass reinforced polyamide V0 according to UL 94 Seal/O-Ring: NBR
* Sizes: M12 to M63 and NPT 3/8 to NPT 1-1/2 Available Colors: Black
High Impact Resistance: 7 Joule
Latest ATEX/IECEx & CSA Standards
150 PSIG (10 bar) liquid tight rating
Concentric O-Ring Groove
UL f1 (746C) UV/Ozone Stable?
RoHS & Deca BDE Compliant
Restriction of Hazardous Substances in Electrical and Electronic Equipment
UL f1 (746C) V0 UL94 Rated / Approved
IECEx
CE approval CE (Certified European Approval)
ATEX - ATmosphere Explosible
