Sealcon #: CD16NS-06
Color: Gray
Material: Nylon
Hummel: HSK-K-FLAKA
Hummel #: 1.587.1217.70
Locking Nut & O-ring Sold Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A) | 0.83" (21.1 mm) |
---|---|
Body Length (B) | 1.1" (28 mm) |
Thread Length (D) | 0.51" (13 mm) |
Wrench Flat (F1) | 1.06" (27 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page-
Features
- Flame protected – V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Safety – Ratchet to prevent Dome from coming loose under vibration
- Large Selection – Cable Range from .08" (2mm) to 1.38" (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE

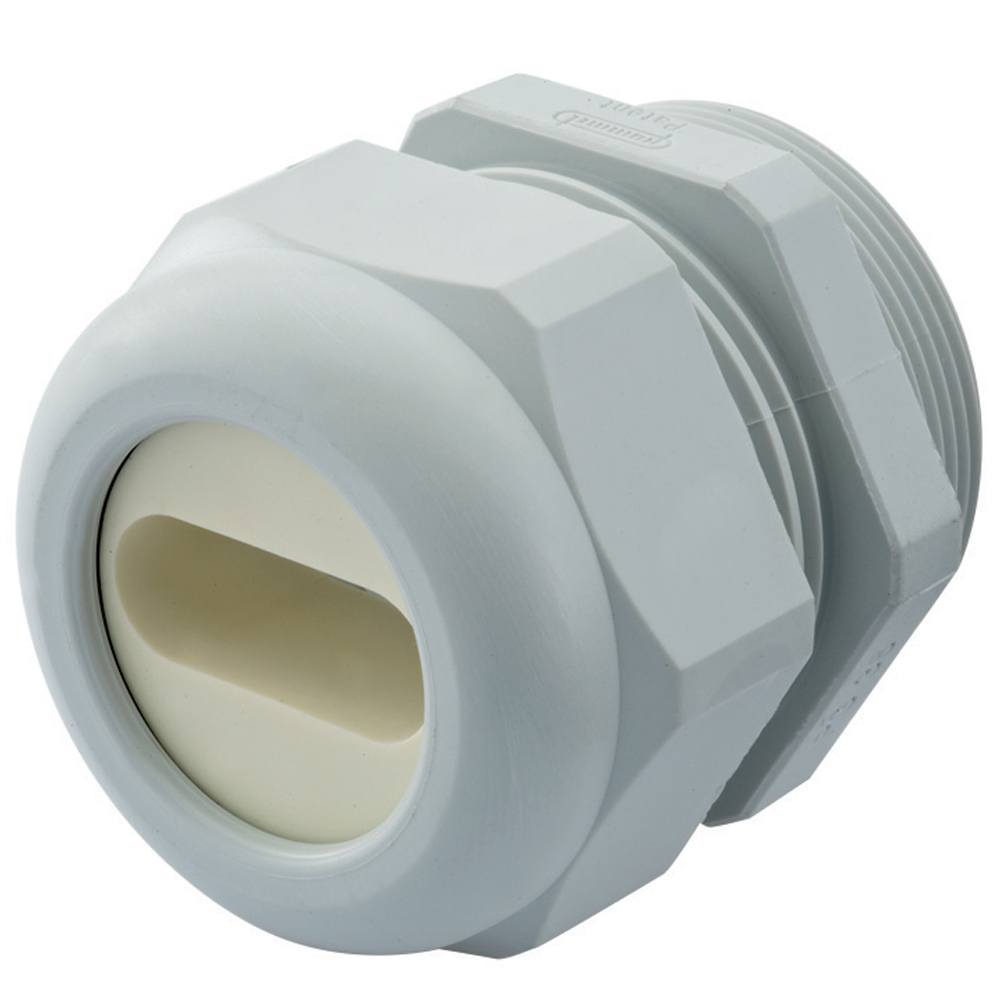

This Nylon Strain Relief (Cable Gland) with 1/2″ NPT Thread and ROMEX Flat Cable Insert will provide your application with a product made of exceptional quality
The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.
-
Pressure RatingMaterials
IP 65 / IP 68 with additional O-Ring- Fittings: Nylon 6/6
- Form Seal: Elastomer
- Optional ORing: Buna-N, FPM or Silicone
- Optional Seal Ring: Polyethylene
Operating Temperature
-40C° to 100C° (-40°F to 212°F)Available Colors
Black (RAL 9005);Gray (RAL 7035)
Nylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant.
UL F1 UV Stable Rating for outdoor applications (Black Nylon version only).
