Sealcon #: CD17DR-MX
Cable Range: 0.12" - 0.28" (3 to 7 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel #: 1.610.1611.31
Locking Nut Sold Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 0.67" (17 mm) |
|---|---|
| Body Length (B) | 0.87" (22 mm) |
| Thread Length (D) | 0.39" (10 mm) |
| Wrench Flat (F1) | 0.79" (20 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page-
Features
- Liquid Tight – Submersible to 300 ft. – NEMA 4x & 6 (IP68 / IP 69 K)
- Highest Pressure Rating – Patented form seal guarantees 150 psig (10 bar)
- Flame protected – V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE

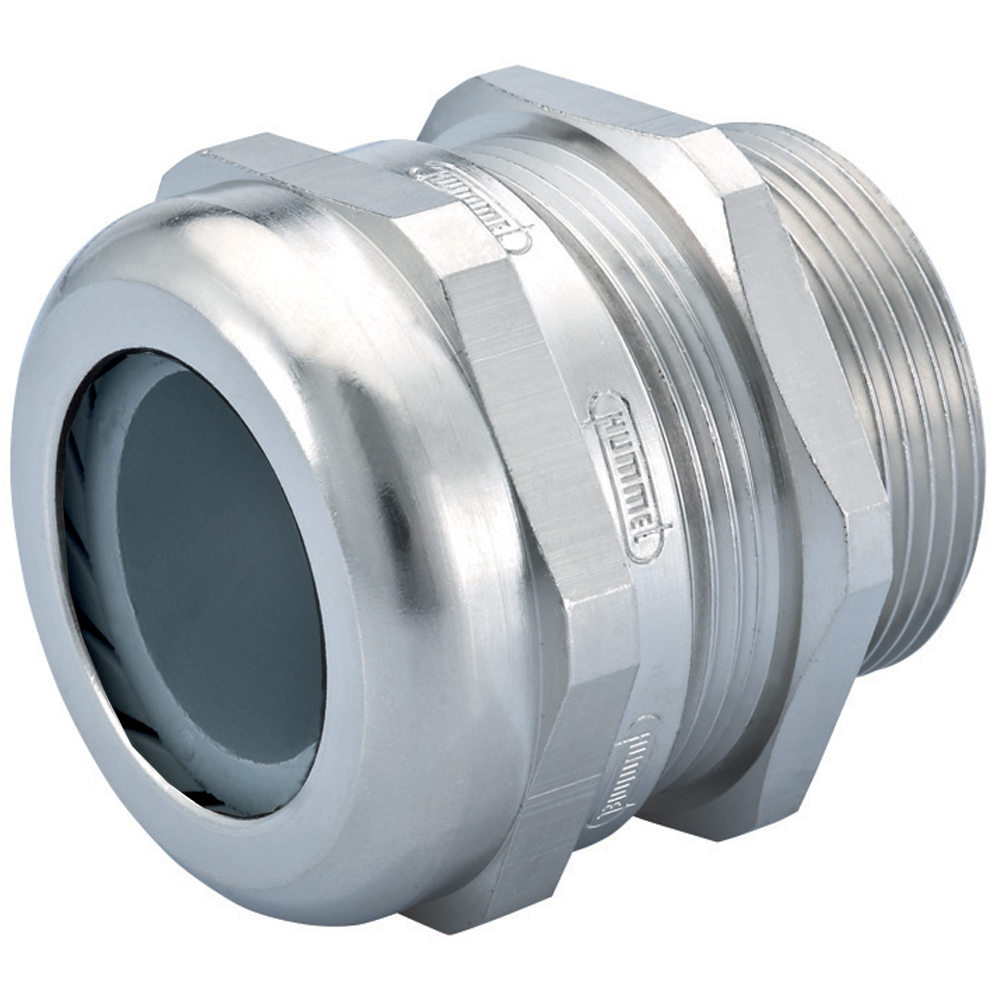

This Nickel Plated Brass Strain Relief with elongated M16 x 1.5 Thread will provide your application with a product made of exceptional quality.

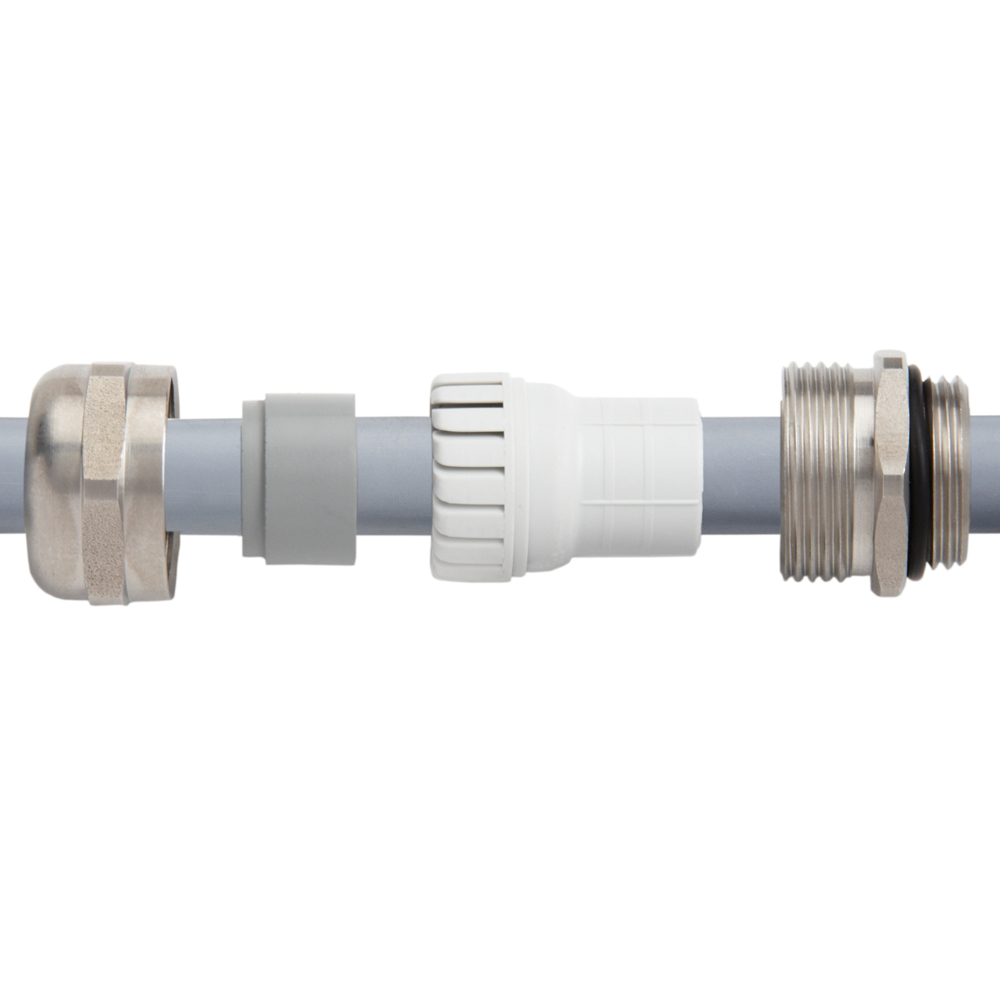

Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.
-
Pressure RatingMaterials
150 PSIG (10 BAR) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K- Fittings: Fittings: Nickel Plated Brass
- Optional ORing: Buna-N, FPM or Silicone
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
Available ColorsNylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant. UL F1 UV Stable Rating for outdoor applications (Black Nylon Version Only) *Sizes 3/8" NPT, M12, M16, PG7, PG9, and PG11 and all Multi-Hole Fittings in Nylon and Nickel Plated Brass have UR (ONLY)
Black (RAL 9005);Gray (RAL 7035);Blue (RAL 5012) - upon request; APPROVALS
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
cULus
UL approval UL (Listed Underwriters Laboratories)
CSA approval CSA (Canadian Standard Association)
EAC
UR (Recognized Underwriters Laboratories)
CE approval CE (Certified European Approval)
German Lloyd
VDE approval VDE (Association of German Electrical Engineers)
