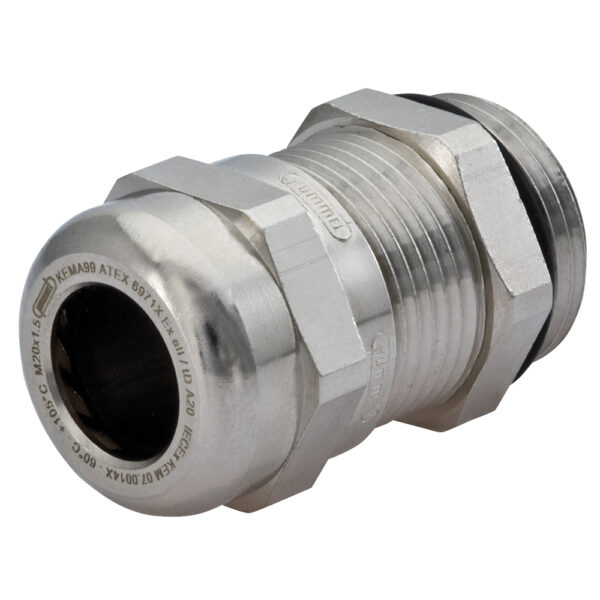

Sealcon #: CD17MA-FX
Cable Range: 0.2" - 0.39" (5 to 10 mm)
Material: Nickel Plated Brass
Hummel: HSK-M-EMV-D-Ex
Hummel #: 1.636.1600.50
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 0.73" (18.5 mm) |
|---|---|
| Body Length (B) | 1.14" (29 mm) |
| Thread Length (D) | 0.24" (6 mm) |
| Wrench Flat (F1) | 0.79" (20 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page-
Features

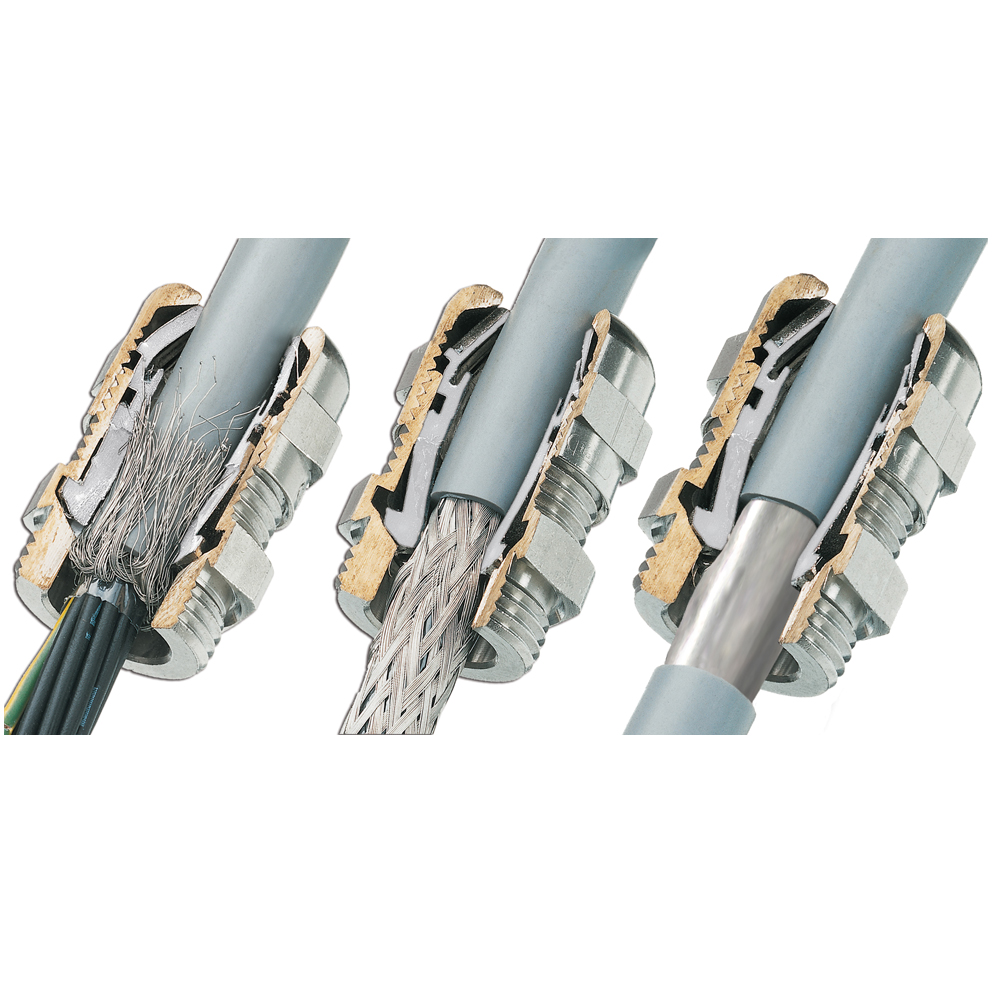

Cable glands of the HSK-EMC-Ex- series have been designed for standard applications in hazardous locations type “e” according to EN 60079-0 and 60079-7
- Machine, apparatus and plant equipment
- Measuring control and feedback systems
- Control cabinets
- Railroad cars and vehicles
- Industrial installations
- Marine
- Off-shore
and in all installations where excellent performance, fire resistance and no twisting or torquing of the cable are critical
-
Materials
- Form Seal: Buna-N
Operating Temperature
-60C° to 95C° (-76°F to 203°F) APPROVALS
ATEX - ATmosphere Explosible
CE approval CE (Certified European Approval)
IECEx
PCT Approval
