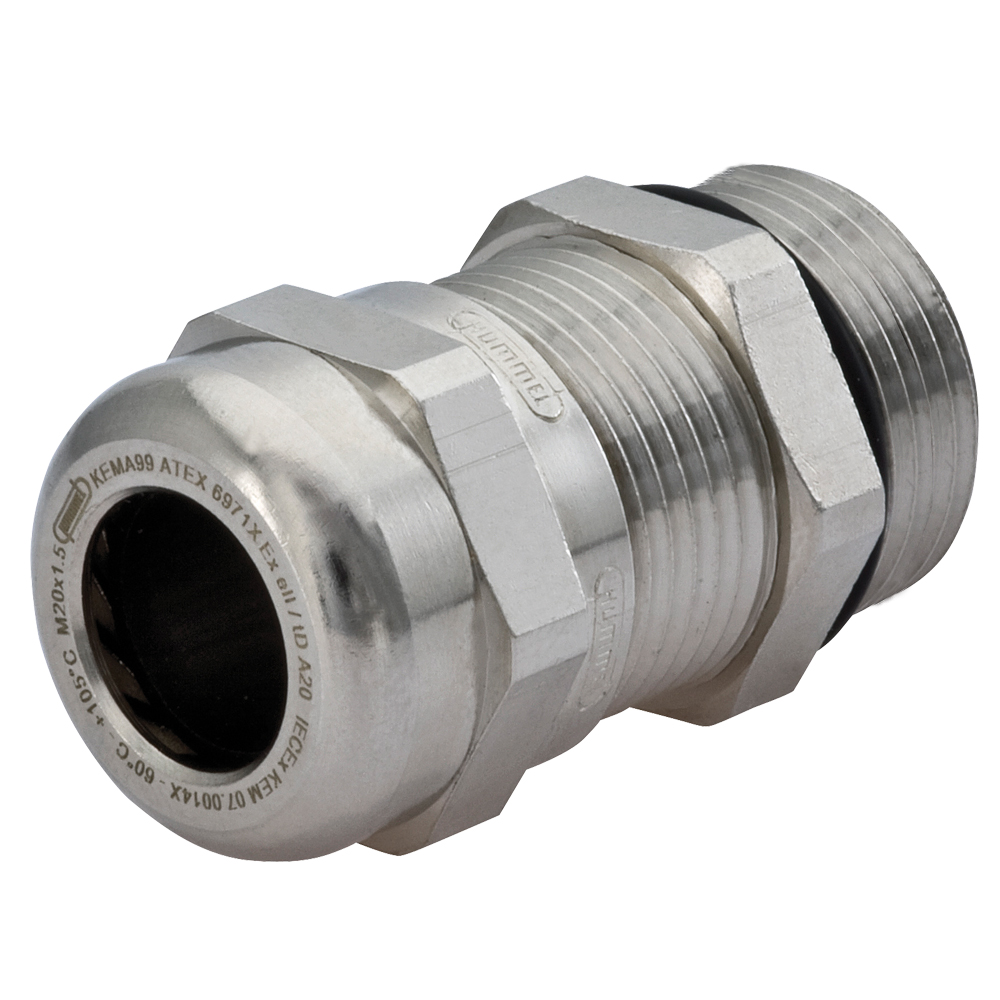

Sealcon #: CD25DA-FX
Cable Range: 0.51" - 0.71" (13 to 18 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel: HSK-M-EMV-D-Ex
Hummel #: 1.636.2500.30
Locking Nut Sold Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 1.12" (28.4 mm) |
|---|---|
| Body Length (B) | 1.5" (38 mm) |
| Thread Length (D) | 0.28" (7 mm) |
| Wrench Flat (F1) | 1.18" (30 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page-
Materials
- Fittings: Nickel Plated Brass
- Optional ORing: FPM or Silicone
Operating Temperature
-20C° to 95C° (-4°F to 203°F) APPROVALS
ATEX - ATmosphere Explosible
CE approval CE (Certified European Approval)
IECEx
PCT Approval
