Features

• Liquid Tight – Submersible to 300 ft. – Type Nema 4x & 6 (IP68 )
• Highest Pressure Rating – Patented form seal guarantees 150 psig
  (10 bar)
• Safety – Ratchet to prevent Dome from coming loose under vibration
• Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
• Durable – Rugged Construction
• Environmentally compliant – RoHS & Deca BDE

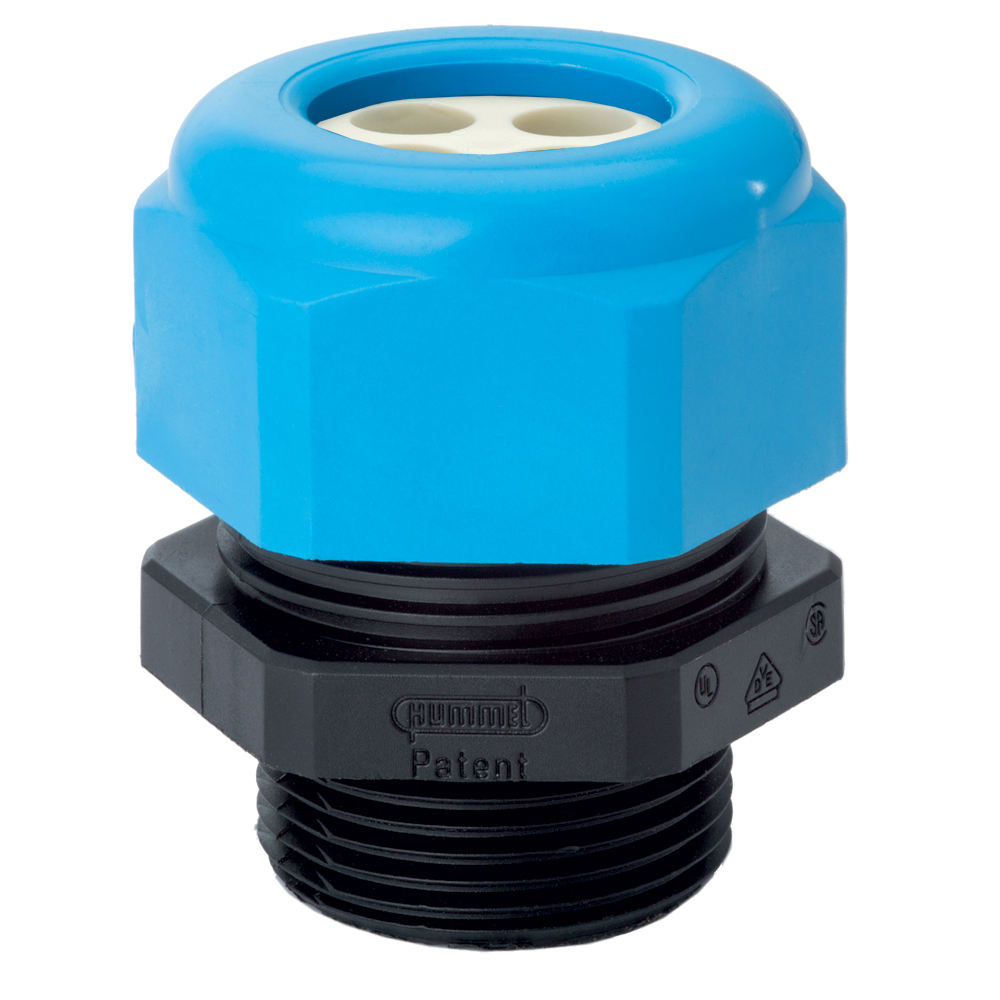

This Nylon Strain Relief (Cable Gland) with M25 x 1.5 Thread will provide your application with a product made of exceptional quality

The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.

• Fittings: Fiberglass reinforced polyamid
• Form Seal: NBR
• Optional ORing: Buna-N, FPM or Silicone
• Optional Seal Ring: NBR

APPROVALS

• Restriction of Hazardous Substances in Electrical and Electronic Equipment
• UL f1 (746C) V0 UL94 Rated / Approved
• IECEx
• CE approval CE (Certified European Approval)
• ATEX - ATmosphere Explosible
