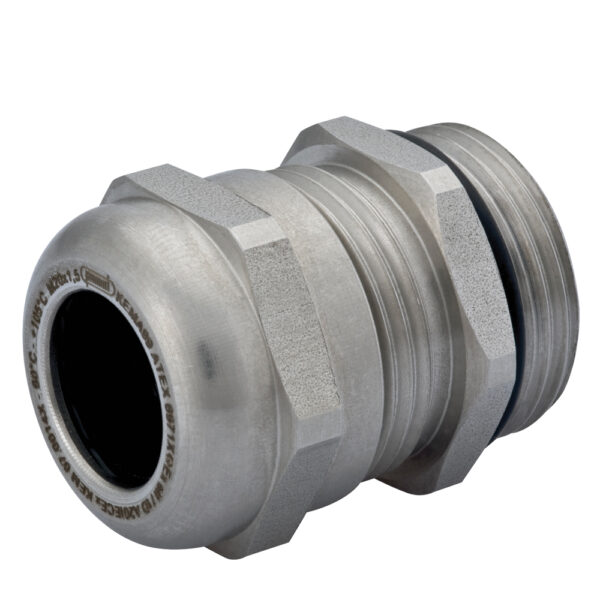

Sealcon #: CD36AR-SX
Cable Range: 0.79" - 1.02" (20 to 26 mm)
Color: Stainless
Material: 303 Stainless Steel 1.4404
Hummel #: 1.642.3600.15
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A) | 1.85" (47 mm) |
---|---|
Body Length (B) | 1.38" (35 mm) |
Thread Length (D) | 0.31" (8 mm) |
Wrench Flat (F1) | 1.97" (50 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page-
Features
- Liquid Tight – Submersible to 300 ft. – NEMA 4x & 6 (IP68 / IP 69 K)
- Highest Pressure Rating – Patented form seal guarantees 150 psig
(10 bar) - Flame protected – V0 Rated according to UL 94Halogen- and Phosphorous free materials
- Safety – Ratchet to prevent Dome from coming loose under vibration
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE
These Stainless Steel Strain Relief Fittings with PG 36 Thread have many applications, where the environment dictates a corrosion proof solution. Typical applications include: Off-Shore rigs, ships, chemical plants, food processing, wherever a rugged liquid tight strain relief fitting is required!
This Fitting will provide your application with a product made of exceptional quality.
-
Pressure RatingMaterials
150 PSIG (10 BAR) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K- Fittings: 303 INOX Stainless Steel
Operating Temperature
-20C° to 95C° (-4°F to 203°F) APPROVALS
- Restriction of Hazardous Substances in Electrical and Electronic Equipment
- Deca-Bromo-Diphenyl-Ether Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals
- Waste Electrical and Electronic Equipment Directive
- cULus
- UL approval UL (Listed Underwriters Laboratories)
- CSA approval CSA (Canadian Standard Association)
- EAC
- UR (Recognized Underwriters Laboratories)
- CE approval CE (Certified European Approval)
- German Lloyd
