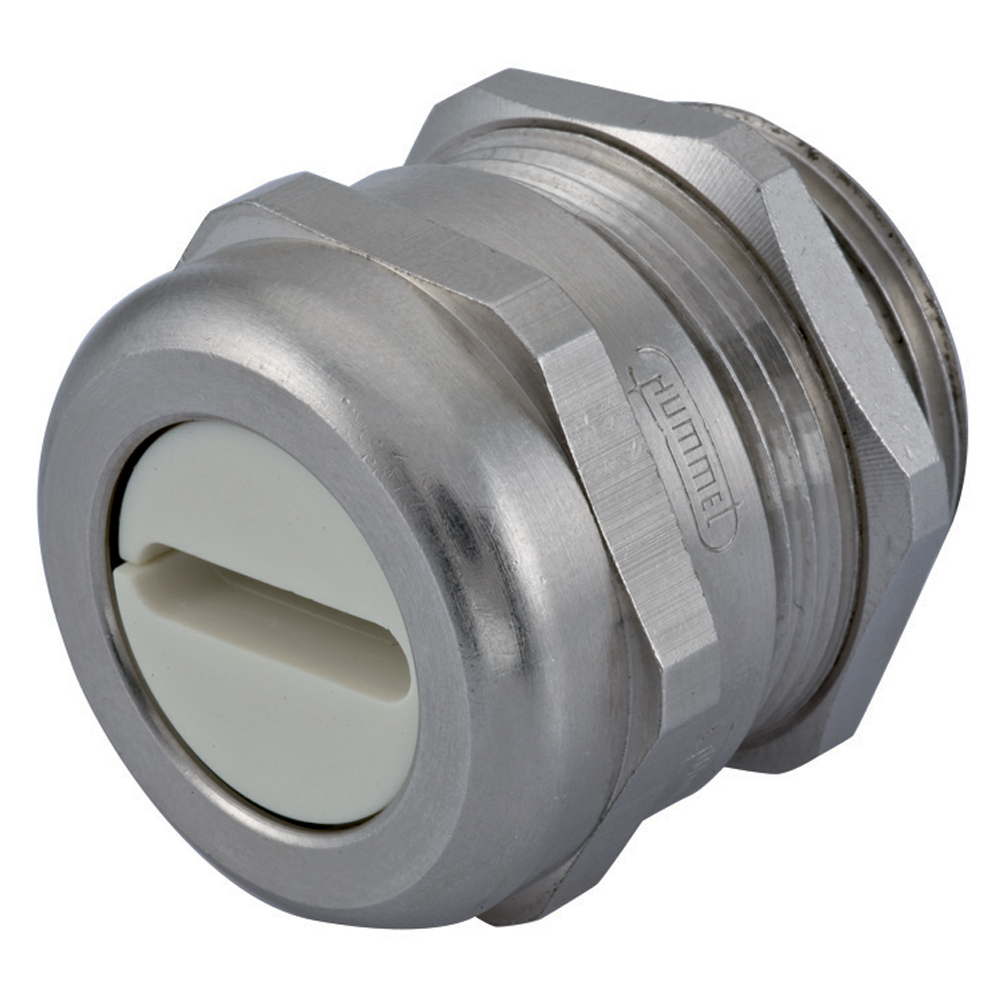

Sealcon #: CD36AS-B4
Color: Nickel
Material: Nickel Plated Brass
Hummel: HSK-M-FLAKA
Hummel #: 1.688.3603.01
Slot Size: .3″ x 1.22″ (7.5 x 31 mm)
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Body Length (B) | 1.38" (35 mm) |
|---|---|
| Thread Length (D) | 0.31" (8 mm) |
| Wrench Flat (F1) | 1.97" (50 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page-
Features
- Liquid Tight – Submersible to 300 ft. – Type Nema 4x & 6 (IP68 / IP 69 K)
- Highest Pressure Rating – Patented form seal guarantees 150 psig (10 bar)
- Flame protected – V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE
This Nickel Plated Brass Strain Relief will provide your application with a product made of exceptional quality.
Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.
-
Pressure RatingMaterials
150 PSIG (10 BAR) Type Nema 4x & 6 (Submersible) - IP 68 / IP 69 K- Fittings: Nickel Plated Brass
- Form Seal: Elastomer
- Optional ORing: Buna-N
Operating Temperature
-40C° to 100C° (-40°F to 212°F)- Stainless Steel available upon request
- Elongated threads available upon request
- The shown inserts are samples, more inserts upon request
*Sizes 3/8" NPT, M12, M16, PG7, PG9, and PG11 and all Multi-Hole Fittings in Nylon and Nickel Plated Brass have UR (ONLY)
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
