Sealcon #: CD40M2-BR
Color: Nickel
Material: Nickel Plated Brass
Number of Holes: 7
Diameter of Holes: 0.35" (9 mm)
Insert Part Number: 1.089.3601.19
Hummel: HSK-K-Multi
Hummel #: 1697400150
Locking Nut Sold Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Body Length (B) | 1.46" (37 mm) |
|---|---|
| Thread Length (D) | 0.31" (8 mm) |
| Wrench Flat (F1) | 1.97" (50 mm) |
PDF DOWNLOADS
Catalog Page-
Features
- Flame protected – V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE

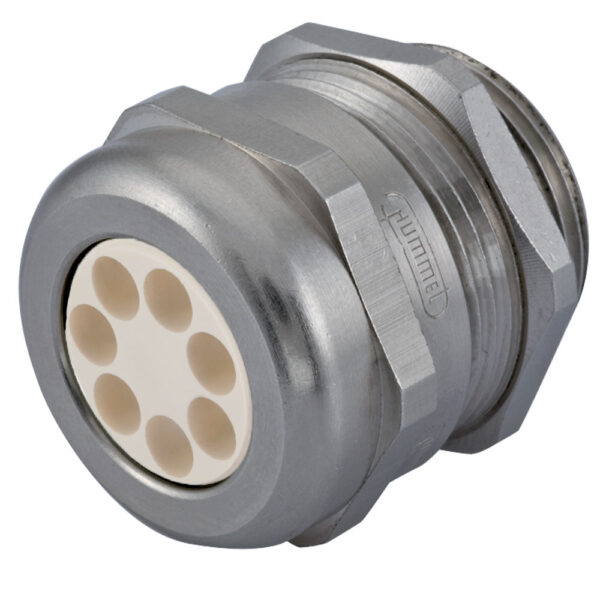

This Nickel Plated Brass Liquid Tight Strain Relief Fitting with Multi-Hole Insert will provide your application with a product made of exceptional quality. ection of your cable without damaging it.
Kinking and chafing of the cable is eliminated with use of the Flex Nut.
-
Pressure RatingMaterials
IP 65 / IP 68 10 bar possible with ideal fit- Fittings: Nickel Plated Brass
- Form Seal: Elastomer
- Optional ORing: Buna-N, FPM or Silicone
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
Operating Temperature
-40C° to 100C° (-40°F to 212°F)
CE approval CE (Certified European Approval)
CSA approval CSA (Canadian Standard Association)
German Lloyd
PCT Approval
UR (Recognized Underwriters Laboratories)
