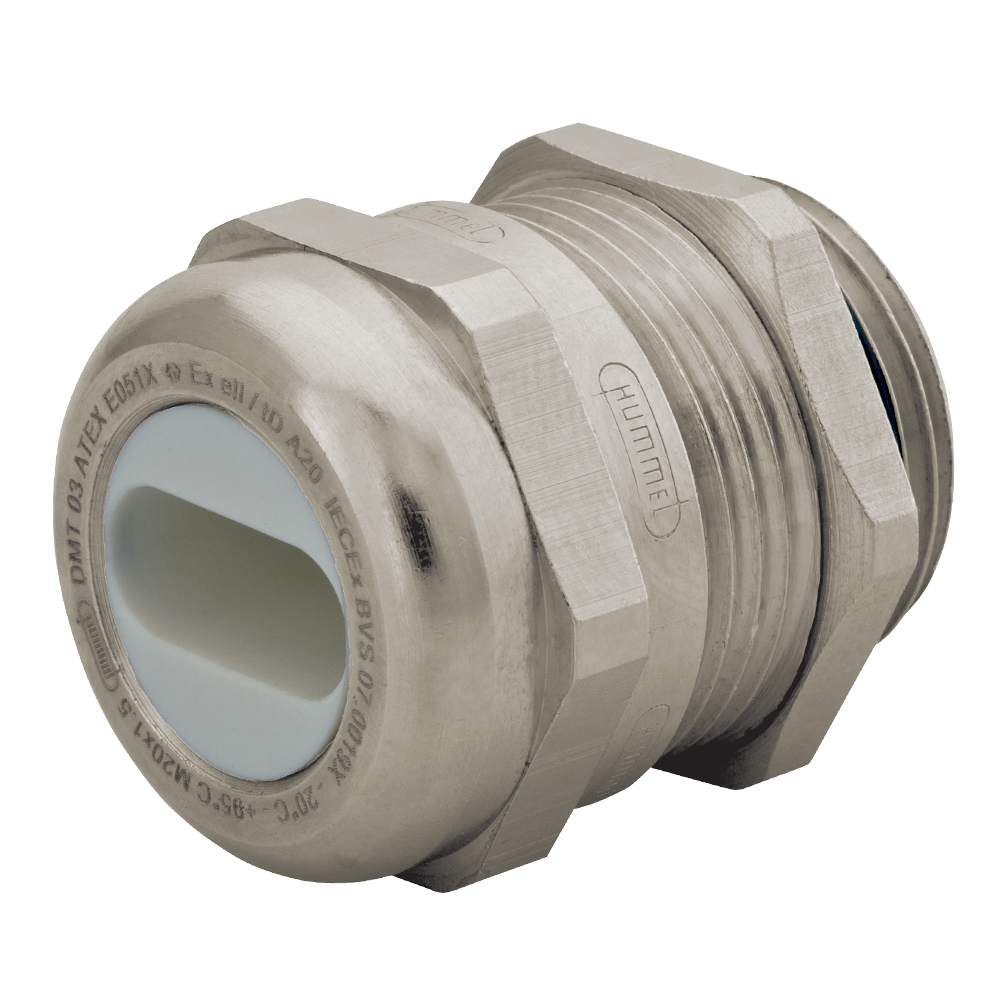

Sealcon #: CD40MS-EB1
Cable Range: 0.39" - 1.12" (10 to 28.5 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel: HSK-M-FLAKA-Ex
Hummel #: 1.689.4000.50
Locking Nut Sold Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A) | 1.57" (40 mm) |
---|---|
Body Length (B) | 1.46" (37 mm) |
Thread Length (D) | 0.31" (8 mm) |
Wrench Flat (F1) | 1.97" (50 mm) |
PDF DOWNLOADS
Catalog Page-
MaterialsOperating TemperaturePressure Rating:
-20C° to 95C° (-4°F to 203°F)
70 PSIG (5 BAR) Type NEMA 4x & 6 (Submersible) - IP 65 / IP 69 K
Note: We recommend a customer performing his/her own testing if IP 68 wants to be achieved.
* Sizes 3/8″ NPT, M12, M16, PG7, PG9, and PG11 and all Multi-Hole Fittings in Nylon and Nickel Plated Brass have UR (ONLY)
