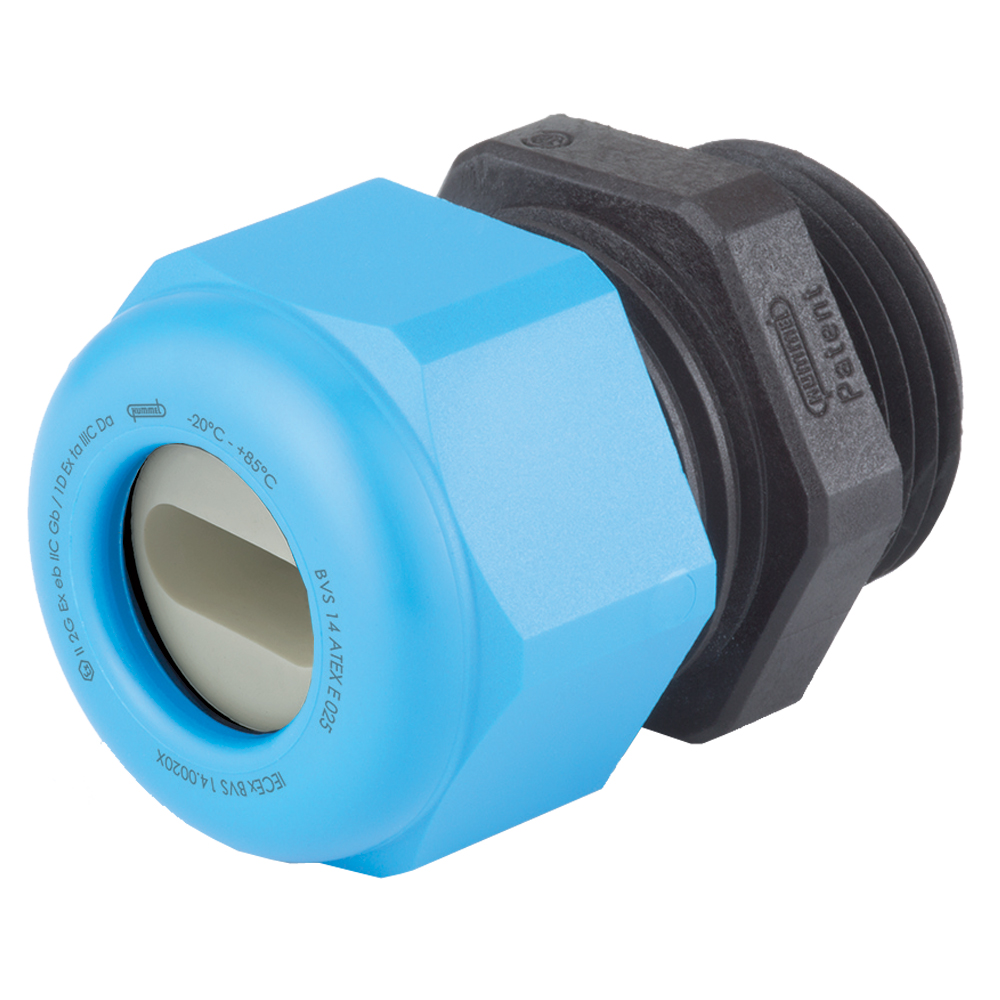

Sealcon #: CD40MS22-BXI
Color: Blue
Material: Fiberglass reinforced polyamide
Hummel: HSK-K-FLAKA-Ex-Active
Hummel #: 1.582.4002.52
Locking Nut Sold Separately. Flat cable gland made of polyamide.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Body Length (B) | 1.89" (48 mm) |
---|---|
Thread Length (D) | 0.51" (13 mm) |
Wrench Flat (F1) | 2.09" (53 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Assembly Instructions-
Features
- Flame protected – V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Safety – Ratchet to prevent Dome from coming loose under vibration
- Large Selection – Cable Range from .08" (2mm) to 1.38" (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE
The HSK-K-FLAKA-Ex-Active has been developed to meet the stringent requirements of EN 60079-0 , 60079-7 and 60079-31. IECEx Certificate of Conformity: IECEx BVS 14.0020X. This non-metallic solution for non-armored cables is designed for applications in electrical equipment and potentially explosive atmospheres.
Machine, apparatus and plant equipment
Measuring control and feedback systems
Potentially Explosive Atmospheres
Electrical Equipment
Industrial installations
and in all installations where excellent performance, fire resistance and no twisting or torquing of the cable are critical.
-
Pressure RatingMaterials
IP 68 with O-Ring- Fittings: Fiberglass reinforced polyamid
- Form Seal: Elastomer
- Optional ORing: FKM or Silicone
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
Operating Temperature
-20C° to 85C° (-4°F to 185°F)Available ColorsPressure Rating:(10 BAR) IP 68
Black or Blue/Black
Materials: Seal/O-Ring: NBR
* Sizes: M12 to M63 and NPT 3/8 to NPT 1-1/2Available Colors: Black
High Impact Resistance: 7 Joule
Zones: 1,2,20,21,22
DIN EN: 60079-0: 2012
