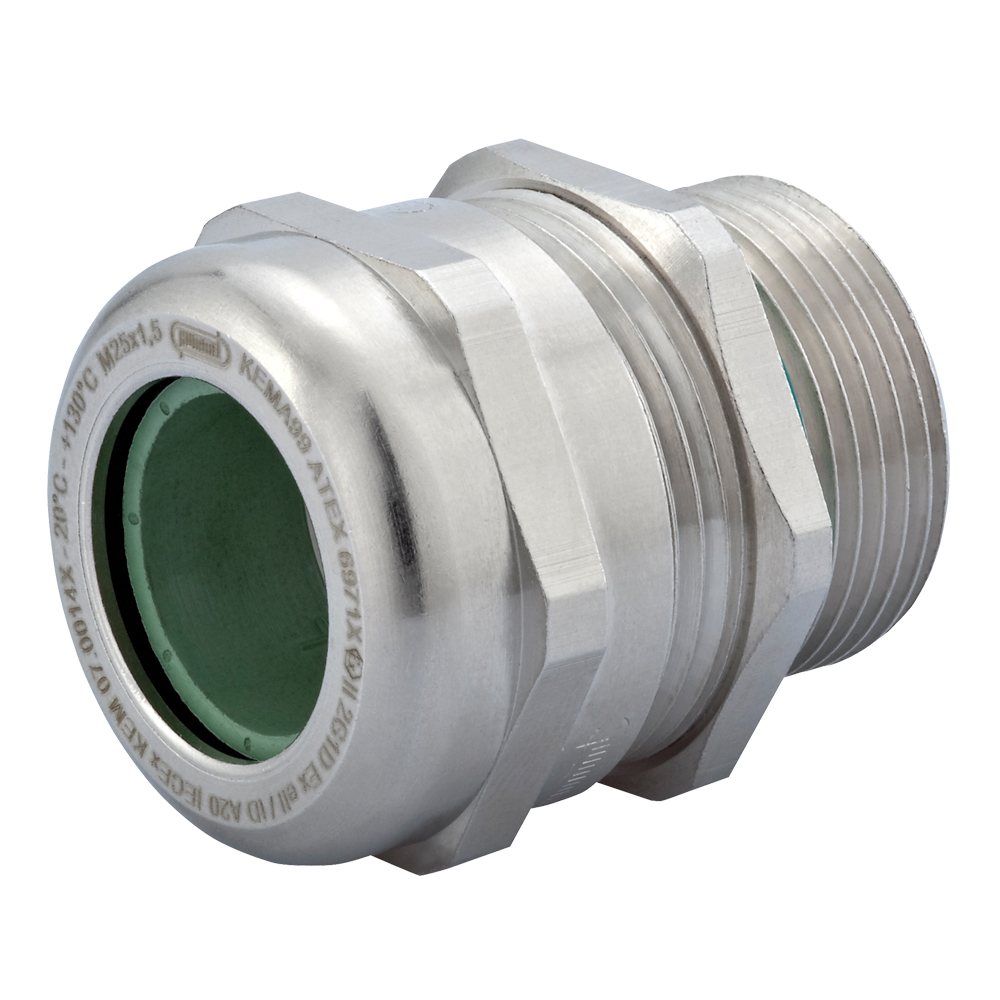

Sealcon #: CD42CR-RX
Cable Range: 0.98" - 1.22" (25 to 31 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel: HSK-M-PVDF-Ex
Hummel #: 1.660.4200.61
Cable gland made of nickel plated brass for chemical and high temperature applications.
Locking Nut Sold Separately.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 2.13" (54.1 mm) |
|---|---|
| Body Length (B) | 1.46" (37 mm) |
| Thread Length (D) | 0.59" (15 mm) |
| Wrench Flat (F1) | 2.24" (57 mm) |
| Wrench Flat (F) | 2.24" (57 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page-
MaterialsOperating Temperature
-20C° to 130C° (-4°F to 266°F)
