Sealcon #: CD48AR-RX
Cable Range: 1.14" - 1.38" (29 to 35 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel: HSK-M-EMV-Ex
Hummel #: 1.660.4800.15
with FKM Insert, FKM O-Ring.

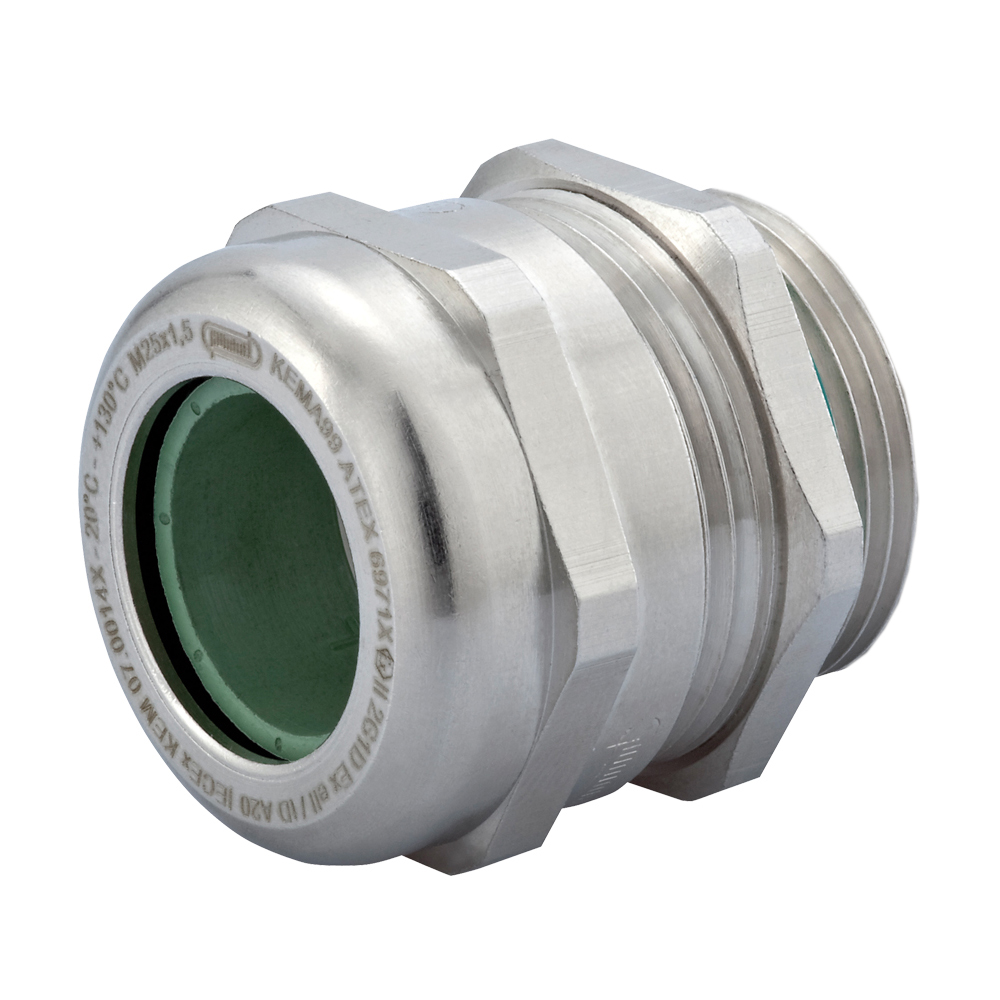

Cable gland made of nickel plated brass for chemical and high temperature applications.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 2.34" (59.4 mm) |
|---|---|
| Body Length (B) | 1.5" (38 mm) |
| Thread Length (D) | 0.39" (10 mm) |
| Wrench Flat (F1) | 2.52" (64 mm) |
| Wrench Flat (F) | 2.52" (64 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page-
Features
- Flame protected – V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE
This Nickel Plated Brass Liquid Tight Strain Relief Fitting with FKM Insert will provide your application with a product made of exceptional quality.
The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.
Kinking and chafing of the cable is eliminated with use of the Flex Nut.
-
Pressure RatingMaterials
IP 65 / IP 68 10 bar possible with ideal fit- Fittings: Nickel Plated Brass
Restriction of Hazardous Substances in Electrical and Electronic Equipment
ATEX - ATmosphere Explosible
CE approval CE (Certified European Approval)
UL approval UL (Listed Underwriters Laboratories)
IECEx
