Sealcon #: CD50MA-ME
Cable Range: 1.26" - 1.5" (32 to 38 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel: HSK-MZ-EMV
Hummel #: 1.692.5000.50
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 1.97" (50 mm) |
|---|---|
| Body Length (B) | 2.01" (51 mm) |
| Thread Length (D) | 0.35" (9 mm) |
| Wrench Flat (F1) | 2.24" (57 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page-
Features
- Liquid Tight – Submersible to 300 ft. – Type Nema 4x & 6 (IP68 / IP 69 K)
- Highest Pressure Rating – Patented form seal guarantees 150 psig (10 bar)
- Flame protected – V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE

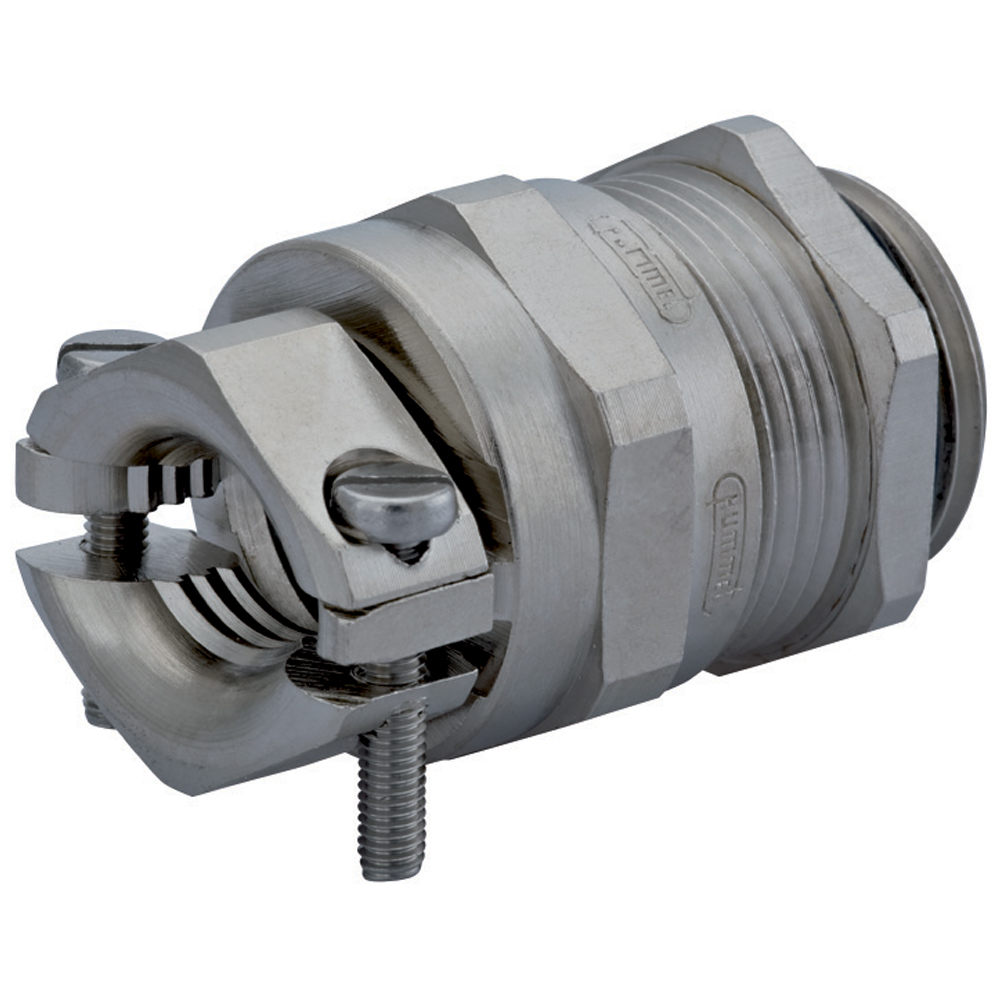

This EMI/RFI Proof Nickel Plated Brass Strain Relief with clamp and M50 x 1.5 Thread will provide your application with a product made of exceptional quality.
-
Pressure RatingMaterials
150 PSIG (10 BAR) Type Nema 4x & 6 (Submersible) - IP 68 / IP 69 K- Fittings: Nickel Plated Brass
- Form Seal: Buna-N
- Optional ORing: Buna-N, FPM or Silicone
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
Operating Temperature
-40C° to 100C° (-40°F to 212°F)
CE approval CE (Certified European Approval)
CSA approval CSA (Canadian Standard Association)
German Lloyd
PCT Approval
UL approval UL (Listed Underwriters Laboratories)
UR (Recognized Underwriters Laboratories)
VDE approval VDE (Association of German Electrical Engineers)
