Sealcon #: CD50MR-EZ
Cable Range: 0.98" - 1.22" (25 to 31 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel: HSK-MZ-Ex
Hummel #: 1.611.5000.51
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 1.97" (50 mm) |
|---|---|
| Body Length (B) | 2.01" (51 mm) |
| Thread Length (D) | 0.35" (9 mm) |
| Wrench Flat (F1) | 2.24" (57 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page-
Features
- Liquid Tight – Submersible to 300 ft. – Type Nema 4x & 6 (IP68 / IP 69 K)
- Highest Pressure Rating – Patented form seal guarantees 150 psig (10 bar)
- Flame protected – V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE

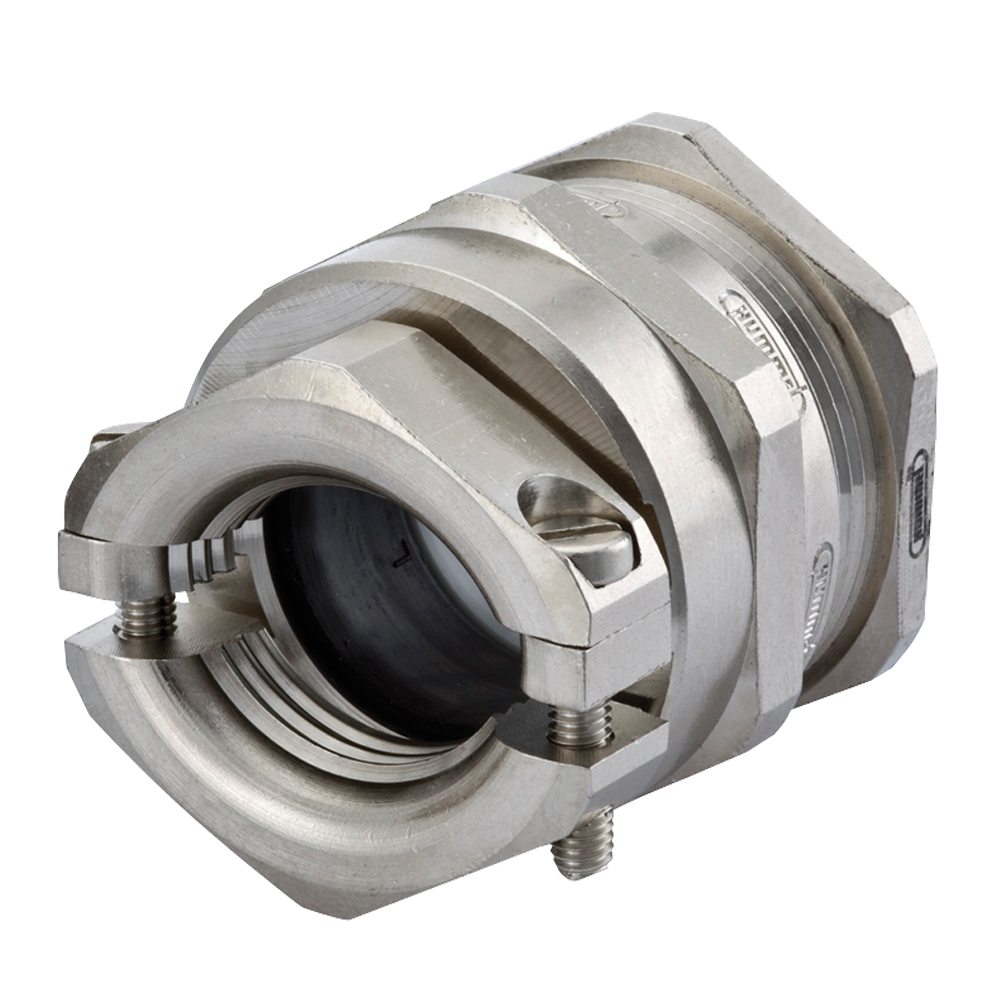

This Nickel Plated Brass Strain Relief with M50 x 1.5 Thread will provide your application with a product made of exceptional quality.
-
Pressure RatingMaterials
150 PSIG (10 BAR) Type Nema 4x & 6 (Submersible) - IP 68 / IP 69 K- Fittings: Nickel Plated Brass
- Form Seal: Buna-N
- Optional ORing: Buna-N, FPM or Silicone
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
Operating Temperature
-20C° to 95C° (-4°F to 203°F) APPROVALS
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
cULus
UL approval UL (Listed Underwriters Laboratories)
CSA approval CSA (Canadian Standard Association)
EAC
UR (Recognized Underwriters Laboratories)
CE approval CE (Certified European Approval)
German Lloyd
VDE approval VDE (Association of German Electrical Engineers)
