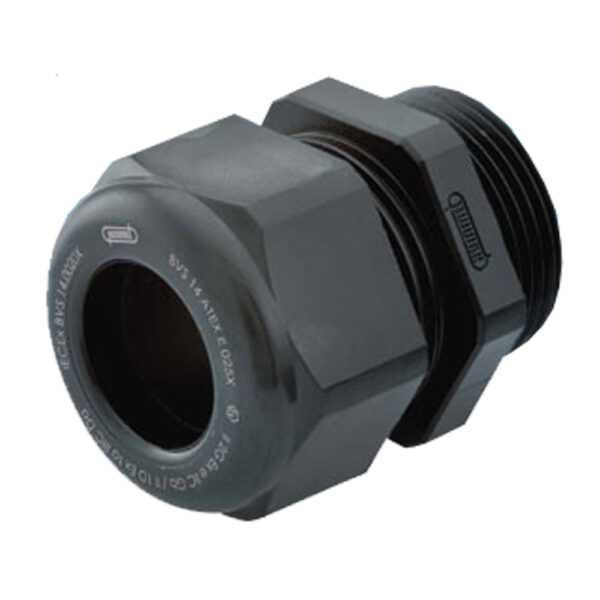

Sealcon #: CD63DR-BXA
Cable Range: 1.14" - 1.38" (29 to 35 mm)
Color: Black
Material: Fiber Reinforced Nylon
Hummel: HSK-K-Ex-Active
Hummel #: 1.292.6301.31
Locking Nut Sold Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 2.48" (63 mm) |
|---|---|
| Body Length (B) | 1.93" (49 mm) |
| Thread Length (D) | 0.71" (18 mm) |
| Wrench Flat (F1) | 2.56" (65 mm) |
| Wrench Flat (F) | 2.68" (68 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Assembly Instructions-
Features
The HSK-K-Ex-Active has been developed to meet the stringent requirements of EN 60079-0 : 2012. IECEx Certificate of Conformity: IECEx BVS 14.0020X. This non-metallic solution for non-armored cables is designed for applications in electrical equipment and potentially explosive atmospheres.
- Machine, apparatus and plant equipment
- Measuring control and feedback systems
- Potentially Explosive Atmospheres
- Electrical Equipment
- Industrial installations
and in all installations where excellent performance, fire resistance and no twisting or torquing of the cable are critical. -
MaterialsOperating TemperaturePressure Rating: 150 PSIG (10 BAR) Type Nema 6 - IP 68
-20C° to 85C° (-4°F to 185°F)
Materials: Fittings: Fibreglass reinforced polyamide V0 according to UL 94 Seal/O-Ring: NBR
* Sizes: M12 to M63 and NPT 3/8 to NPT 1-1/2 Available Colors: Black
High Impact Resistance: 7 Joule
Latest ATEX/IECEx & CSA Standards
150 PSIG (10 bar) liquid tight rating
Concentric O-Ring Groove
UL f1 (746C) UV/Ozone Stable
RoHS & Deca BDE Compliant
