Sealcon #: CF09AP-GY
Color: Gray
Material: Nylon
Number of Holes: Solid Plug
Diameter of Holes: Solid Plug" (Solid Plug)
Insert Part Number: 1.089.0999.19
Hummel: HSK-K-Flex
Hummel #: * Custom
Locking Nut & O-Ring Sold Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Body Length (B) | 0.87" (22 mm) |
|---|---|
| Thread Length (D) | 0.24" (6 mm) |
| Wrench Flat (F1) | 1.3" (33 mm) |
PDF DOWNLOADS
Catalog Page-
Features
- Flame protected – V0 Rated according to UL 94Halogen- and Phosphorous free materials
- Safety – Ratchet to prevent Dome from coming loose under vibration
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE

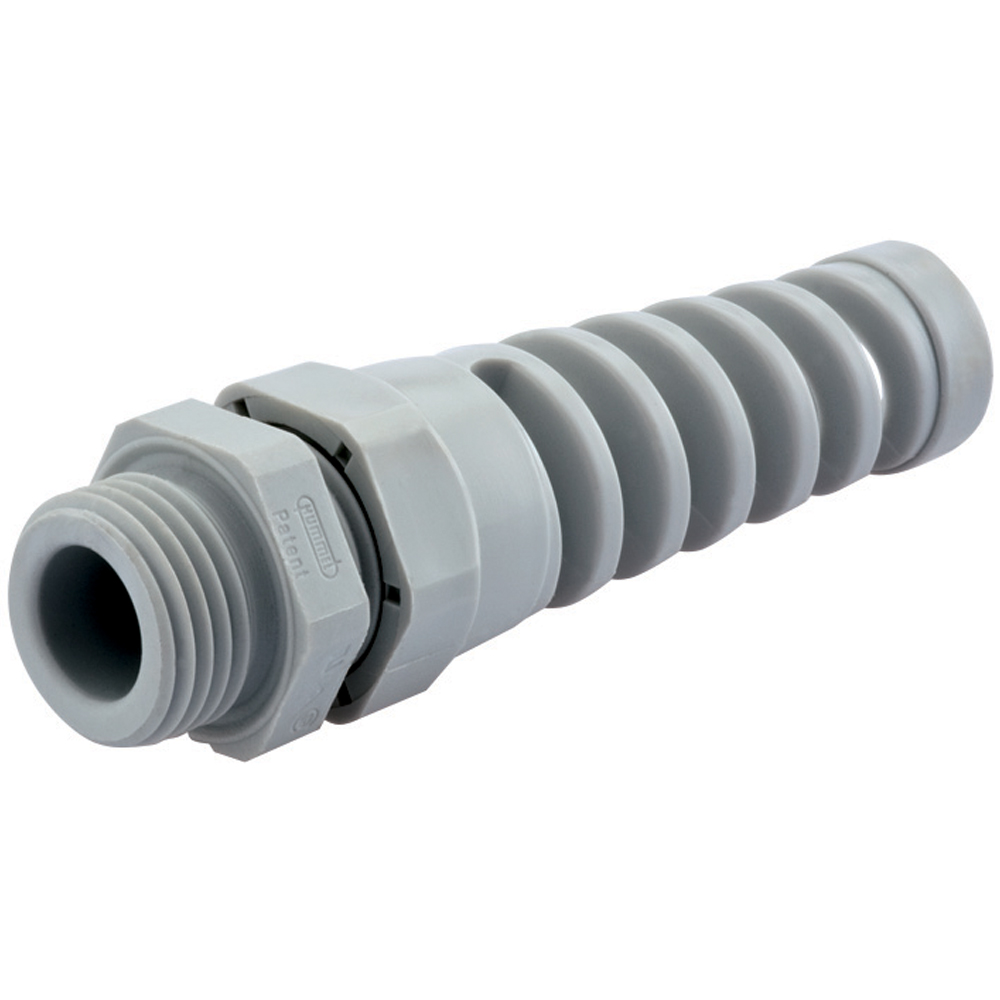

This Nylon Strain Relief (Cable Gland) with PG 9 Thread will provide your application with a product made of exceptional quality
The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.
-
Materials
- Fittings: Nylon 6/6
- Optional ORing: Buna-N, FPM or Silicone
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
Operating Temperature
-40C° to 100C° (-40°F to 212°F)Available Colors
Black (RAL 9005);Gray (RAL 7035)
Nylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant.
UL F1 UV Stable Rating for outdoor applications (Black Nylon version only).
All Multi-Hole Fittings in Nylon and Nickel Plated Brass have UR (ONLY)
