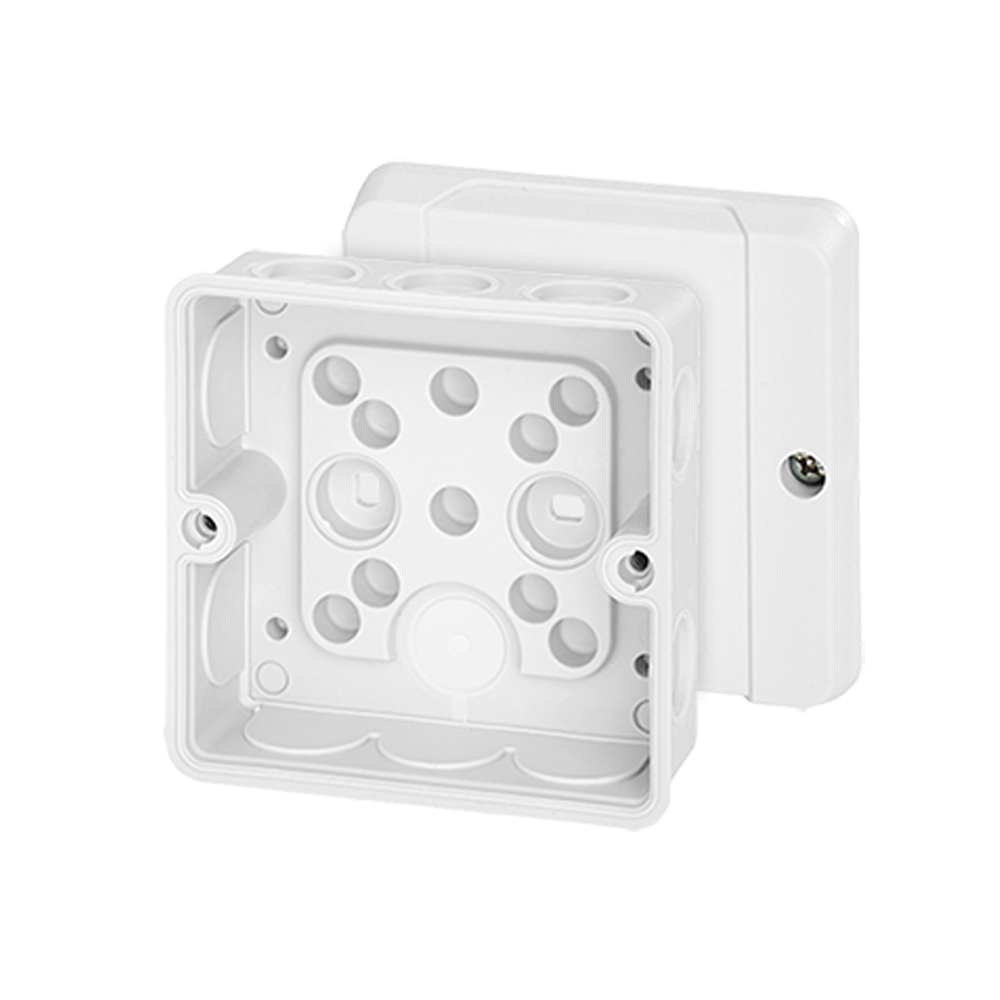

Sealcon #: DE9321
Size: DE ENYCASE
Material: DE 88 x 88 x 50 mm
Hensel #: DE 9321
Cover screws and mounting screws included.
Without terminals
11 elastic membranes, closed cable entries, sealing range Ø 6-16 mm
With one cable entry in the bottom, sealing range Ø 6-16 mm
With cable retention (2 pc.) for cable tie up to 6.5 mm width
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Material PP (polypropylene)
Degree of protection IP 55
Mounting width 59 mm
Mounting height 76 mm
Max. installation depth 33 mm
Width 88 mm
Height 88 mm
Depth 50 mm
Weight 0,098 kg
In accordance with IEC 60670-22ImpactFire Resistance
IK07 (2 Joule)
Glow wire test IEC 60695-2-11: 750 °C
VDE approval VDE (Association of German Electrical Engineers)
