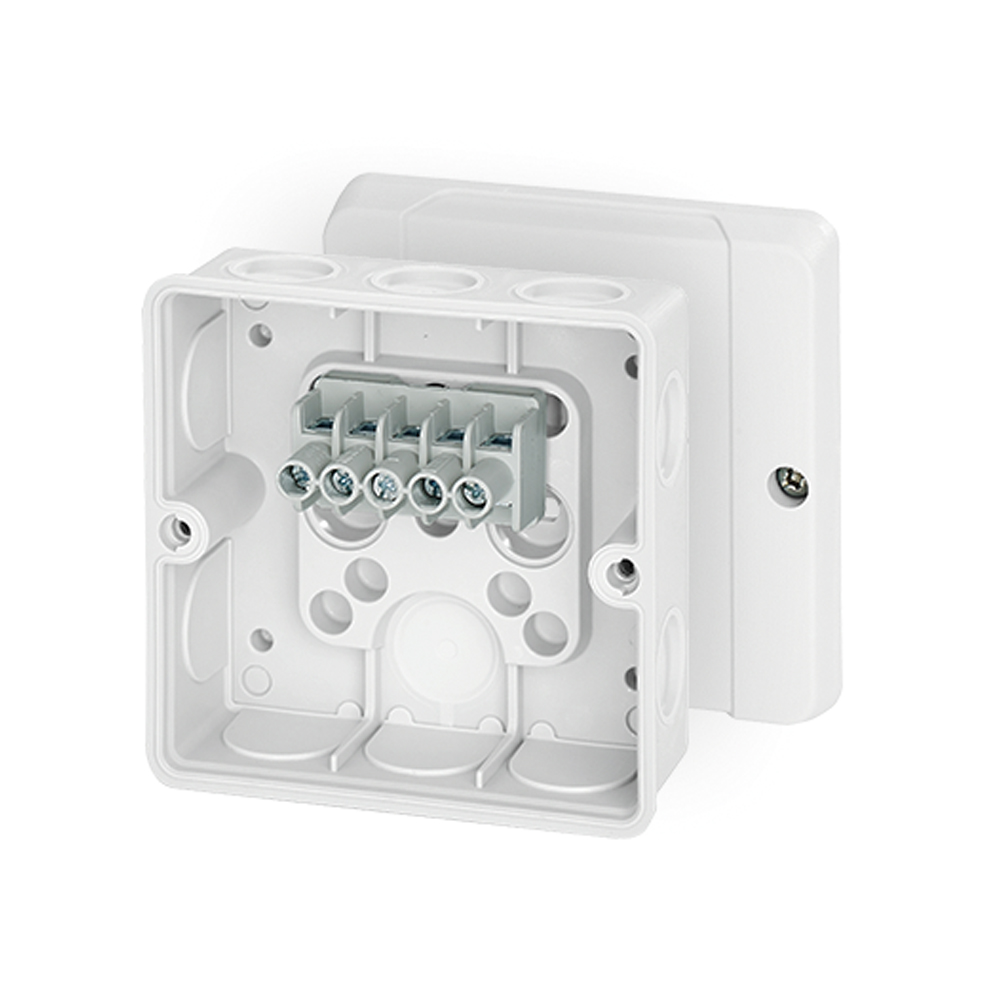

Sealcon #: DE9346
Size: DE ENYCASE
Material: DE 98 x 98 x 55 mm
Hensel #: DE 9346
Cover screws and mounting screws included.
1.5-4 mm², Cu 3~
With terminals
5-pole per pole 6 x 1.5 mm² sol, 4 x 2.5 mm² sol, 3 x 4 mm² sol, 2 x 6 mm² sol
11 elastic membranes, closed cable entries, sealing range Ø 6-18 mm
With one cable entry in the bottom, sealing range Ø 6-18 mm
With cable retention (2 pc.) for cable tie up to 6.5 mm width
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Material PP (polypropylene)
Degree of protection IP 55
Width 98 mm
Height 98 mm
Depth 55 mm
Weight 0,143 kg
Tightening torque for terminal 1.2 Nm
In accordance with IEC 60670-22ImpactFire Resistance
IK07 (2 Joule)
Glow wire test IEC 60695-2-11: 750 °C
VDE approval VDE (Association of German Electrical Engineers)
