Sealcon #: DK0200G

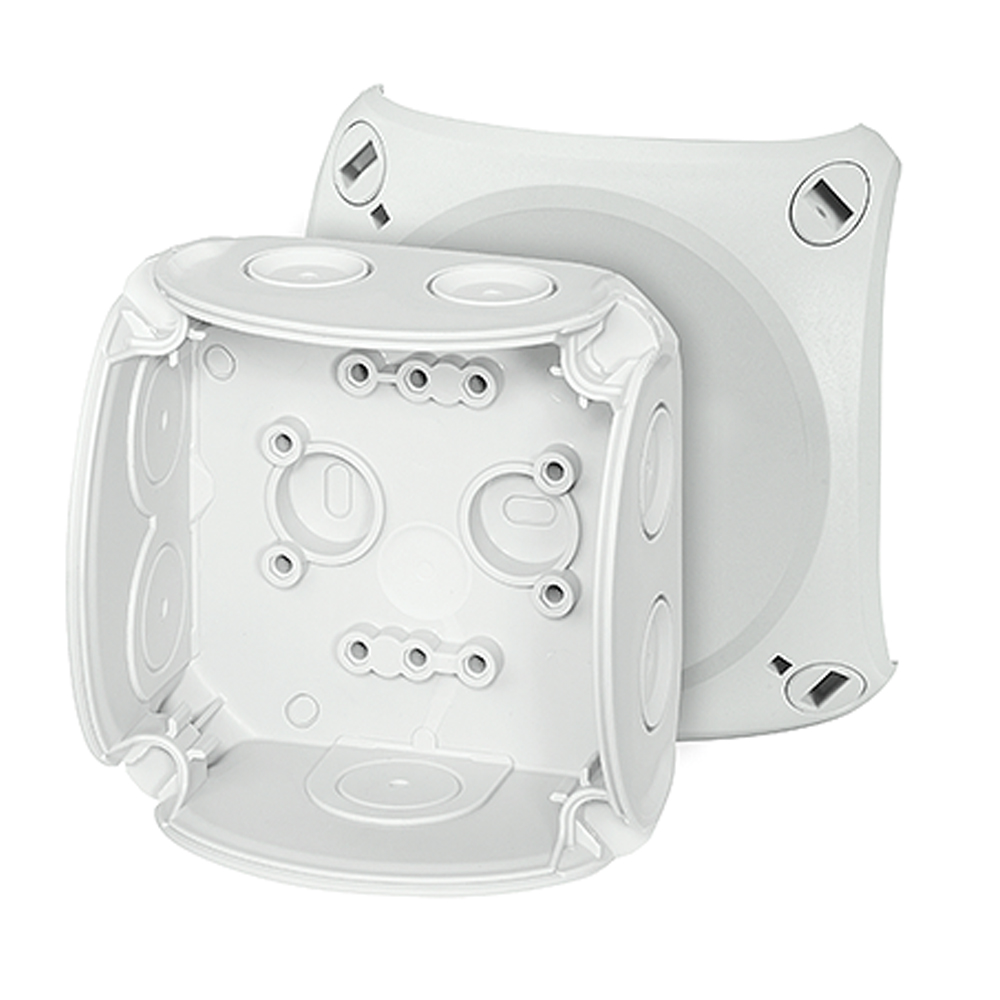

Size: DK ENYCASE G - without Terminals
Material: DK 93 x 93 x 62 mm
Hensel #: DK 0200 G
Cover screws and mounting screws included.
Without terminals
With integrated elastic membranes, which can be removed for cable entry via cable glands, sealing range 6.0-15.0 mm
With one cable entry in the bottom, sealing range Ø 6.0-13.0 mm
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
To close opened membranes use grommets type EDK.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

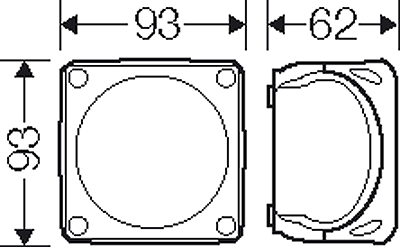

![](https://www.sealconusa.com/images/products/industrial-enclosure/hensel/drawings/DK0200G.gif)
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 1000 V a.c./d.c.
Material PP (polypropylene)
Degree of protection IP 66
Mounting width 74 mm
Mounting height 74 mm
Max. installation depth 47 mm
Width 93 mm
Height 93 mm
Depth 62 mm
Weight 0,102 kg
In accordance with IEC 60670-22ImpactFire Resistance
IK07 (2 Joule)
Glow wire test IEC 60695-2-11: 750° C
