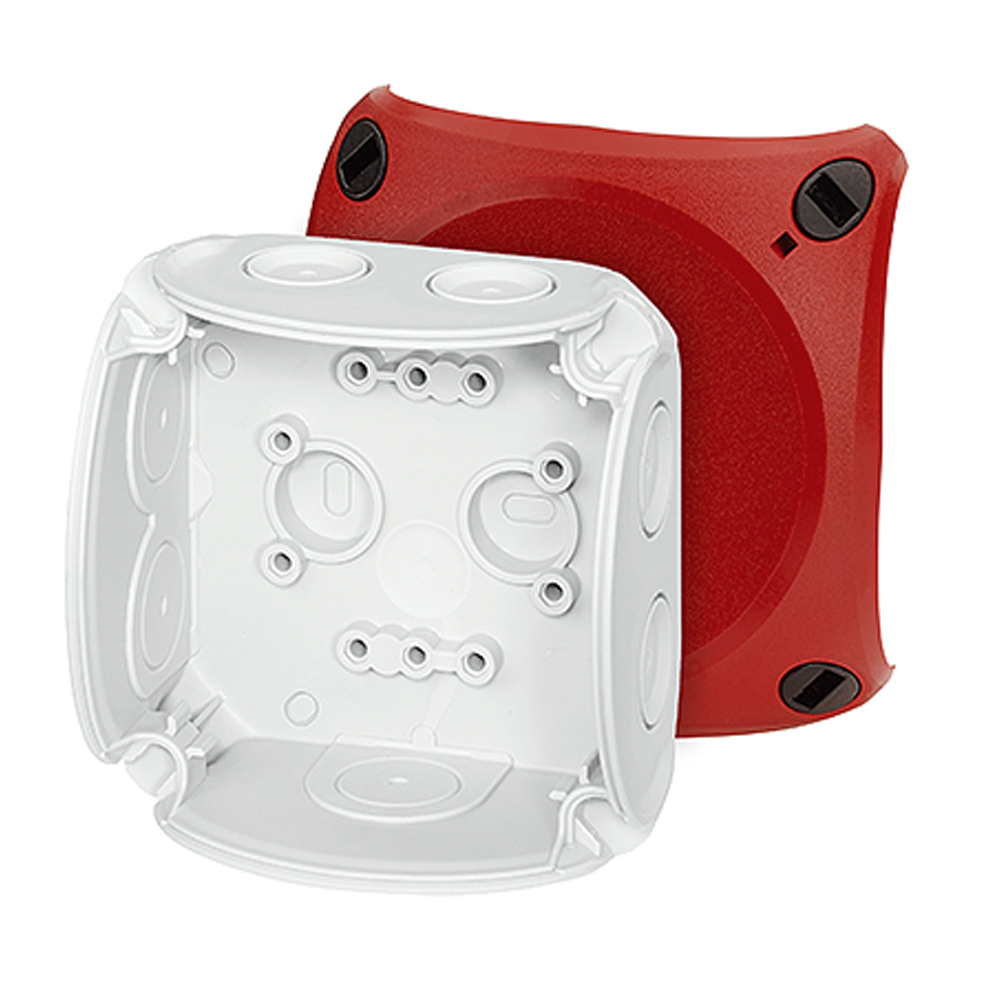

Sealcon #: DK0200R
Size: DK ENYCASE R
Material: DK 93 x 93 x 62 mm
Hensel #: DK 0200 R
Cover screws and mounting screws included.
Rated insulation voltage Ui = 1000 V a.c./d.c.
Material PP (polypropylene)
Degree of protection IP 66
Mounting width 74 mm
Mounting height 74 mm
Max. installation depth 47 mm
Width 93 mm
Height 93 mm
Depth 62 mm
Weight 0,104 kg
In accordance with IEC 60670-22
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

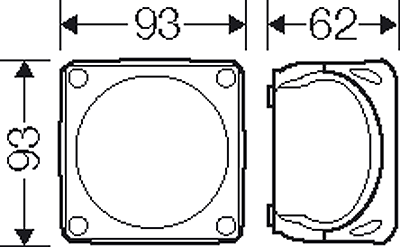

![](https://www.sealconusa.com/images/products/industrial-enclosure/hensel/drawings/DK0200R.gif)
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 1000 V a.c./d.c.
Material PP (polypropylene)
Degree of protection IP 66
Mounting width 74 mm
Mounting height 74 mm
Max. installation depth 47 mm
Width 93 mm
Height 93 mm
Depth 62 mm
Weight 0,104 kg
In accordance with IEC 60670-22ImpactFire Resistance
IK07 (2 Joule)
Glow wire test IEC 60695-2-11: 750° C
