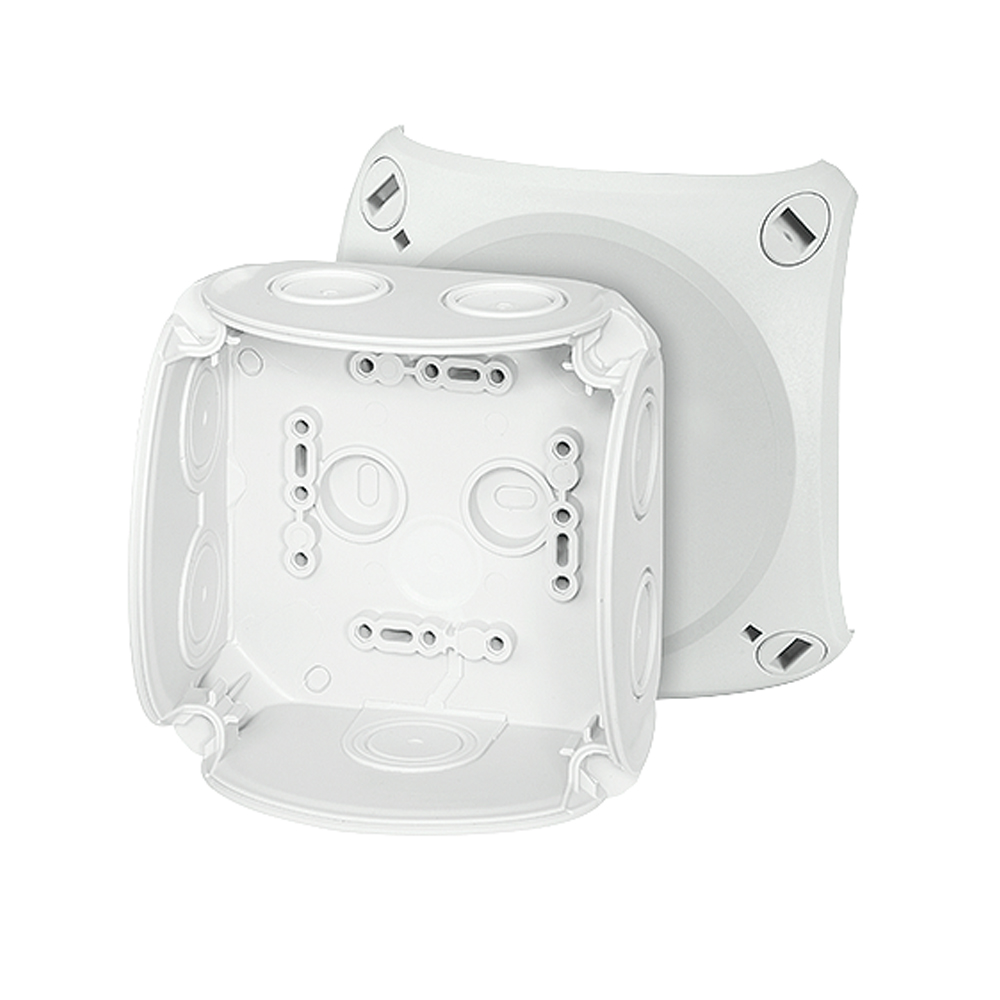

Sealcon #: DK0400G
Size: DK ENYCASE G - without Terminals
Material: DK 104 x 104 x 70 mm
Hensel #: DK 0400 G
Cover screws and mounting screws included.
Without terminals
With elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-17.0 mm
With one cable entry in the bottom, sealing range Ø 6.0-15.0 mm
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
To close opened membranes use grommets type EDK.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 1000 V a.c./d.c.
Material PP (polypropylene)
Mounting width 83 mm
Mounting height 83 mm
Max. installation depth 55 mm
Width 104 mm
Height 104 mm
Depth 70 mm
Weight 0,122 kg
In accordance with IEC 60670-22ImpactFire Resistance
IK07 (2 Joule)
Glow wire test IEC 60695-2-11: 750° C
VDE approval VDE (Association of German Electrical Engineers)
