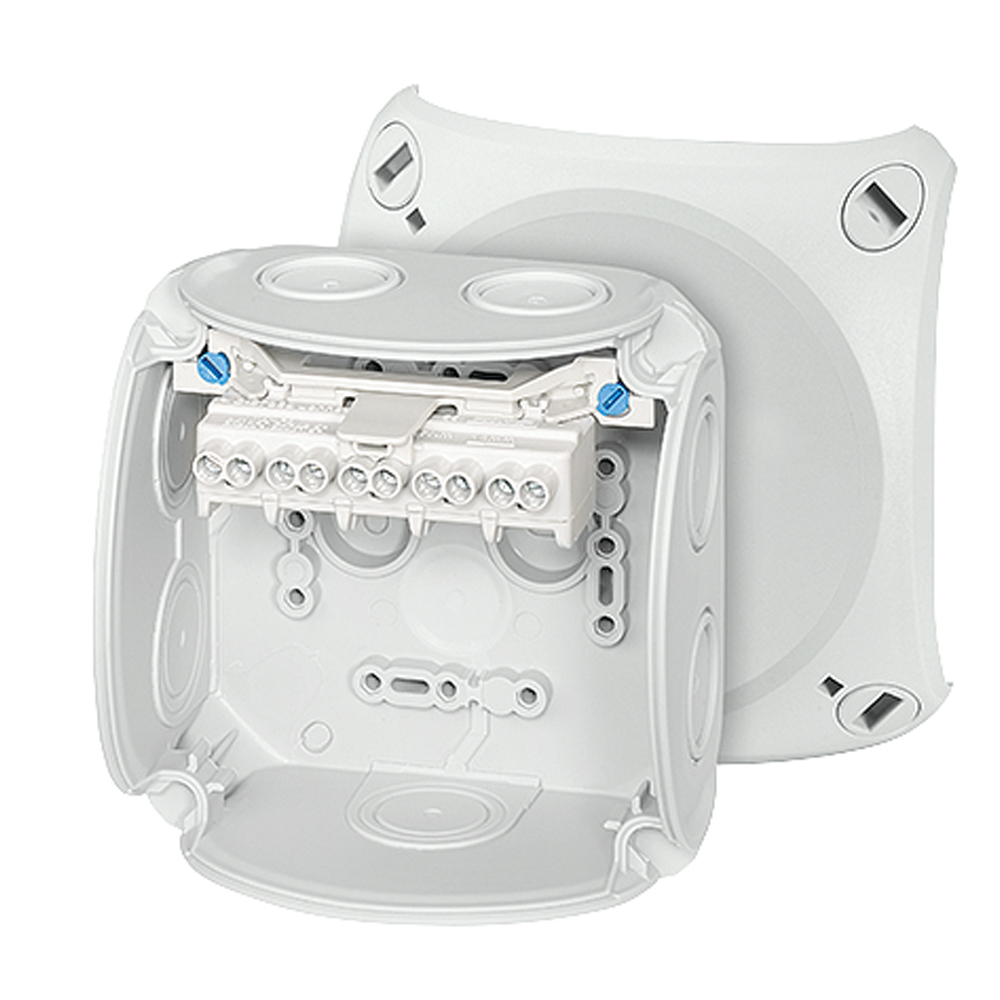

Sealcon #: DK0404G
Size: DK ENYCASE G
Material: DK 104 x 104 x 70 mm
Hensel #: DK 0404 G
Cover screws and mounting screws included.
1.5-4 mm², Cu 3~
Terminal with 2 clamping units per pole
5-pole per pole 8 x 1,5 mm² r / f, 6 x 2,5 mm² r / f, 4 x 4 mm² r / f, 2 x 6 mm² r / f
With elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-17.0 mm
With one cable entry in the bottom, sealing range Ø 6.0-15.0 mm
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Rated current: 32 A
Material PP (polypropylene)
Width 104 mm
Height 104 mm
Depth 70 mm
Weight 0,158 kg
Tightening torque for terminal 0.7 Nm
In accordance with IEC 60670-22
VDE approval VDE (Association of German Electrical Engineers)
