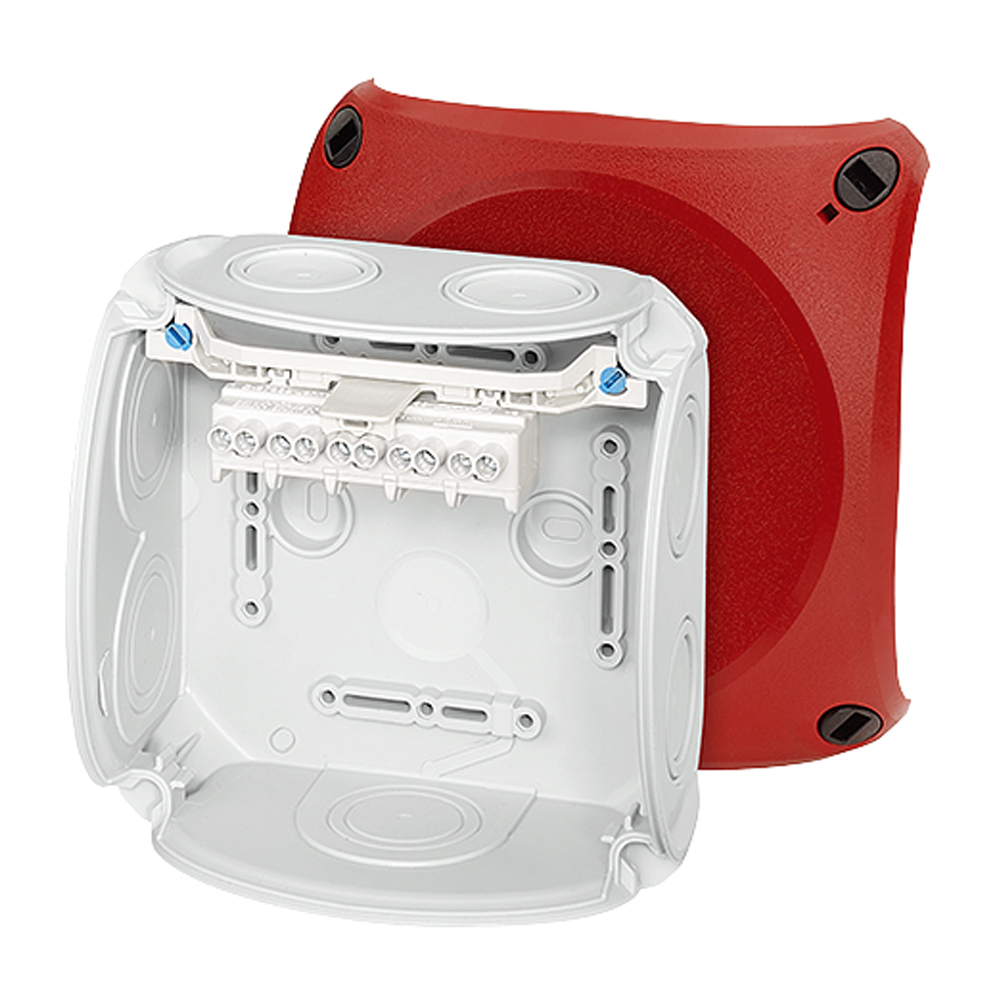

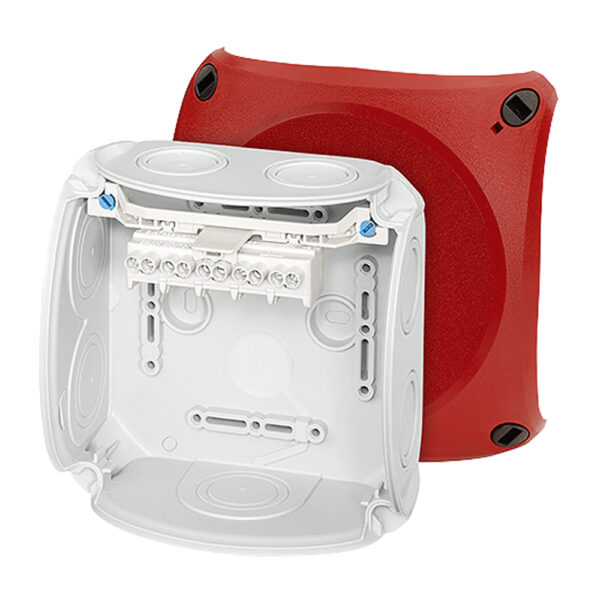

Sealcon #: DK0604R
Size: DK ENYCASE R
Material: DK 130 x 130 x 77 mm
Hensel #: DK 0604 R
Cover screws and mounting screws included.
1.5-4 mm², Cu 3~
Terminal with 2 clamping units per pole
5-pole per pole 8 x 1,5 mm² r / f, 6 x 2,5 mm² r / f, 4 x 4 mm² r / f, 2 x 6 mm² r / f
With red lid RAL 3000
For safety lighting circuits,
For equipotential bonding conductors
With elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-21.0 mm
With one cable entry in the bottom, sealing range Ø 9.0-20.0 mm
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
Color: grey, RAL 7035
To close opened membranes use grommets type EDK. Degree of protection = IP 66.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
![](https://www.sealconusa.com/images/products/industrial-enclosure/hensel/drawings/DK0604R.gif)
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Rated current: 32 A
Material PP (polypropylene)
Width 130 mm
Height 130 mm
Depth 77 mm
Weight 0,222 kg
Tightening torque for terminal 0.7 Nm
In accordance with IEC 60670-22ImpactFire Resistance
IK07 (2 Joule)
Glow wire test IEC 60695-2-11: 750° C
