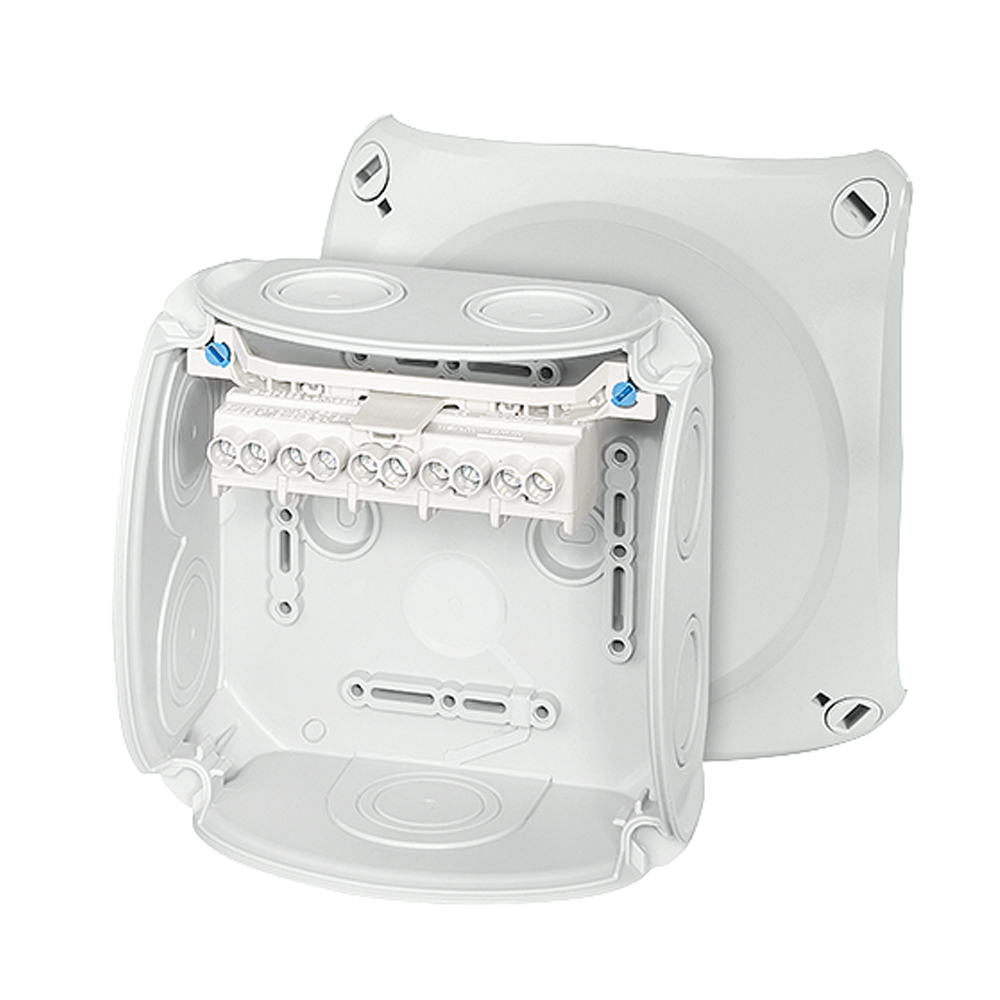

Sealcon #: DK0606G
Size: DK ENYCASE G
Material: DK 130 x 130 x 77 mm
Hensel #: DK 0606 G
Cover screws and mounting screws included.
1.5-6 mm², Cu 3~
Terminal with 2 clamping units per pole
5-pole per pole 6 x 1,5 mm² r / f, 4 x 2,5 mm² r / f, 4 x 4 mm² r / f, 4 x 6 mm² r / f, 2 x 10 mm² r / f
With elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-21.0 mm
With one cable entry in the bottom, sealing range Ø 9.0-20.0 mm
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
To close opened membranes use grommets type EDK.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Rated current: 40 A
Material PP (polypropylene)
Degree of protection IP 66
Width 130 mm
Height 130 mm
Depth 77 mm
Weight 0,243 kg
Tightening torque for terminal 1.5 Nm
In accordance with IEC 60670-22
VDE approval VDE (Association of German Electrical Engineers)
